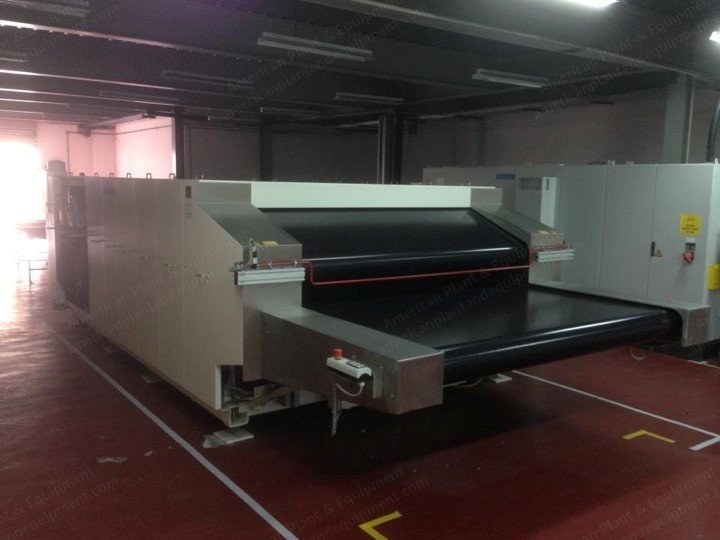

Herbert Meyer, KFK-X 2100, Flatbed Laminating Machine, 2000mm Max Width, Water Cooled

Herbert Meyer, KFK-X 2100, Flatbed Laminating Machine, 2000mm Max Width, Water Cooled

Description

  1. Overview
    1. Max width: 2000 mm
    2. Teflon belt
    3. Heated: electric
    4. Max temperature: 230 °C
    5. The gap is adjustable from 0 to 150 mm
  2. Conveyor Belt Dimensions
    1. Length of conveyor belt: upper conveyor 5210 mm, lower conveyor 6530 mm
    2. Length of heating system: 2300 mm
    3. Length of cooling system: 2300 mm
  3. Electrical Specifications
    1. Voltage: 415 V, 3 phase
    2. Frequency: 50 Hz
  4. Heating System
    1. Heating elements
    2. Number of zones: 3 in run direction, 3 in cross wise
    3. Total zones (top + bottom): 18
    4. Number of heater elements: 102
  5. Cooling System
    1. The system is water cooled
    2. Flow rate: 24 cubic meters per hour at 4 bar pressure
