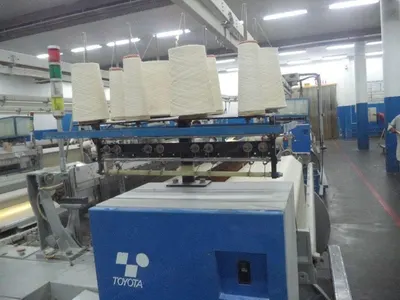

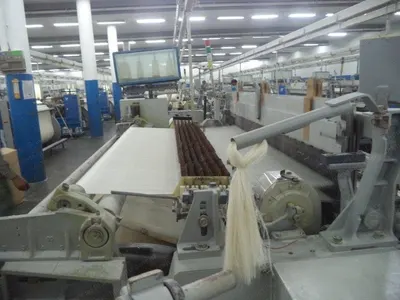

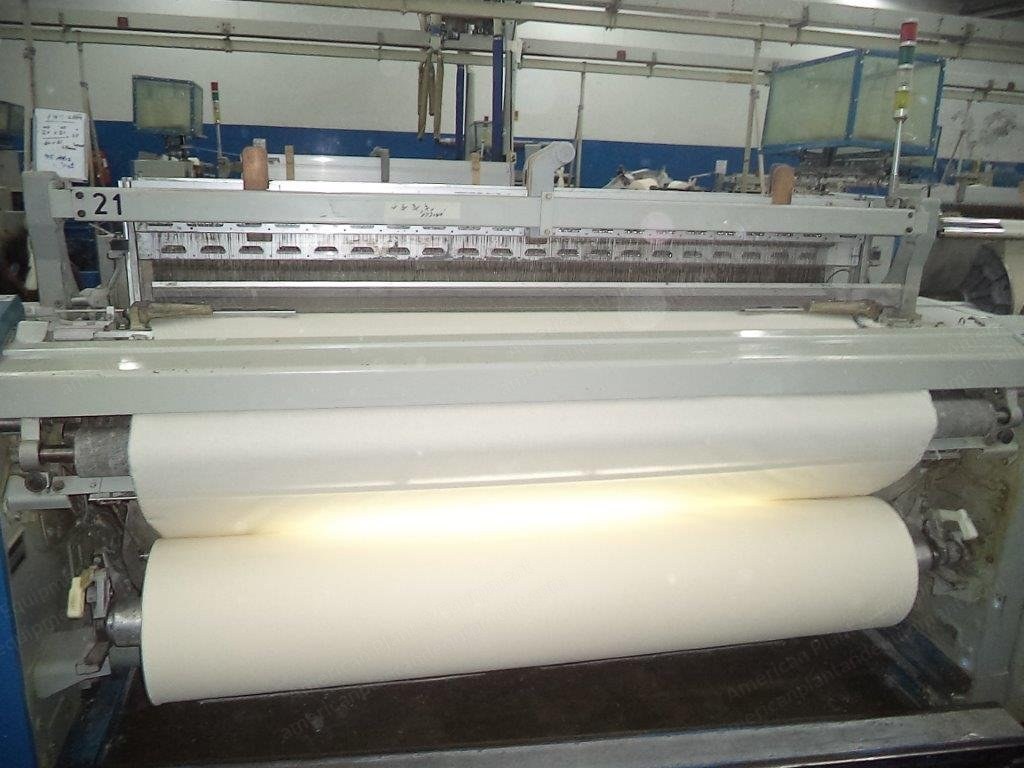

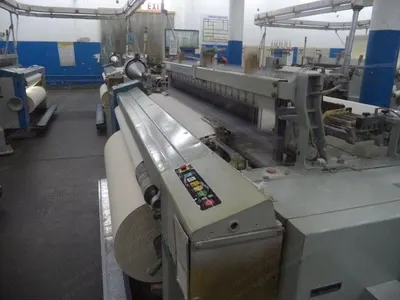

Toyoda, JA2S-190TP-T610, Air Jet Looms, 1900mm Reed Space, 2 Colors, Staubli 1620 Cam Motion

Toyoda, JA2S-190TP-T610, Air Jet Looms, 1900mm Reed Space, 2 Colors, Staubli 1620 Cam Motion

Description

  1. Overview

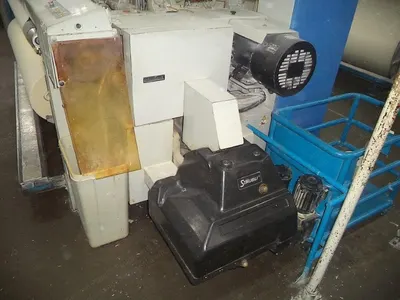

    1. Staubli positive tappet cam motion type 1620 cam box with 7 shaft
    2. 6 cams with 1 spacer for each loom
    3. 1 repeat gear for each loom
    4. Profile reed system reed space 1900mm, lower built one piece box type side frame for high speed operation
    5. Oil bath lubrication for main units
    6. Two sides crank drive beating with oil bath
  2. Drive And Motor

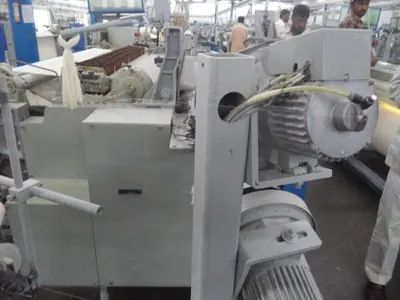

    1. High torque induction motor with solenoid break (4p-3phase 3.5kw)
  3. Control System
    1. Main control computer with 32 bytes cpu
    2. Distributed control system by optical fiber communication network

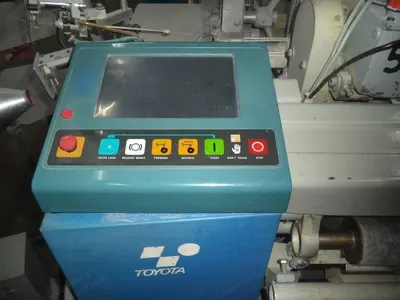

    3. Touch screen function panel with multi-window display
    4. Automatic initial condition – (ics) system
    5. Automatic fault alarm function
    6. Weekly efficiency graph display and down time cause display beam cloth estimator
  4. Nozzle And Air System

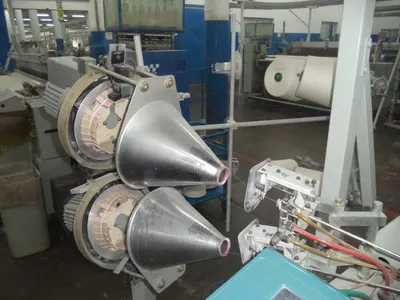

    1. 2 color mixing device by electric drum pole (edp)
    2. Tapered sub nozzle
    3. Low air pressure and high propulsive main nozzle
    4. Direct drive solenoid valve for main and sub nozzle
    5. Two independent sun nozzle tanks

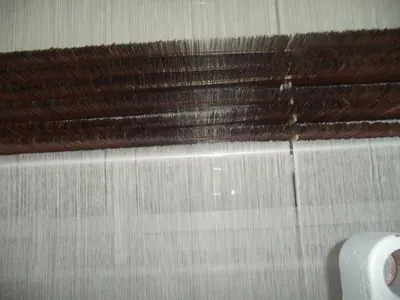

    6. Tapered tunnel reed
  5. Timing And Adjustment
    1. Automatic timing controller (atc)
    2. Automatic break system (abs)
    3. Timing checker with graph display on function panel
    4. Centralized regulator
    5. Electronic let off motion by digital ac servo motor
    6. Automatic let off adjustment
  6. Second Configuration
    1. Staubli positive tappet cam motion, type 1620 cam box with 7 shaft
    2. 6 cams with 1 spacer for each loom
    3. 1 repeat gear for each loom
    4. Profile reed system reed space 2800mm, lower built one piece box type side frame for high speed operation
    5. Oil bath lubrication for main unit
    6. Two sides crank drive beating with oil bath
    7. High torque induction motor with solenoid break (4p-3phase, 3.5kw)
    8. Main control computer with 32 bytes cup
    9. Distributed control system by optical fiber communication network
    10. Touch screen function panel with multi-window display
    11. Automatic initial condition – (ics) system
    12. Automatic fault alarm function
    13. Weekly efficiency graph display and down time cause display beam cloth estimator
    14. 2 color mixing device by electric drum pole (edp)
    15. Tapered sub nozzle
    16. Low air pressure and high propulsive main nozzle
    17. Direct drive solenoid valve for main and sub nozzle
    18. Two independent sub nozzle tanks
    19. Tapered tunnel reed
    20. Automatic timing control (atc)
    21. Automatic break system (abs)
    22. Timing checker with graph display on function panel
    23. Centralized regulator
    24. Electronic let off motion by digital ac servo motor
    25. Automatic leg off adjustment
