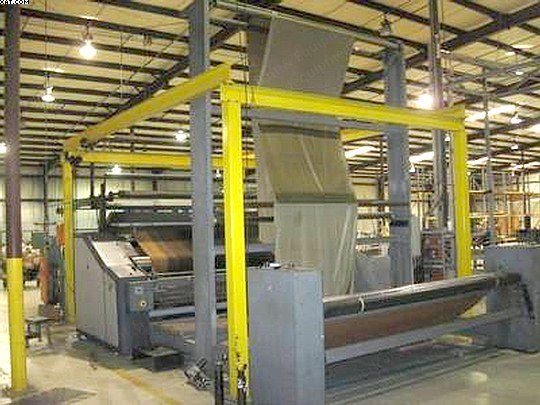

Klieverik, TC131, 1995, Laminating Calender, 126" Belt, 30" Drum Diameter, 2-20 m/min

Klieverik, TC131, 1995, Laminating Calender, 126" Belt, 30" Drum Diameter, 2-20 m/min

Description

  1. Overview
    1. Klieverik laminating calender
    2. Model: TC131
    3. Year: 1995
    4. 126" belt
    5. 30" diameter x 138" face cylinder with 126" blanket (nomex)
    6. This machine employs a vapor phase process to transfer dyestuff from the paper to the cloth under the influence of heat and pressure.
    7. The calender drum is heated by electrical elements placed in an oil bath.
  2. Specifications
    1. Operating speed: 2-20 meters/minute
    2. Max drum temperature: 220°C (464°F)
    3. Diameter of heated drum: 760mm (30.4")
    4. Blanket width: 3500mm (140")
    5. Diameter of transfer paper roll: 14"
    6. OAD of calender: 112.6" L x 182.4" W x 89" H
    7. Approx footprint: 28' L x 16' W
    8. Weight: 7,400kg (16,314 lbs)
  3. Included Components
    1. Onboard enclosed heating system
    2. Scray
    3. High entry with E&L KF-2040 guider
    4. Operator platform
    5. E&L width monitor
    6. 4-roll accumulator 136" with 12 yd capacity
    7. 2-roll surface take-up with edge guiding and yardage counters
  4. Condition
    1. Used industrial machine in operational condition
    1. Not specified
