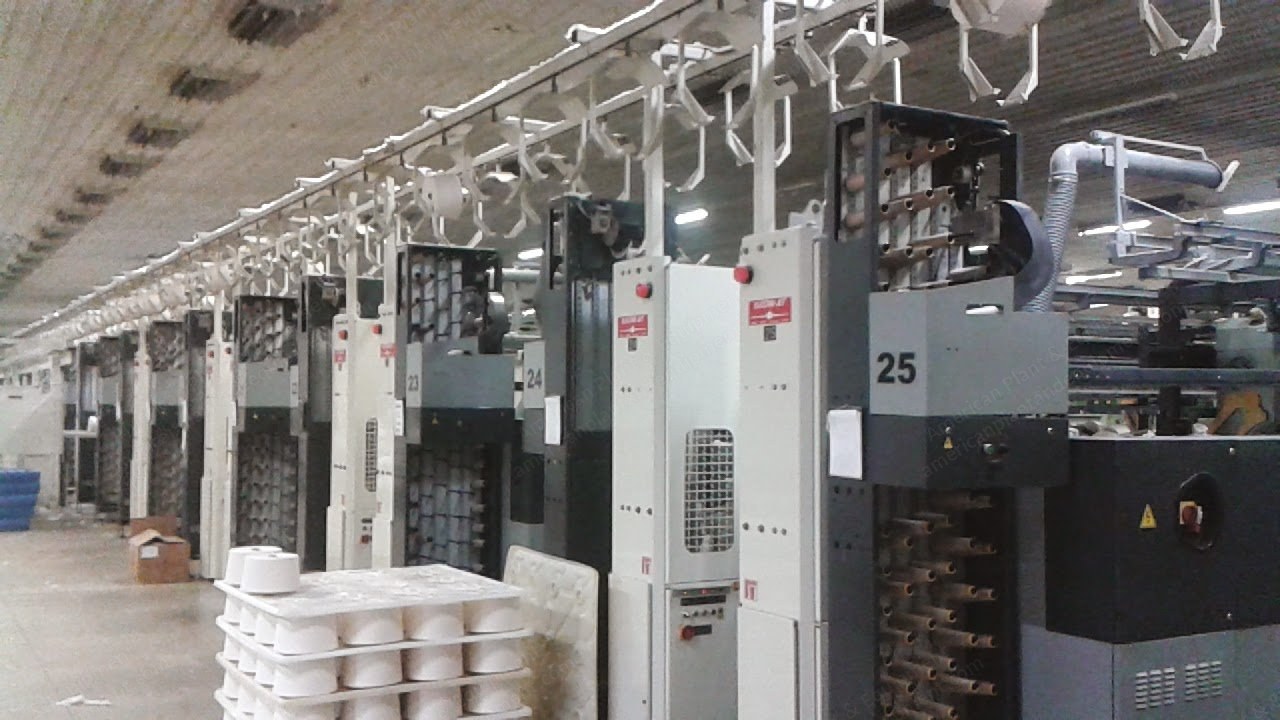

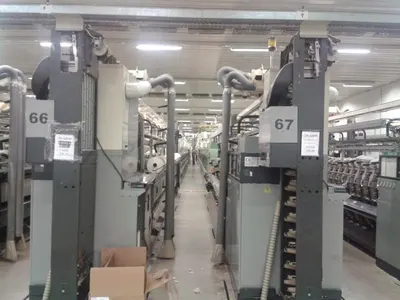

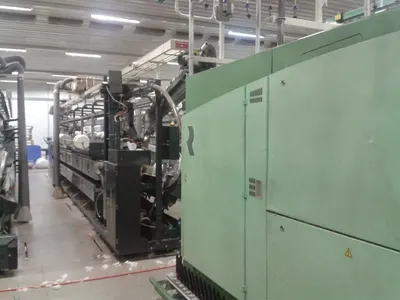

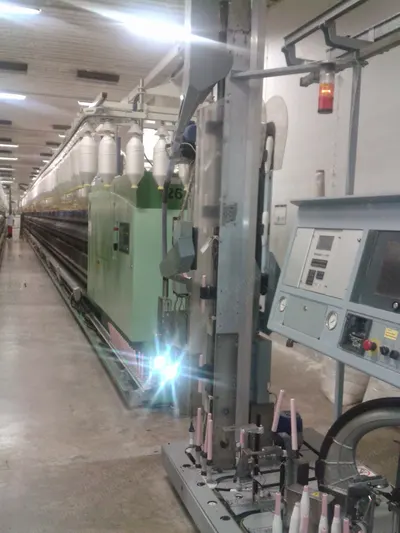

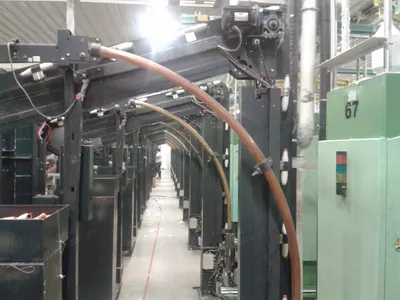

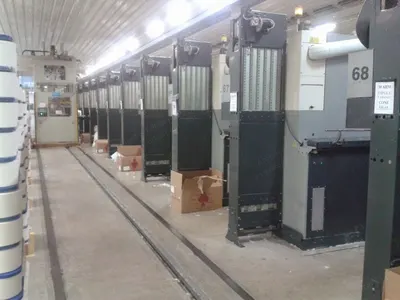

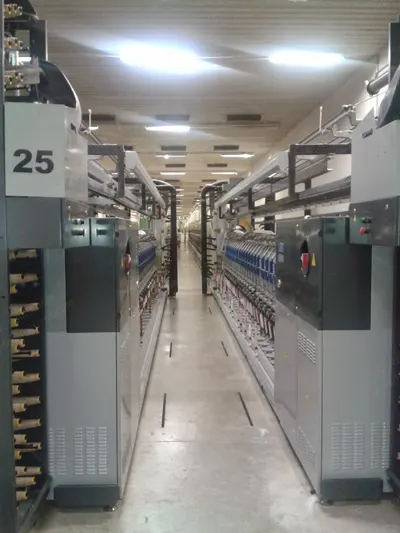

Rieter, G33 Spinning Frame & Espero Savio Automatic Winder, 1998, Linked Machines, 1200 Spindles, 24 Winding Spindles

Rieter, G33 Spinning Frame & Espero Savio Automatic Winder, 1998, Linked Machines, 1200 Spindles, 24 Winding Spindles

Description

  1. Overview

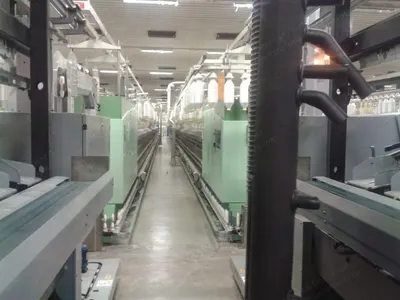

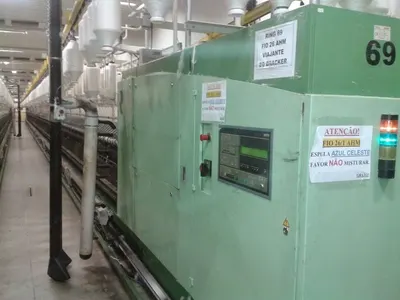

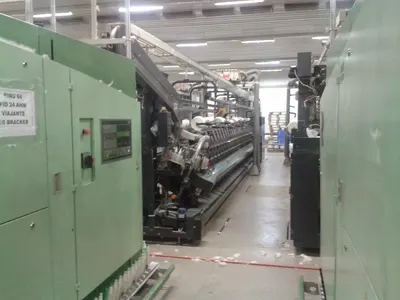

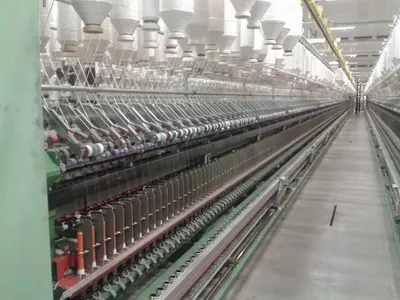

    1. 15 Rieter G33 spinning frames
    2. Model G33
    3. Year of manufacture 1998

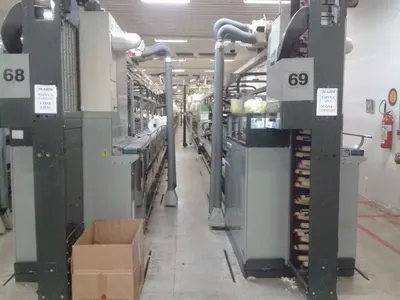

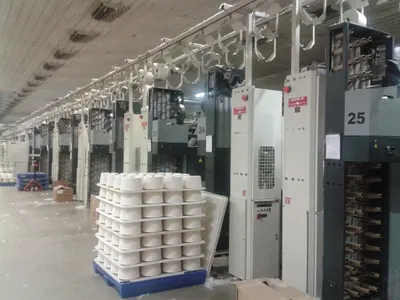

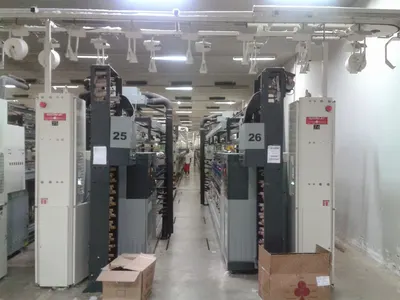

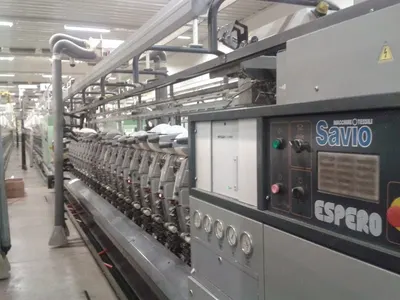

    4. 15 Espero Savio automatic winders
    5. Year 1998
    6. 15 right-hand winders

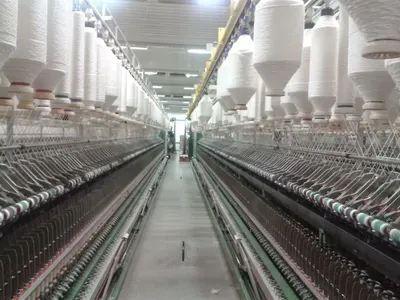

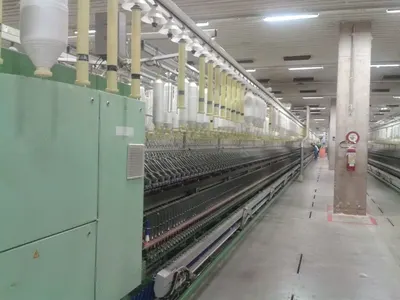

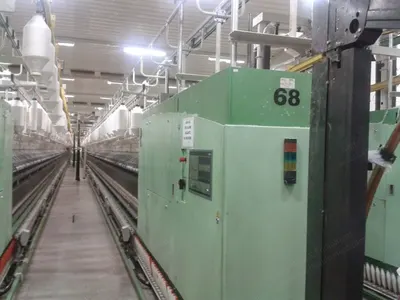

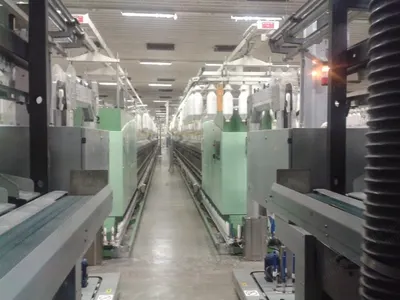

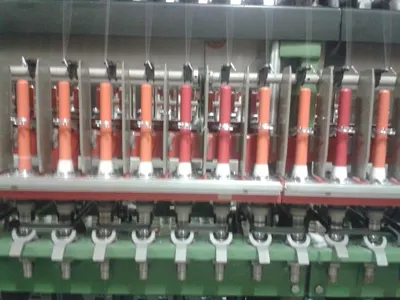

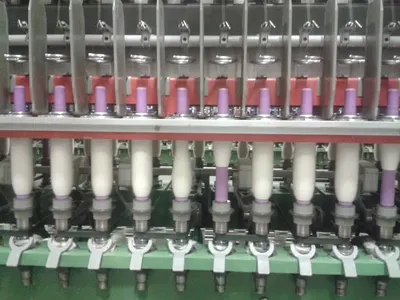

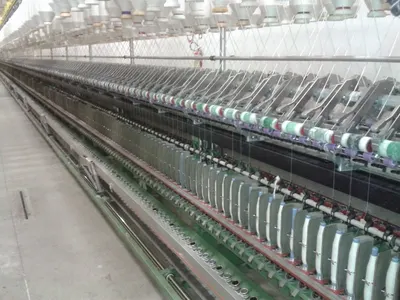

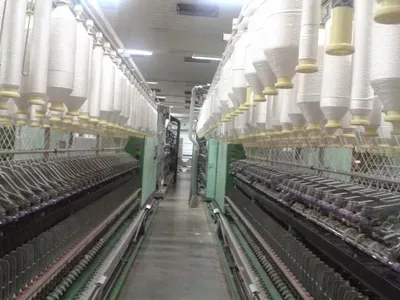

  2. Spinning Frame Specifications
    1. Creel for bobbin of 6" x 16"
    2. 2 rows
    3. Bobbin holders type Kampatzu with internal brake
    4. Drafting device Rieter pneumatic P3 – IR2 P36
    5. Type of draft 3 over 3
    6. Top clearers fitted
    7. 1 bottom rollers diameter 27 mm, bearing SKF
    8. 2 bottom rollers diameter 27 mm, bearing SKF
    9. Type of cradle short
    10. Dimension of apron PR 30
    11. Spindle gauge 75 mm
    12. Top roller with press fit
    13. Yarn breakage suction spindle by spindle (by tube)
    14. Number of spindles 1200 each frame
    15. Spindles lift 170 mm
    16. Tube lift 210 mm
    17. Wharve diameter 18.5 mm
    18. 4 spindles driven by belt
    19. Rings maker Bracker model Bracker Titan
    20. Ring diameter 42 mm
    21. Rings flange 1
    22. Automatic doffing type Rieter
    23. Type of cops picking 210
    24. Membrane diameter 30 mm (top picking)
    25. Suction fan 5.5 hp
    26. Main motor 37 kW
    27. Travelling cleaner type Sohler (15 ringframes)
    28. Centralized collection yes
    29. Distance between the middle of the machine 2200 mm
    30. Voltage 380 V, 3 phase, 50/60 Hz

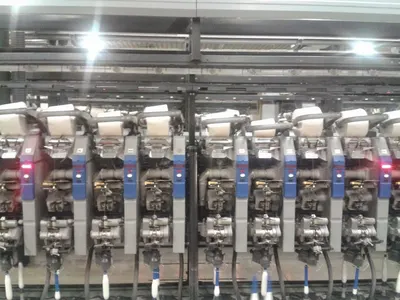

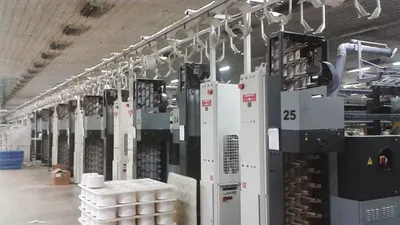

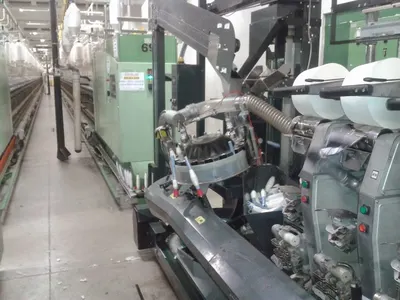

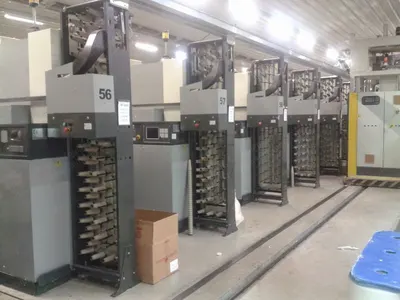

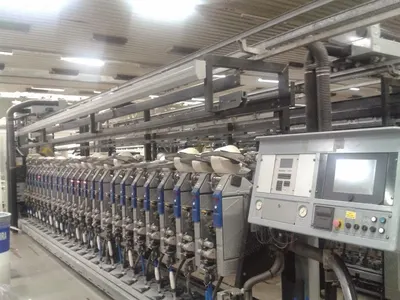

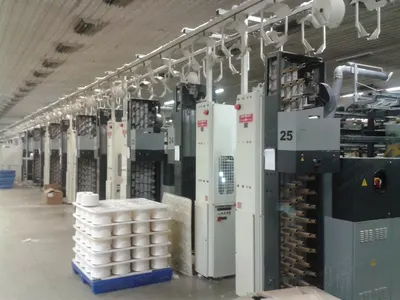

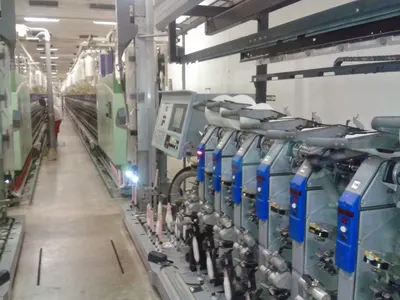

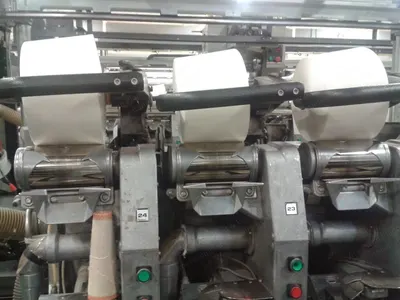

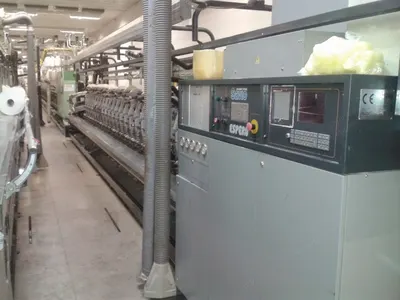

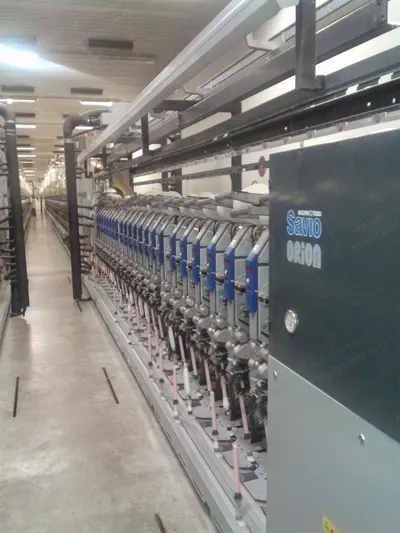

  3. Automatic Winder Specifications
    1. Feeding by Caddy
    2. 24 spindles fitted
    3. Waxing device yes
    4. 11 winders with Loepfe Spectra Tk 840, 4 winders with Uster Peyer Upc 200
    5. Splicer Mesdan 490L (15 winders with Mesdan 490L)
    6. Exit 4°20
    7. Traverse 6"
    8. Stainless drums with 2 symmetric cylinders
    9. Travelling cleaner each machine brand yes (15 winders with Eletrojet)
    10. Informator yes
    11. 01 cone changer yes
