Unitech Coating Line, 2006, 1800mm Working Width, 3 Chambers, Gas Heated

Unitech Coating Line, 2006, 1800mm Working Width, 3 Chambers, Gas Heated

Description

  1. Overview
    1. Coating line
    2. Make: Unitech
    3. Year: 2006
    4. Rollers width: 2000 mm
    5. Useful working width: 1800 mm
    6. Introduction from plait or big roll

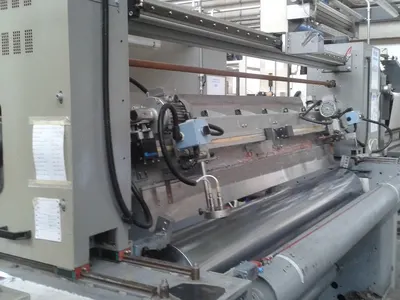

  2. Coating Bench
    1. Double doctor blade operating in this way:
    2. 1 doctor blade works with a contract roller
    3. 1 doctor blade works directly on the fabric without the contrast roller

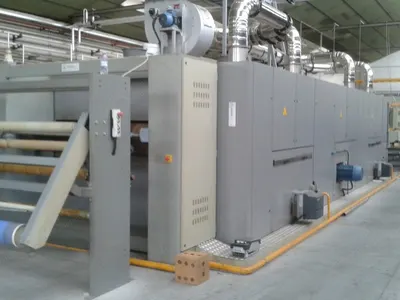

  3. Drying Oven
    1. 3 chambers
    2. Gas heated
    3. Total length: 17 meters
    4. Minimum fabric speed: 2 meters per minute
    5. Maximum fabric speed: 35 meters per minute
    6. Maximum oven temperature: 210 °C
    7. Equipped with blowers only on the upper part
    8. The fabric is coated only on one side
