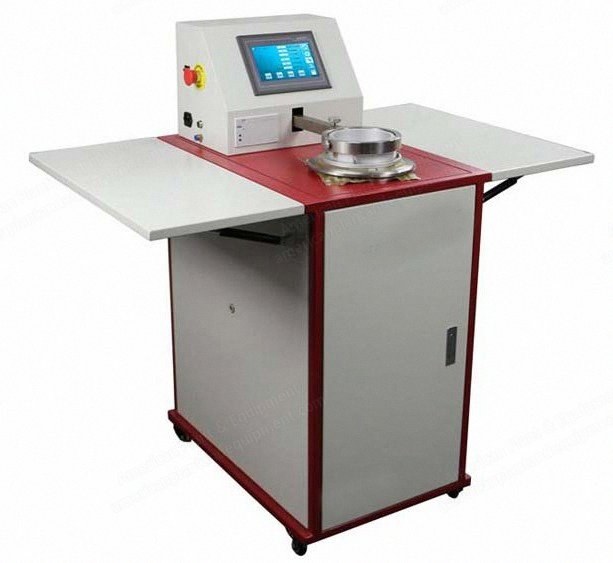

NovaStar, GL101, Digital Air Permeability Tester, 1 to 1000 Pa, 220V (New)

Description

Overview
1. Air permeability test machine for a variety of textile fabrics, including industrial fabrics, nonwoven and other textile products and papers
Features
1. Industrial color touch screen with man-machine dialogue interface operation
2. Automatic folder sample with one-key start testing for efficient and accurate results
3. Uses 32-bit ARM processor pressure analysis for direct calculation of test results, interface query or direct print output
4. Test parameters can be set freely and results are directly displayed with thermal micro-printer
5. Uses high-speed wide range of fans ensuring a wide range of test and test speed
6. Pressure detection uses imported high-precision air pressure sensor instead of the traditional hydraulic test method
7. Standard RS232 communication interface with professional computer analysis software for data analysis and calculation of a variety of formats can be reported data output
8. Whole design uses a two-wing structure for easy customer test
9. Uses wheeled feet to facilitate customer movement
10. According to the test range it automatically prompts to replace the nozzle number and improve test efficiency
Specifications
1. Air pressure range: 1 to 1000 Pa
2. Air flow rate: 1 to 9999 mm/s
3. Accuracy: 2%
4. Fabric thickness: +/- 12 mm
5. Suction volume adjustment: automatic closed loop adjustment
6. Test area: 500 mm
7. Power supply: 220 V and 50/60 Hz
8. Overall dimension: 1080 x 670 x 1080 mm
9. Weight: around 80 kg

HS code	9024.80

Capacity	Air pressure range: 1 to 1000 Pa, Air flow rate: 1 to 9999 mm/s
Suction Volume Adjustment	Automatic closed loop adjustment

Voltage	220 V
