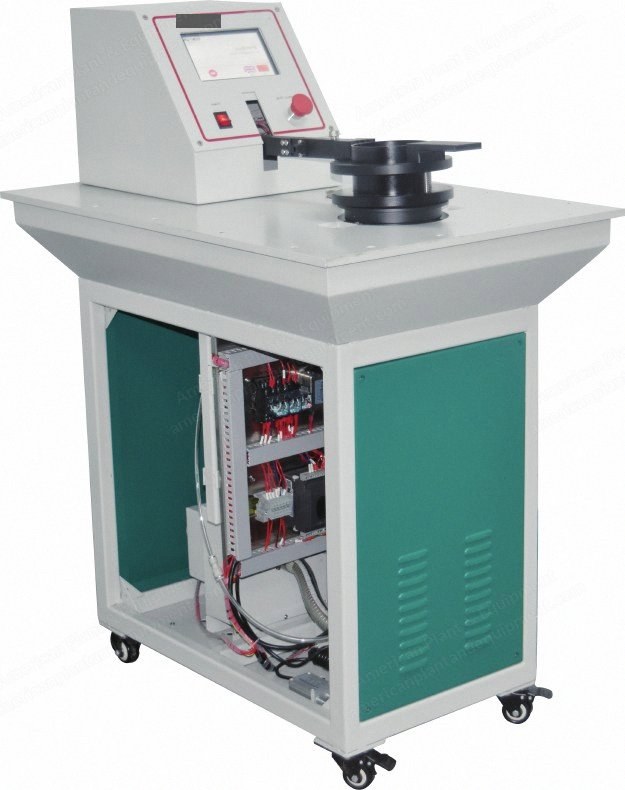

NovaStar, GL102, Air Permeability Tester, Test Range 0.3 to 24000 mm/s, Test Area 5 to 100cm2, 220V
Scroll to zoom
100%
Description
Overview
Suitable for all kinds of fabrics, including woven fabrics, nonwoven fabrics, airbag fabrics, blankets, pile fabrics, multi-layer fabrics and cotton linters
Fabrics can be unfinished, coated on large area, or resin treated
Incorporates compact design, easy to install and can test large areas of samples
Equipped with a large-scale pressure measurement system to automatically detect the pressure at both ends of the sample
Uses a precision flow meter to control the flow system, different from orifice flowmeters used by other manufacturers
Avoids rotation of the orifice plate and leakage caused by mechanical wear, improving test efficiency
Specifications
Control panel: touch panel
Length of the pressure bar: 50 am
Test mode: automation
Test pressure: 50 ± 5 N
Test range: 0.3 to 24000 mm/s
Measurement accuracy: ±2% of show value
Test pressure: 10 to 3,000 Pa
Test area: 5, 20, 25, 38, 50 and 100 cm² (optional)
Test time: 5 to 50 s
Air impermeability: 0.01 L/min
Test sample thickness: 0 to 10 mm
Calibrated test board: 2000 mm
Weight: 75 kg
Voltage: 220 V and 50/60 Hz
Appearance size: 920 x 600 x 1200 mm
