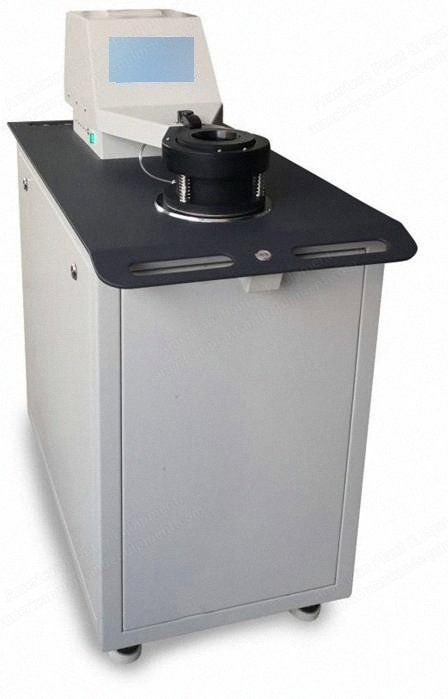

NovaStar, GL104, Fabric Air Permeability Tester, Pressure Range 1 to 4000 Pa, Test Area 100mm, 220V (New)

NovaStar, GL104, Fabric Air Permeability Tester, Pressure Range 1 to 4000 Pa, Test Area 100mm, 220V

Description

  1. Overview
    1. Used for testing the air permeability of various textile fabrics, including industrial fabrics, nonwoven fabrics, filter material, paper and complex film.
  2. Features
    1. Flow meter test mode, full range selection, dynamic measurement precision sensor, 32-bit processor, test results displayed directly without manual calculation.
    2. Color touch-screen display, menu settings, test units are free to switch, and can be printed out directly, without manual calculations.
    3. Variety of optional test area and can identify automatically.
    4. Three national patents.
    5. International brand fan, inverter motor control, ultra-quiet, and high efficiency.
    6. Fully sealed air duct - no impact on the external environment.
    7. Automatic replacement orifice plate with different requirements range.
    8. Automatically and quickly clamp and release the sample, to reduce the test area changes by manually.
    9. Provides a continuous test mode, improves test efficiency.
    10. Can be connected to a computer through specialized testing software program.
    11. Can be independently connected to the printer directly to the output report.
    12. Standard flow meter full scale calibration, and built-in data correction procedures, rapid calibration.
  3. Specifications
    1. Sample pressure range: 1 to 4000 Pa.
    2. Measurable permeability: 1 to 10000 mm/s.
    3. Measurement error: ≤ ±2%.
    4. Differential pressure: 0.1 to 500 Pa, accuracy: ≤1%.
    5. Pressure adjustment: data feedback dynamic adjustment.
    6. Sample thickness: ≤ 2 mm.
    7. Test area: 100 mm.
    8. Voltage: 220 V and 50/60 Hz.
    9. Dimensions: 1250 x 700 x 1250 mm.
    10. Weight: 80 kg.
