NovaStar, SZ101, Conveyorized Ultraviolet Mask Sterilization Machine, 40 Masks/Min, 16 UV Lamps, 2000mm Length (New)

NovaStar, SZ101, Conveyorized Ultraviolet Mask Sterilization Machine, 40 Masks/Min, 16 UV Lamps, 2000mm Length

Description

  1. Overview
    1. Evenly distributed in the furnace; can be installed on the top and bottom.
    2. Sterilizes on all sides to achieve a strong sterilization effect.
    3. Reflective device (mirror stainless steel plate in the inner box) increases ultraviolet light use rate up to 90% when product passes through the sterilization line.
    4. Each group of germicidal lamps can be controlled individually, with an adjusting device for the UV lamp angle.
    5. Wave peak is 253.7 nm.
    6. Monitors lamp use time for timely replacement.
    7. Ultraviolet tube radiation dose can radiate more than 70 μW/cm².
  2. Specifications
    1. Equipment full length: 2000 mm
    2. Working area: 1000 mm
    3. Feeding area: 500 mm
    4. Discharging operation area: 500 mm
    5. Entrance height: 200 mm
    6. Entrance width: 500 mm
    7. Distance from the conveyor belt to the ground: 750 + 20 mm
    8. Main switch: 20A
    9. Total power: 1.5 kW
    10. Dimension: 2300 x 1500 x 1000 mm
    11. Weight: 500 kg
    12. Bulbs: 16 pcs., can be used for 9000 hours
    13. Bubble length: 895 mm
    14. Weave: 254.7 mm
    15. Range of electronic belt stepless speed regulation: 0 to 3 m/min
    16. Transportation motor: (ordinary motor) 0.75 kW (1:20)

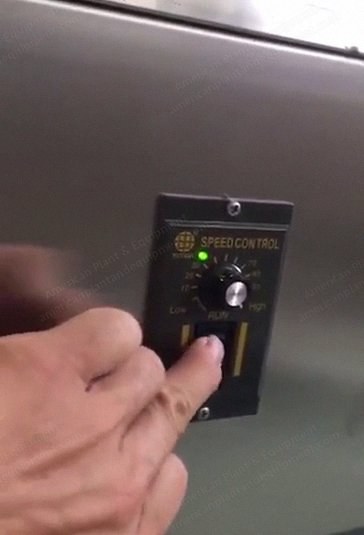

    17. Governor: electronic stepless speed regulation
    18. Exhaust fan: D-125 (1 set)
    19. Voltmeter: 220V
    20. Working voltage: 220V (± 5) 50 Hz
  3. Main Structure
    1. Outer body of working area tunnel: 1.2 mm high quality stainless steel
    2. Working chamber tunnel cavity: 1.0 mm mirror stainless steel plate
    3. Body support frame: a set of square steel (stainless steel)
    4. Air transport system: 1 set of forced air transport exhaust fan (extracts harmful gas)

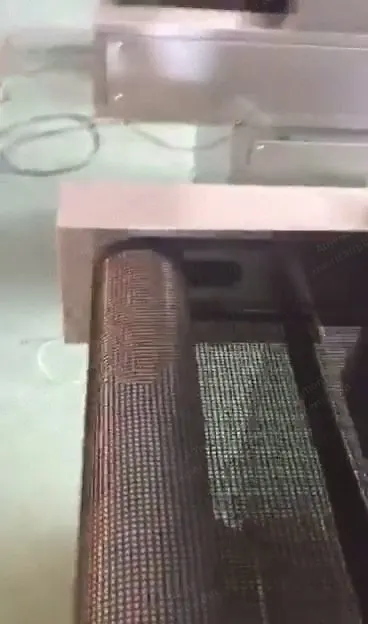

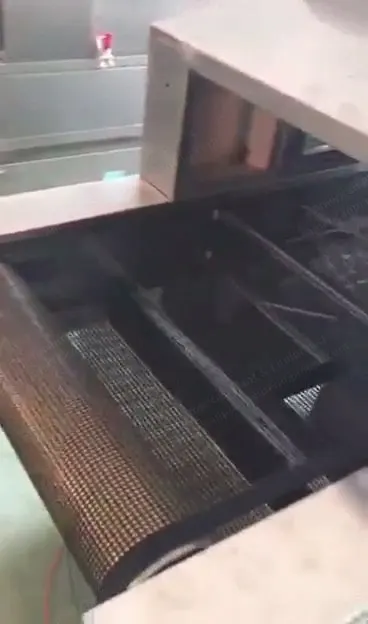

    5. Conveyor belt: Teflon mesh belt
    6. Ultraviolet tube: use 16 (20W) UV germicidal tubes, installed up, down, left and right (tube is a vulnerable part: no warranty)
    7. Balance device: 4 horizontal feet
  4. Performance
    1. 30 to 40 sterilization masks per minute.
    2. Masks stay in the lamp for 60 seconds.
