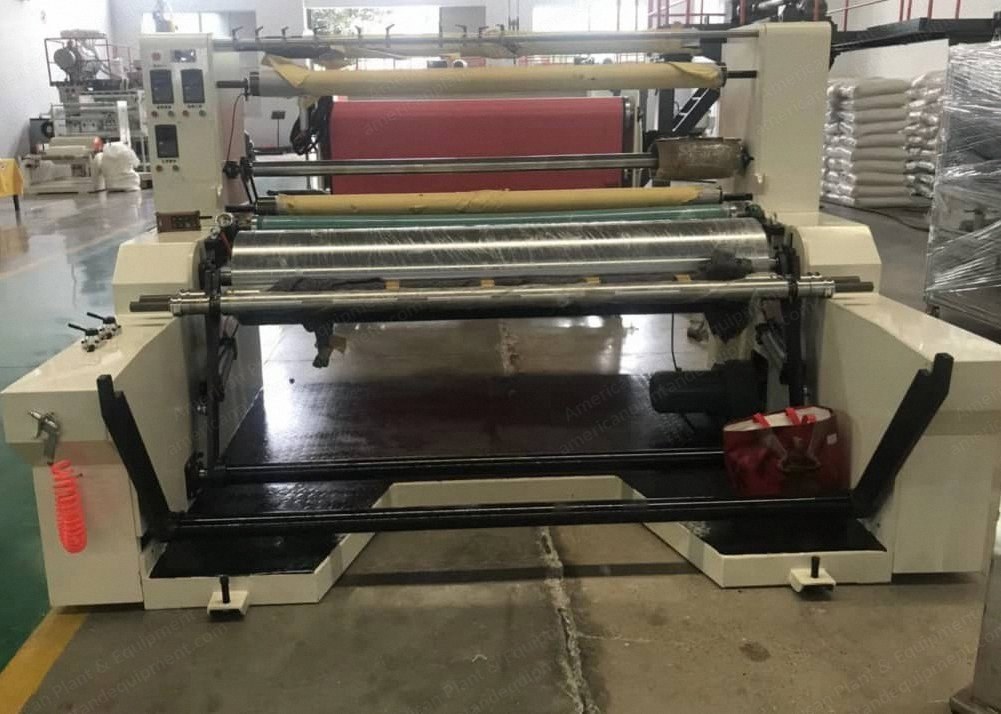

NovaStar, NN120, Meltblown Nonwoven Production Line, 1600mm, 1360 kg/24h Capacity, 450 kW (New)

NovaStar, NN120, Meltblown Nonwoven Production Line, 1600mm, 1360 kg/24h Capacity, 450 kW

Description

  1. Overview
    1. Machine type: meltblown, horizontal
    2. Working width: 1600 mm
    3. Production speed: 4 to 20 m/min
    4. Product weight range: 8 to 120 gsm
    5. Melt-blow fiber: 2 to 5 microns
    6. Max output: 1360.78 kg / 24 hours
  2. Specifications
    1. Extruder diameter: 90 mm
    2. Extruder motor: 45 kW
    3. Power (total): 450 kW
    4. Power consumption: 220 to 280 kW/h
    5. Voltage: 220 volts and 50/60 Hz
  3. Dimensions And Weight
    1. Dimension: 15000 x 5000 x 5000 mm
    2. Weight: 13 tons
  4. Logistics And Production
    1. Quantity of containers needed: 4 x 40
    2. Production time: 90 days
