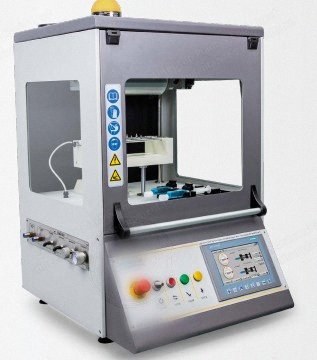

NovaStar, NE 300, Multi Nozzle Electrospinning Unit, 8 Nozzles, 0 to 40 kV, 314x220mm Coating Area

NovaStar, NE 300, Multi Nozzle Electrospinning Unit, 8 Nozzles, 0 to 40 kV, 314x220mm Coating Area

Description

  1. Overview
    1. Fully automated electrospinning machine designed for advanced electrospinning research.
    2. Hybrid electrospinning system with eight needles.
    3. Nanofiber coating area of 314 x 220 mm via a rotating drum collector.
    4. Flat collector of 130 x 370 mm included as standard.
    5. Electrically insulated cabinet with high density PE parts inert to chemical solutions, enabling work with many different solvents and polymers.
  2. Specifications
    1. Spinning type: bottom-up spinning.
    2. Chassis: electrostatically painted steel.
    3. Feeding area material: PE 1000 (high density, chemical resistant).
    4. Collector material: 7000 series aluminum alloy, stainless steel.
    5. LED illumination.
    6. Exhaust fan.
    7. Atmosphere control (optional).
    8. Total weight: approx. 150 kg.
    9. Dimensions: 770 x 675 x 1040 mm.
  3. High Voltage Power Supply
    1. Voltage range: 0 to 40 kV.
    2. Voltage precision: 0.1 kV.
    3. Max current: 0.125 mA.
  4. High Precision Micro Pump
    1. Flow rate: 0.01 to 4464 ml/h (BD 60 ml syringe).
    2. Flow rate precision: 0.01 ml/h.
    3. Available syringes standard: all types are available.
  5. Feeding Area
    1. Number of nozzles on each feeding pipe set: 4 pcs.
    2. Number of feeding pipe sets: up to 2 sets.
    3. Number of nozzles: up to 8 nozzles.
    4. Single nozzle production: available.
    5. Feeding pipe material: aluminum.
    6. Nozzle material: electrically conductive stainless steel.
    7. Nozzle inner diameter: 0.8 mm.
    8. Compatible with standard syringe nozzles.
    9. Minimum required solution for single nozzle feeding: 1 ml.
    10. Minimum required solution for each feeding pipe set: 8.5 ml.
    11. Minimum required solution for full loading: 16 ml.
  6. Spinning Distance
    1. Distance between nozzle and collector: 33.5 to 233.5 mm.
    2. Distance adjustment precision: 1 mm.
  7. Rotating Collector
    1. Drum collector.
    2. Material: aluminum.
    3. Dimensions of drum: 100 x 220 mm.
    4. Fiber deposition area: 314 x 220 mm.
    5. Drum rotating speed: 100 to 500 rpm.
    6. Surface speed: 52.3 cm/s to 261.6 cm/s.
    7. Coating homogeneity system: x-axis repetitive motion.
    8. Stroke of coating homogeneity system: 30 to 80 mm.
    9. Speed of coating homogeneity system: 2 to 20 mm/sec.
  8. Stationary Plate Collector
    1. Material: stainless steel.
    2. Dimensions of stationary plate: 370 x 130 mm.
  9. Unique User Interface
    1. 9" touch screen control panel with well designed user friendly interface.
    2. Fully able to control all parameters.
    3. Saving and recalling all parameters via recipe and recall function.
  10. Safety Function
    1. Safe door.
    2. Emergency button and safety relay.
    3. HV warning light.
    4. Electrical isolated and grounded cabinet.
    5. Over current protection.
    6. Fully sealed cabinet.
  11. Technical Requirements
    1. Power: 220 volts and 50/60 Hz at max 25A.
    2. Grounding: external grounding line.
    3. Area: min. 1000 x 1000 mm workbench able to carry minimum 150 kg.
