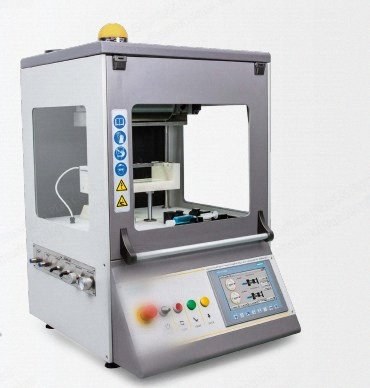

NovaStar, Advanced Level Single Nozzle Electrospinning Unit, 0 to 40 kV, 100 to 500 RPM Drum Collector (New)

NovaStar, Advanced Level Single Nozzle Electrospinning Unit, 0 to 40 kV, 100 to 500 RPM Drum Collector

Description

  1. Overview
    1. Laboratory scale electrospinning unit with a single nozzle.
    2. Standard machines include a 500 rpm rotating drum collector and a flat collector.
    3. Optional accessories available upon request for functionality improvement.
    4. Operation parameters such as needle-collector distance and high voltage value can be automatically adjusted from the user panel with high precision.
    5. System comes with an enclosed cabinet making it possible to add temperature and relative humidity control systems.
  2. Specifications
    1. Spinning type: bottom-up spinning.
    2. Chassis: electrostatically painted steel.
    3. Feeding area material: PE 1000 (high density, chemical resistant).
    4. Collector material: 7000 series aluminum alloy, stainless steel.
    5. LED illumination.
    6. Exhaust fan.
    7. Atmosphere control (optional).
    8. Total weight: approx. 150 kgs.
    9. Dimensions: 770 x 675 x 1040 mm.
  3. High Voltage Power Supply
    1. Voltage range: 0 to 40 kV.
    2. Voltage precision: 0.1 kV.
    3. Max current: 0.125 mA.
  4. High Precision Micro Pump
    1. Flow rate: 0.01 to 4464 ml/h (BD 60 ml syringe).
    2. Flow rate precision: 0.01 ml/h.
    3. Available syringes standard: all types are available.
  5. Feeding Area
    1. Number of nozzles: 1 nozzle.
    2. Nozzle material: electrically conductive stainless steel.
    3. Nozzle inner diameter: 0.8 mm.
    4. Compatible with standard syringe nozzles.
    5. Minimum required solution for single nozzle feeding: 2 ml.
  6. Spinning Distance
    1. Distance between nozzle and collector: 33.5 to 233.5 mm.
    2. Distance adjustment precision: 1 mm.
  7. Rotating Collector
    1. Drum collector.
    2. Material: aluminum.
    3. Dimensions of drum: 100 x 150 mm.
    4. Fiber deposition area: 314 x 150 mm.
    5. Drum rotating speed: 100 to 500 rpm.
    6. Surface speed: 52.3 cm/s to 261.6 cm/s.
  8. Stationary Plate Collector
    1. Material: stainless steel.
    2. Dimensions of stationary plate: 370 x 130 mm.
  9. Unique User Interface
    1. 9" touch screen control panel with well designed user friendly interface.
    2. Fully able to control all parameters.
    3. Saving and recalling all parameters via recipe and recall function.
  10. Safety Function
    1. Safe door.
    2. Emergency button and safety relay.
    3. HV warning light.
    4. Electrical isolated and grounded cabinet.
    5. Over current protection.
    6. Fully sealed cabinet.
  11. Technical Requirements
    1. Power: 220 volts and 50/60 Hz @ max 25A.
    2. Grounding: external grounding line.
    3. Area: min. 1000 x 1000 mm workbench able to carry minimum 150 kgs.
