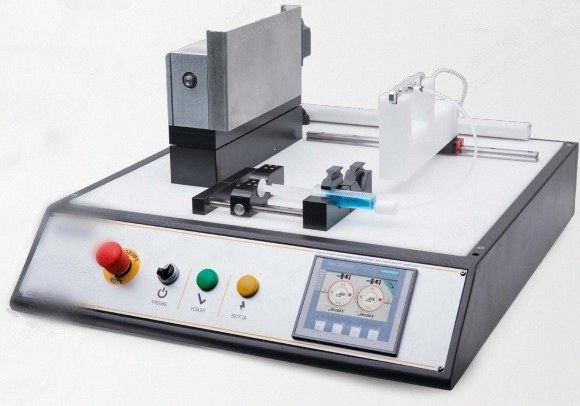

NovaStar, Entry Level Single Nozzle Electrospinning Unit, 1 Nozzle, 0 to 30 kV, 740x645x410mm (New)

NovaStar, Entry Level Single Nozzle Electrospinning Unit, 1 Nozzle, 0 to 30 kV, 740x645x410mm

Description

  1. Overview
    1. It is possible to apply high voltage with precision as well as adjust the flow rate and the distance between the needle and collector.
    2. The spinning area is not enclosed in a cabinet, but the small size of the system allows it to fit inside a fume hood.
  2. Specifications
    1. Spinning type: side by side spinning
    2. Chassis: enclosed chassis for spinning area
    3. Feeding area material: PE 1000 (high density, chemical resistant)
    4. Collector material: 7000 series aluminum alloy, stainless steel
    5. LED illumination
    6. Total weight: approx. 40 kgs
    7. Dimensions: 740 x 645 x 410 mm
  3. High Voltage Power Supply
    1. Voltage range: 0 to 30 kV
    2. Voltage precision: 0.1 kV
    3. Max current: 0.170 mA
  4. High Precision Micro Pump
    1. Flow rate: 0.01 to 4464 ml/h (BD 60 ml syringe)
    2. Flow rate precision: 0.01 ml/h
    3. Available syringes standard: all types are available
  5. Feeding Area
    1. Number of nozzles: 1 nozzle
    2. Nozzle material: electrically conductive stainless steel
    3. Nozzle inner diameter: 0.8 mm
    4. Compatible with standard syringe nozzles
    5. Minimum required solution for single nozzle feeding: 2 ml
  6. Spinning Distance
    1. Distance between nozzle and collector: 30 mm - 300 mm
    2. Distance adjustment: manual control
  7. Stationary Plate Collector
    1. Material: stainless steel
    2. Dimensions of stationary plate: 300 x 238.5 mm
  8. Unique User Interface
    1. 4.3" touch screen control panel with well designed user friendly interface
    2. Fully able to control all parameters
  9. Safety Function
    1. Emergency button
    2. Over current protection
  10. Technical Requirements
    1. Power: 220 volts and 50/60 Hz @ max 25A
    2. Grounding: external grounding line
    3. Area: min. 1000 x 1000 mm workbench able to carry minimum 150 kgs
