Plastic automatic charger: feeding capacity 200 kg/h, air pump power 0.75 kw

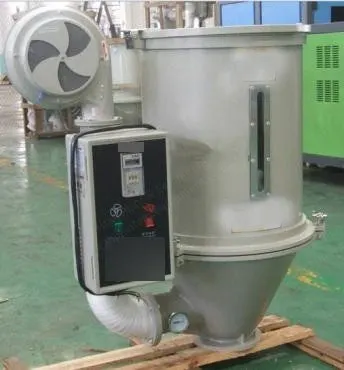

Hopper plastic dryer: hopper cubage 100 l, feeding capacity 50 kg, heating power 3.7 kw, blower power 0.12 kw

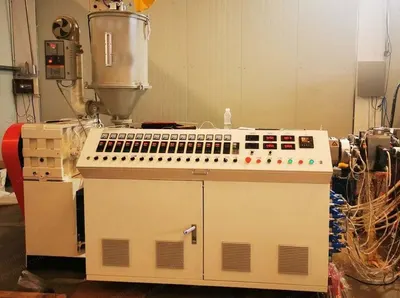

NN135 single screw plastic extruder: screw and barrel material 38CrMoAlA, nitriding; screw diameter 65 mm; screw L/D 30:1; main motor speed adjustment incorporate 22 kw ABB inverter; barrel heating casting AL heater with air cooling; heating power 16 kw; gear box ZLYJ series rigid gear surface gear box; extrusion capacity 20 to 50 kg/h

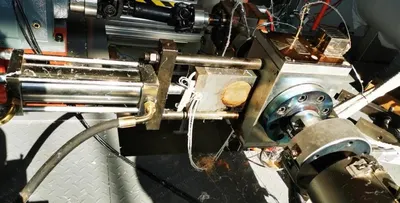

Hydraulic screen changer: motor power 1.1 kw; structure double position, plate type; heaters stainless steel heating bar; max working pressure 20 mpa

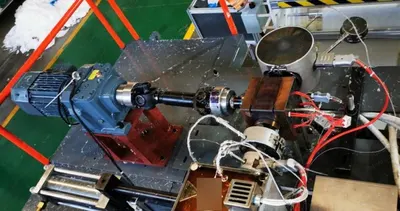

Metering pump: capacity 40 cc; rotate speed 0 to 50 rpm, speed controlled ABB AC inverter

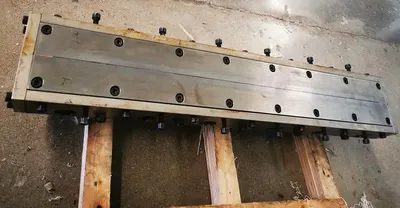

Extrusion mould: structure T-die; material of mould high quality alloyed steel, surface chrome plated; flow channel chrome plated, polished; specification of product width 600 mm; air income holes 12 pcs, high precision temperature control
Belt type collecting machine: rotate motor power 1.5 kw; rotate speed control incorporate ABB AC inverter; suction fan power 3 kw x 2 sets
Electrostatic electret device: component include electrostatic generator, voltage raiser, electret frame; application generate the electrostatic during production and increase the filtering efficiency
Slit and half-off machine and coiler: coiling roller diameter 200 mm, width 800 mm; slit blade 4 pcs; coiling motor 1.5 kw, speed controlled by ABB AC inverter; coiling method by self friction, inflatable shaft x 2 pcs

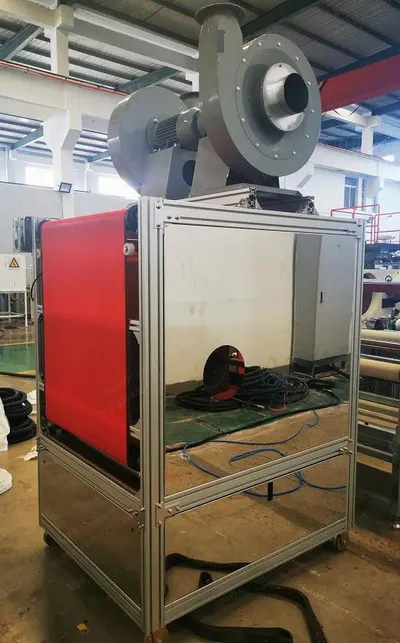

Hot air system: motor power 37 kw; pressure 8 bar; capacity 6.2 m3/min; pressure 1.0 mpa

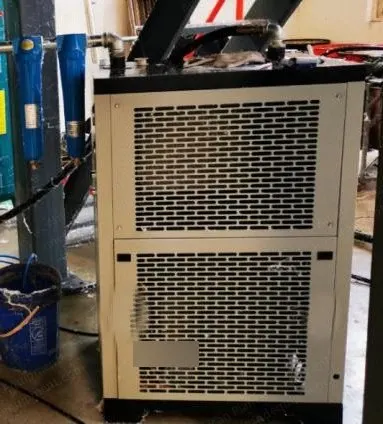

Air dryer: 6 m3

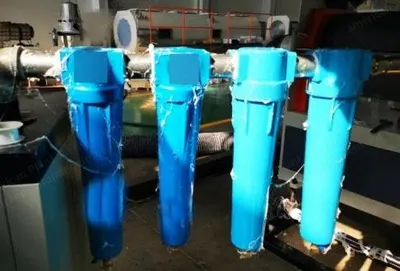

Air filter: x 2 pcs

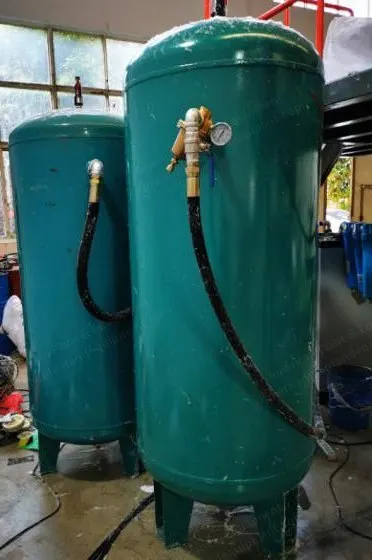

Air tank: 1 m3

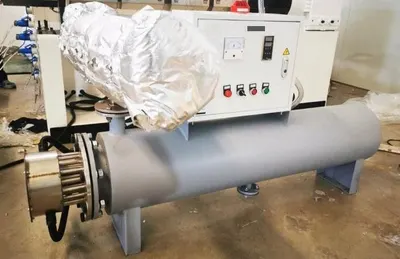

Heating system: heating power 37 kw
