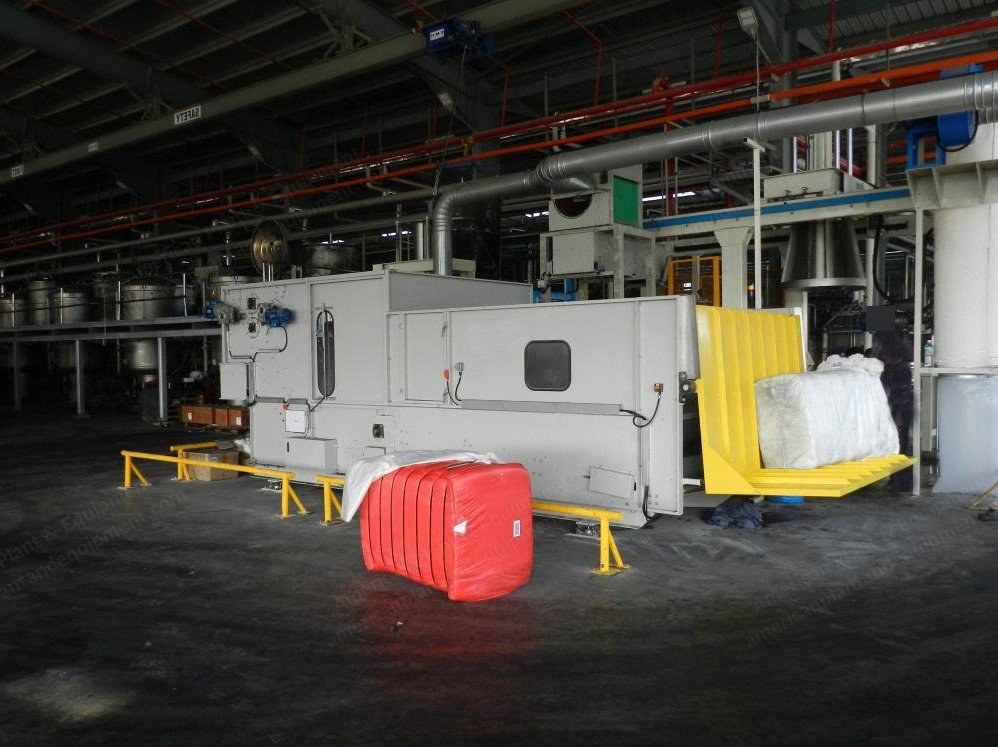

NovaStar, Bale Breaker, 500 kg/h, 2000mm Working Width, 7 kW

NovaStar, Bale Breaker, 500 kg/h, 2000mm Working Width, 7 kW

Description

  1. Overview
    1. Production speed: 500 kg/h
    2. Working width: 2000 mm
    3. Total length of the machine: 7200 mm
  2. Conveyor System
    1. Length of first feeding conveyor belt: 3000 mm
    2. Length of second feeding conveyor belt: 1000 mm
    3. Spiked conveyor with pins with inside wood sticks and zinc inclined round pins, diameter: 4 x 62
    4. The spiked conveyor rotates on a metal structure with guides in anti-friction polyzen
    5. Conveyor rotation is driven by inverter
    6. The second conveyor is in PVC with inside wood sticks as reinforcement, movement of start/stop is synchronized with the speed of the spiked conveyor by means of a free wheel mechanism
  3. Power and Drive
    1. Installed power: 7 kW
    2. A cylinder unloads inside the bale opener the fiber in excess from the spiked conveyor; this cylinder is driven by independent geared-motor
    3. Cylinder for external unload for the cleaning of the spiked conveyor and unload of the fiber, driven by independent geared-motor
  4. Unloading and Access
    1. Unloading transversal belt for the unload of the fiber on the right or left side of the head of the machine for the predisposition of the pneumatic transport
    2. Front part of the machine with two doors for the cleaning of the spiked conveyor
    3. Fixed platform for bales loading
