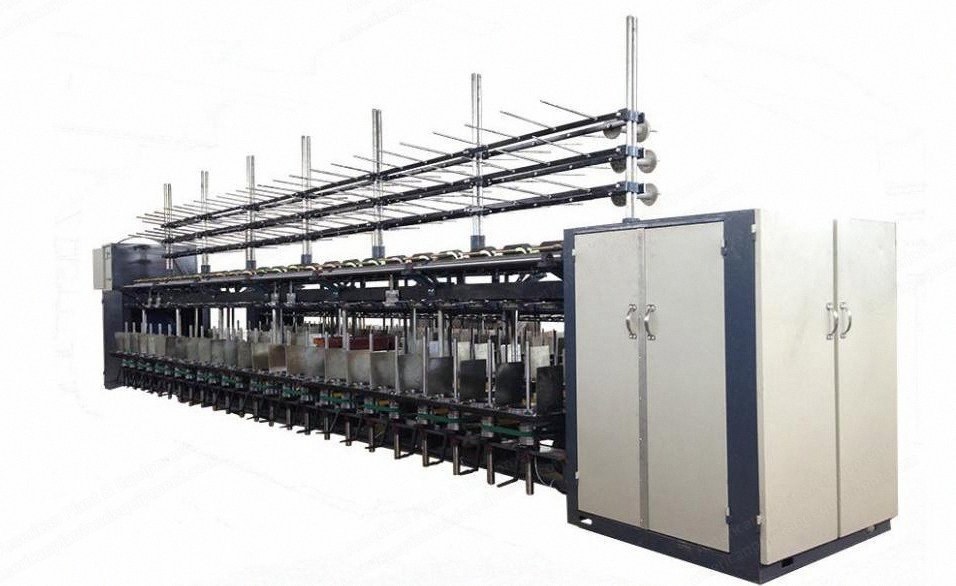

NovaStar, WN103, Ring Twister Machine, 32 Spindles, 204mm Traveler Ring, 1800-2800 rpm (New)

Description

Overview
1. Quantity of spindle: 8 spindles per group, 4 groups, 32 spindles total
2. Lifting movement of traveler ring: 300 mm
3. Speed of spindle: 1800 to 2800 rpm
4. Diameter of roller: 57 mm
5. Distance of spindle: 280 mm
6. Diameter of traveler ring: 204 mm
7. Twisting direction: Z or S
8. Bobbin dimension (OD x ID x H1 x H2): Φ 175 x φ 22.5 x 305 x 345 mm
Suitable Scope
1. 21 counts 5 strands to 180 strands yarn
2. 850 D to 15000 D fiber
3. 36 tex 21 to 70 strands twisting or twine

Capacity	32 spindles
Spindle Groups	8 spindles/group, 4 groups
Suitable Scope	21 counts 5 strands to 180 strands yarn, 850 D to 15000 D fiber, 36 tex 21 to 70 strands twisting or twine
Twisting Direction	Z or S

Speed (RPM)	1,800-2,800 rpm
