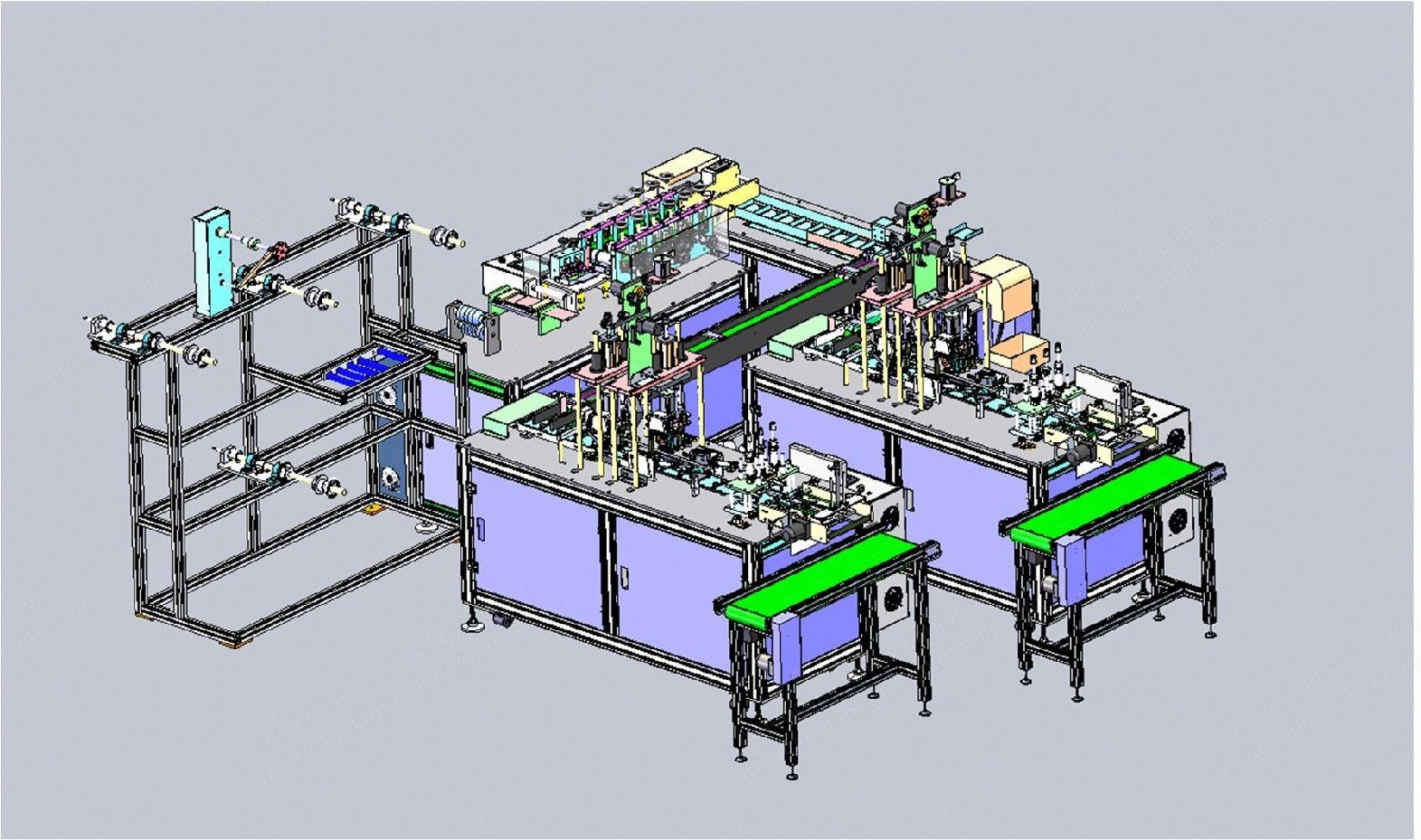

NovaStar, FM132, Automatic Disposable Face Mask Making Line, 60 to 80 pcs/min, 11 kW, 7000x4200x2400mm (New)

NovaStar, FM132, Automatic Disposable Face Mask Making Line, 60 to 80 pcs/min, 11 kW, 7000x4200x2400mm

Description

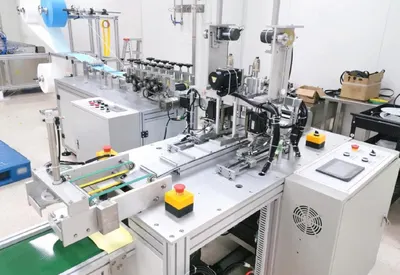

  1. Overview
    1. Type: Automatic disposable face mask making line (1+2)
    2. Medical face mask forming line
    3. Productivity: 60 to 80 pcs/min
  2. Specifications
    1. Overall: 7000 x 4200 x 2400 mm
    2. Weight: 1800 kg
    3. Total power: 11 kW, 220 volts and 50/60 Hz or customized
    4. Air pressure: 5 to 7 bar (0.5 MPa to 0.7 MPa)

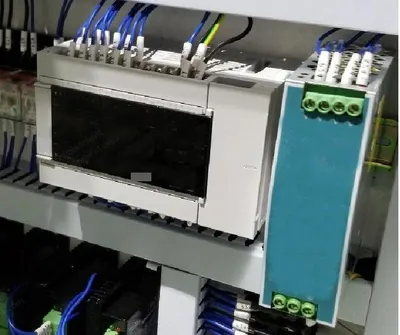

    5. Control system: PLC with full color touch screen
    6. Individual photoelectric sensor for each station
    7. Servo control for processing motion
    8. Electrical components: Schneider, Omron or equivalent
    9. Pneumatic components: AirTac or equivalent
  3. Features
    1. Aluminum alloy frame, steady and neat, fast to set up
    2. Compact design, less space investment
    3. Fully automatic production, only one labor needed
    4. Individual detect sensor for each station, status monitor on touch screen, fast debug if the machine failure
    5. High quality electrical components and pneumatic components
  4. Material Feeding System
    1. Aluminum alloy frame, fast to set up and adjust
    2. 1 to 4 rolls material loaded, and individual tension control
    3. Material roll diameter up to 600 mm

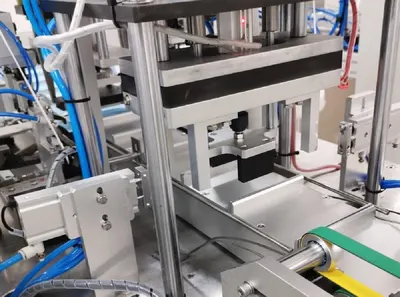

  5. Mask Forming Machine

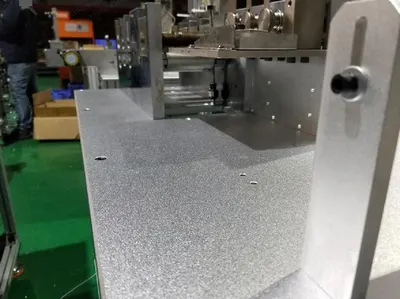

    1. Robust aluminum alloy frame, one-piece CNC steel working table

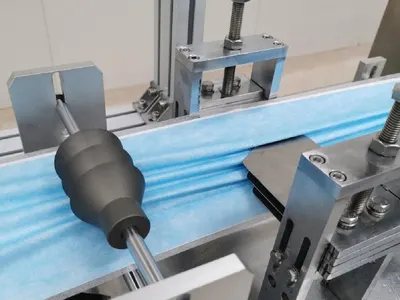

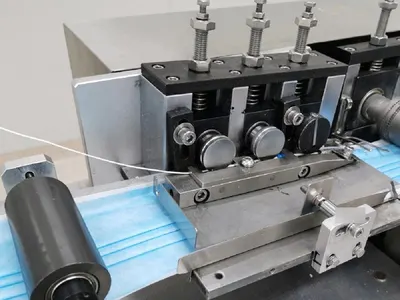

    2. Nose wire feeding system, consists of decoiler, feeding unit, straighter, encoder, cutter

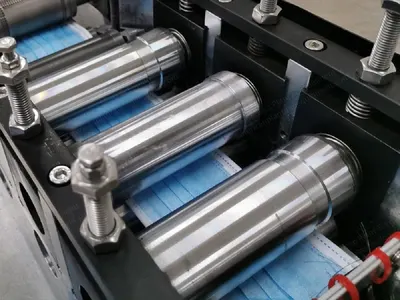

    3. Pleating unit, durable stainless steel made, fast to adjust and debug

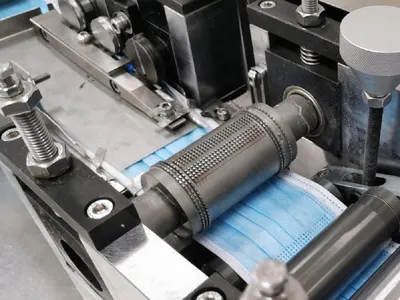

    4. Welding unit, durable stainless steel made, fast to adjust and debug
    5. Ultrasonic station, equipped with strong turbo radiator
    6. Cutter unit, durable stainless steel made
  6. Central Distributor
    1. Individual PLC control, connect and distribute masks from masking making machine to earloop welding machine
    2. Touch screen to control and status monitor
    3. Individual PLC control, equipped with touch screen for control and status monitor
    4. Uninterrupted and double size welding, the most efficient processing way

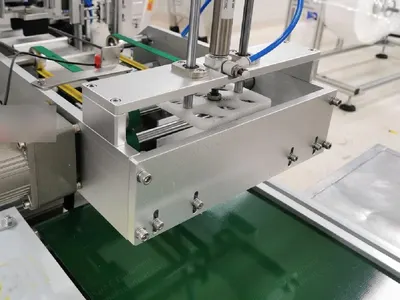

    5. Stacking and feeding out unit, can stack the mask as required and feed out automatic
