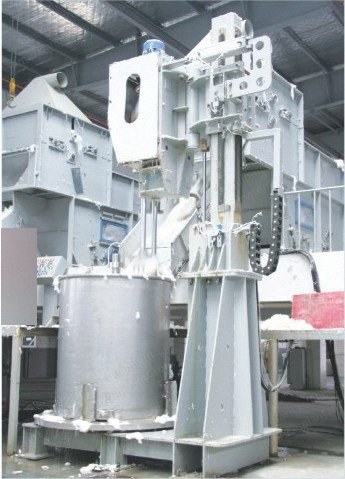

NovaStar, BB100, Bleached Cotton Cake Stamping Machine, Double Hammer Beat, 11-13 kW (New)

Description

Overview
1. Water is poured into the loose fibers delivered from former process in the cotton cage.
2. Fiber is processed uninterruptedly and uniform wet cotton cakes is formed.
Features
1. Double hammers beat is incorporated and has high efficiency.
2. The caking head is lifted along with thickness of cotton cakes, hydraulic driven, pressure of the head is consistent to ensure the density of cake is even.
3. The part contacted with fibers are made of stainless steel to ensure cotton cakes are clean without pollution.
4. Cotton cage is driven by hydraulic motor to guarantee reliability of equipment in severe environment.
5. Assembling and disassembling of cotton cage is convenient, easy to operate, cage or cake can be lifted.
Specifications
1. Type: double hammer beat.
2. Cotton cage dimensions: 1150 x 900 mm, 1200 x 1340 mm, 1480 x 1100 mm, 1300 x 1450 mm, 950 x 950 mm, 1100 x 1150 mm, 1450 x 1730 mm (to support the suitable kinds of cotton cage dimensions).
3. Installed power: 11 kW, 11 kW, 11 kW, 11 kW, 13 kW.
4. Dimensions: 2000 x 3100 x 4200 mm, 2000 x 3100 x 4400 mm, 2000 x 3100 x 4960 mm, 2000 x 3100 x 4800 mm, 2000 x 3100 x 5470 mm.

Features	['Double hammers beat with high efficiency', 'Hydraulic driven caking head', 'Stainless steel contact parts', 'Hydraulic motor driven cotton cage']
Type	Double Hammer Beat

Motor power	11 kW
