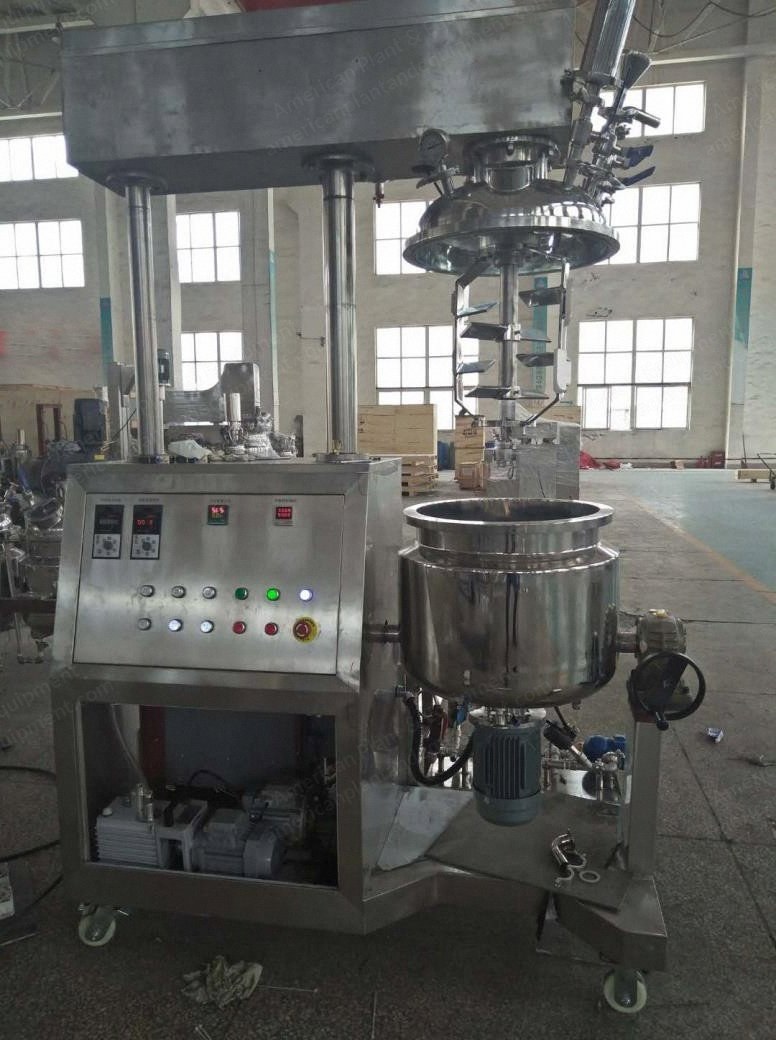

NovaStar, MN100, Vacuum Emulsifying Mixer, 100 L, 15 kW (New)

NovaStar, MN100, Vacuum Emulsifying Mixer, 100 L, 15 kW

Description

  1. Overview
    1. Full volume: 100 L
    2. Batch working capacity: 20 to 80 L
    3. Total power: 15 kW
    4. Explosion-proof
  2. Emulsifying Pot
    1. With emulsifying pot
    2. Parts touching product are made of stainless steel SS304
    3. The appearance of the machine is made of stainless steel SS304
    4. With sight glass / observation window (with scraper)
    5. With LED lamp on pot cover to light the inside of emulsifying pot
    6. With raw material adding hopper to add powder or liquid
    7. With spray ball for cleaning
  3. Stirring System
    1. With scraper stirrer (VFD control)
    2. Stirrer and scraper stirrer material: stainless steel SS304
    3. Scraper material: PTFE
    4. With high-speed homogenizer (0 to 4500 rpm, VFD control)
    5. Homogenizer material: stainless steel SS304
    6. Speed: 0 to 4500 rpm (frequency inverter control)
  4. Controls and Automation
    1. Button control
    2. With frequency inverter (rotation speed of stirrers can be adjusted)
    3. Auto control of temperature, mixing time and speed
  5. Vacuum System
    1. With vacuum system (including vacuum pump and pipeline)
    2. The maximum vacuum degree is -0.09 MPa
    3. Vacuum pipeline connection port and vacuum pressure meter
  6. Pot Body Configuration
    1. With jacket layer
    2. Inner layer material: stainless steel SS304, mirror polish
    3. Middle layer material: stainless steel SS304
    4. Outside layer material: stainless steel SS304, mirror polish
  7. Discharge and Connections
    1. Discharge method: discharge from bottom valve of emulsifying pot
    2. Pipeline connection way: clamp connection (easy to install and disassemble)
    3. Sealing material: VITON
    4. Welding: all welding parts are full weld
  8. Included Accessories
    1. With spare parts for one year
    2. One year spare parts and tools
