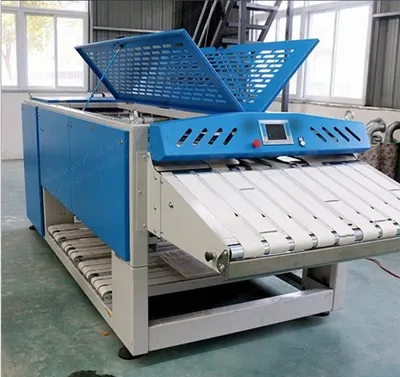

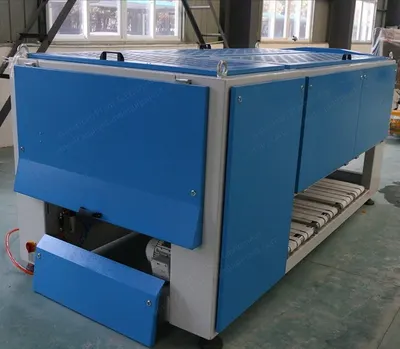

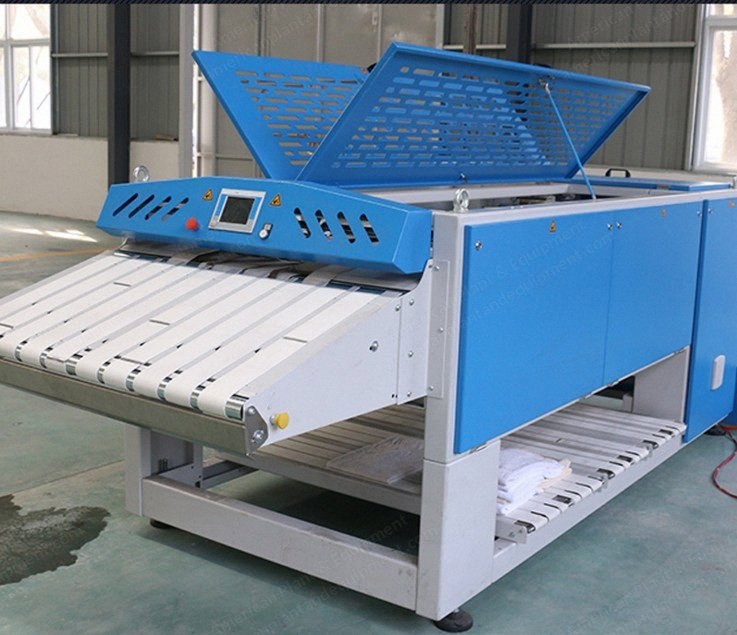

NovaStar, MU101, Towel Folding Machine, Max Width 950mm, 1400 pcs/hr (New)

NovaStar, MU101, Towel Folding Machine, Max Width 950mm, 1400 pcs/hr

Description

  1. Overview
    1. Uses large-screen dot matrix liquid crystal display and intelligent control system
    2. Uses highly intelligent infrared inspection system
    3. Control valve uses pneumatic control
    4. No pollution to the surrounding environment
    5. Machine uses encoder to control folding accuracy
  2. Products
    1. Small towel: 4 fold
    2. Big towel: 4 fold
    3. Floor mat towel: 2 fold
  3. Fold Dimensions
    1. Max width: 950 mm (big towel)
    2. Max width: 400 mm (small towel)
    3. Max length: 1900 mm (4 fold)
    4. Mini length: 600 mm (4 fold)
    5. Max width: 900 mm (2 fold)
    6. Mini length: 450 mm (2 fold)
  4. Storage Volume
    1. Small towel: 15 pcs
    2. Big towel: 10 pcs
    3. Floor mat towel: 15 pcs
  5. Specifications
    1. Max capacity: 1400 pcs/hr
    2. Conveyor speed: 34 m/min
    3. Air press: more than 0.5 mpa
    4. Voltage: 480 V
    5. Power: 0.4 kW
    6. Machine dimension: 2700 x 1725 x 1410 mm
    7. Machine weight: 510 kg
