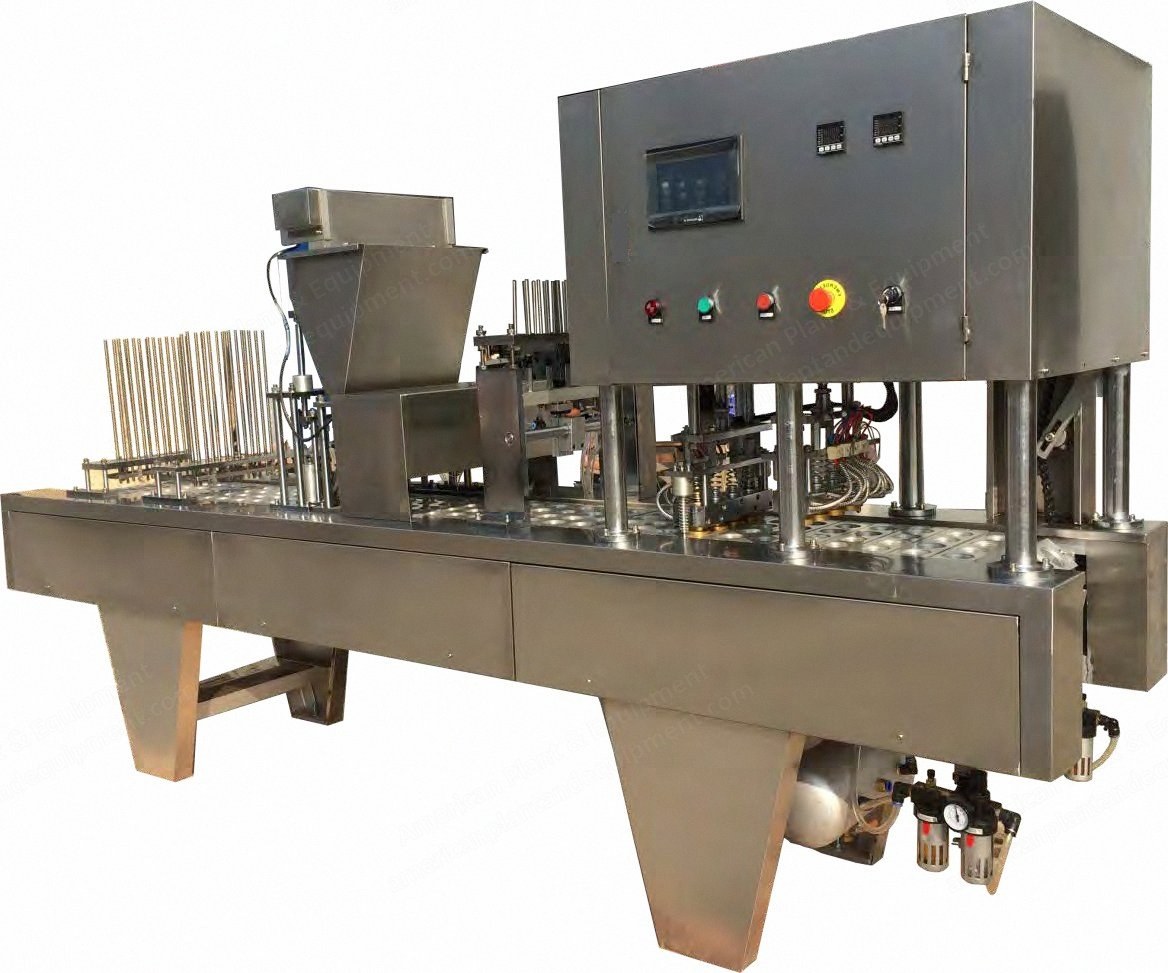

NovaStar, CF102, Linear Coffee Capsule Filling Sealing Machine, 3000 to 8000 Cups/h, 5 to 30ml Filling Capacity (New)

Name: NovaStar, CF102, Linear Coffee Capsule Filling Sealing Machine, 3000 to 8000 Cups/h, 5 to 30ml Filling Capacity
Brand: NovaStar
SKU: A-2584

‹ Go Back Next Product ›

Description

Overview
1. Speed: 3000 to 4000 cups per hour, 4000 to 5000 cups per hour, 5000 to 6000 cups per hour, 6000 to 7000 cups per hour, or 7000 to 8000 cups per hour
2. Filling capacity: 5 to 30 ml
3. Power: 4 kw, 4.5 kw, 5 kw, 5.5 kw, or 6 kw
4. Voltage: 220 volts and 50/60 hz
5. Air consumption: 0.65 m3/min, 0.68 m3/min, 0.70 m3/min, 0.73 m3/min, or 0.78 m3/min
6. Machine size: 3500 x 800 x 1750 mm, 3500 x 1100 x 1750 mm, 3500 x 800 x 1750 mm, 3500 x 1100 x 1750 mm, or 3500 x 1300 x 1750 mm
7. Machine weight: 800 kgs, 900 kgs, 950 kgs, 1000 kgs, or 1100 kgs
Features
1. The whole machine with advanced design, reasonable structure, reliable performance
2. Automatic operation, the production rate can be adjustable, simple and safe operation, increase productivity, reduce labor costs
3. Photocell eye calibration, ensure the accuracy of filling
4. Twice of sealing, the pressure of sealing can be adjustable. Can be sealed according to customer' requirements for easy to tear and not easy to tear, which embodies a higher level of human design
5. The sealing edges are smooth and flawless
6. The machine can be customized according to customer' needs and add other auxiliary functions

Additional Specifications

HS code	8422.30

Specifications

Capacity	3000 to 8000 cups/h
Features	Photocell eye calibration, twice of sealing, adjustable sealing pressure
Filling Capacity	5-30 ml

Dimensions

Dimensions	3500x1300x1750mm max
Height	1,750 mm
Length	3,500 mm
Weight	1,100 kg
Width	1,300 mm

Power & Electrical

Motor power	4-6 kW
Voltage	220 V
