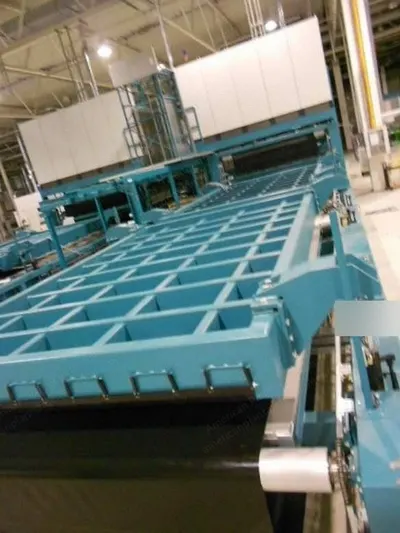

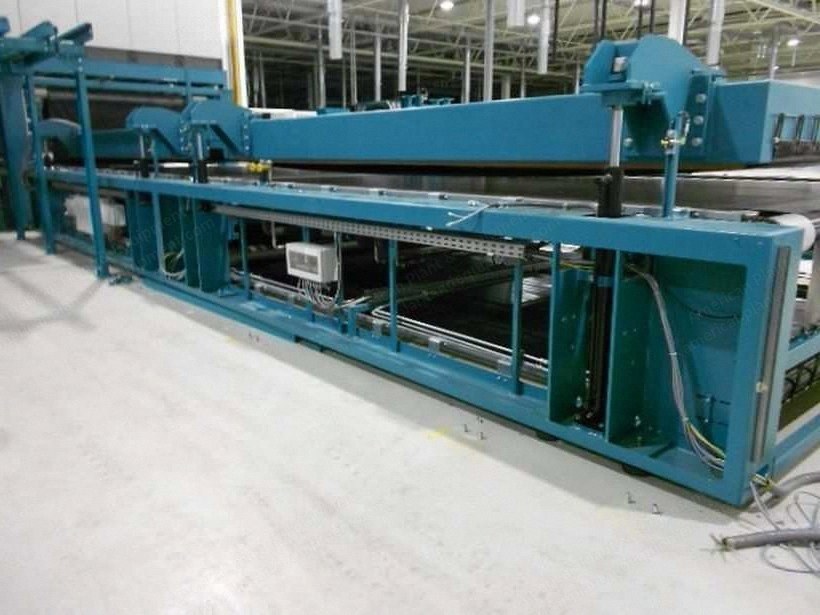

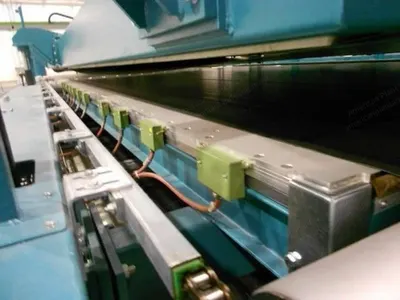

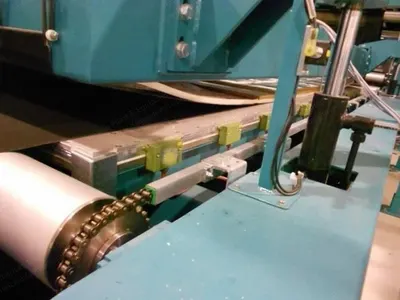

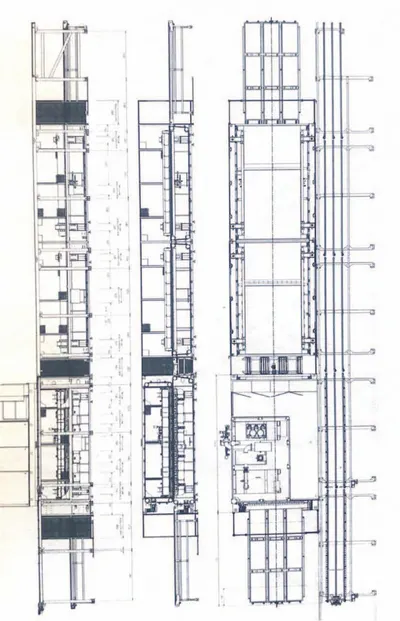

Description Overview Vacuum laminator Electrical Specifications Voltage: 3 x 400 (+ / - 5%) V / n / pe Frequency: 50 Hz Control voltage: 24 V dc Connected load: approx. 262 kW Current: 380 A Compressed Air Supply Pressure: 6 bar Compressed air consumption: 2000 nii / h Nominal diameter: 19.05 mm Vacuum System Number of vacuum pumps: 2 Suction capacity of rough vacuum pump: 630 m3 / h Suction capacity of high vacuum pump: 2000 m3 / h Performance Data Cycle time: variable Evacuation time: variable Heating time (from 60 °C to 140 °C): variable Dwell time: variable Cooling time (from 140 °C to 60 °C): variable Product insertion temperature: + 20 °C Ambient Conditions Permissible temperature range: + 10 to + 35 °C Permissible humidity range: 45 to 60 % Dimensions Vacuum Laminator Depth: 3700 mm Width: 5845 mm Height: 2300 mm Dimensions Pump Stand Depth: 3640 mm Width: 2480 mm Height: 1585 mm Chamber Dimensions Depth: 2400 mm Width: 4200 mm Height: 40 mm Working height: 1000 mm Dimensions Heating Press Depth: 3700 mm Width: 4970 mm Height: 2300 mm Dimensions Cooling Press Depth: 3700 mm Width: 4970 mm Height: 2300 mm Weights Laminator: 13500 kg Heating press: 4100 kg Cooling press: 4100 kg Pump stand: 2800 kg Infeed table: 350 kg Intermediate table: 180 kg Outfeed table: 350 kg Control cabinets: 750 kg Media Specifications Compressed Air / Process Air Particle density: < 10 mg / m3 Particle size: < 40 diameter Pressure dew point: 3 °C Mineral oil content: < 5 mg / m3 Bio oil content: < 0.1 mg / m3 Cooling Water Inlet temperature: 15 to 25 °C Inlet pressure: < 6 bar Differential pressure: 3.5 bar Ph value: between 7.5 to 8.5 Conductivity: 600 diameter / cm Carbonate hardness: < 220 mg / 1 (ppm)
