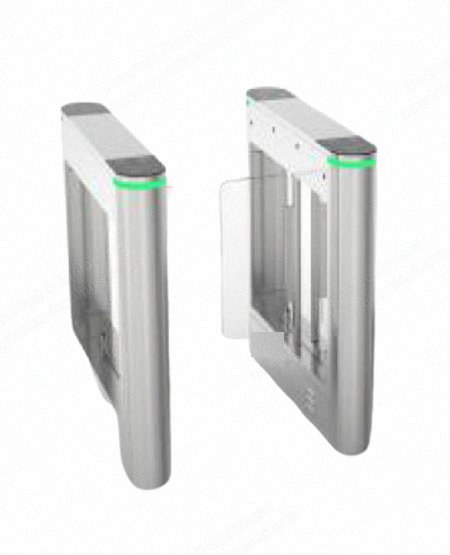

NovaStar, MS102, Indoor Security Gate, 304 Stainless Steel, 600mm Channel Width (New)

Description

Overview
1. Gate indoor unit
2. Size: 1500 x 120 x 1020 mm
3. Material: 304 stainless steel, acrylic
4. Channel width: standard 600 mm (≤900 mm can be customized)
5. Frame thickness of outer box: 1.5 mm + 1.2 mm
Drive and Motor
1. Drive motor: DC 24 V brushless motor, low noise
2. Power: 60 to 90 W
Operation and Traffic
1. Traffic direction: one-way direction or bi-direction
2. Passing speed: normally open mode 35 to 40 persons per minute; normally closed mode 30 to 35 persons per minute (actual speed depends on passing environment and personnel situation)
3. Opening method: ID/IC card reading and other reading, infrared induction automatic opening, button opening
4. Opening signal: dry contact signal
Safety and Protection
1. Protection function: clutch anti-collision, infrared anti-pinch, illegal intrusion infrared alarm
2. Infrared quantity: 6 pairs
Durability and Environment
1. Life: not less than 9 million times
2. Applicable temperature: -20 to +75 °C

HS code	8543709990

Capacity	30-40 people/minute
Material	304 stainless steel, acrylic

Motor power	0.06-0.09 kW
Voltage	24 V
