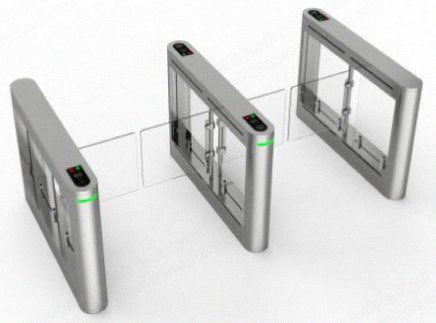

NovaStar, MS105, Outdoor Swing Gate, 1600x160x1000mm, SUS 304 Stainless Steel, DC Brushless Motor (New)

NovaStar, MS105, Outdoor Swing Gate, 1600x160x1000mm, SUS 304 Stainless Steel, DC Brushless Motor

Description

  1. Overview
    1. Model type: single core/double core
    2. Size: 1600 x 160 x 1000 mm
    3. Pass width: standard 600 mm, max 1200 mm
    4. Pass rate: 30 to 35 persons per minute
    5. Operating time: adjustable, fastest 0.5 s
  2. Specifications
    1. Material: SUS 304 brushed stainless steel, top cover 2.0 mm, whole body 1.5 mm, acrylic arm 10 mm
    2. Drive unit: DC brushless motor
    3. Input voltage: AC110/AC220 ± 10%, 50 to 60 Hz
    4. Protection level: IP55
    5. Communication interface: RS485, TCP/IP interface
    6. Number of sensors: 6 groups, can be extended to 10 groups
