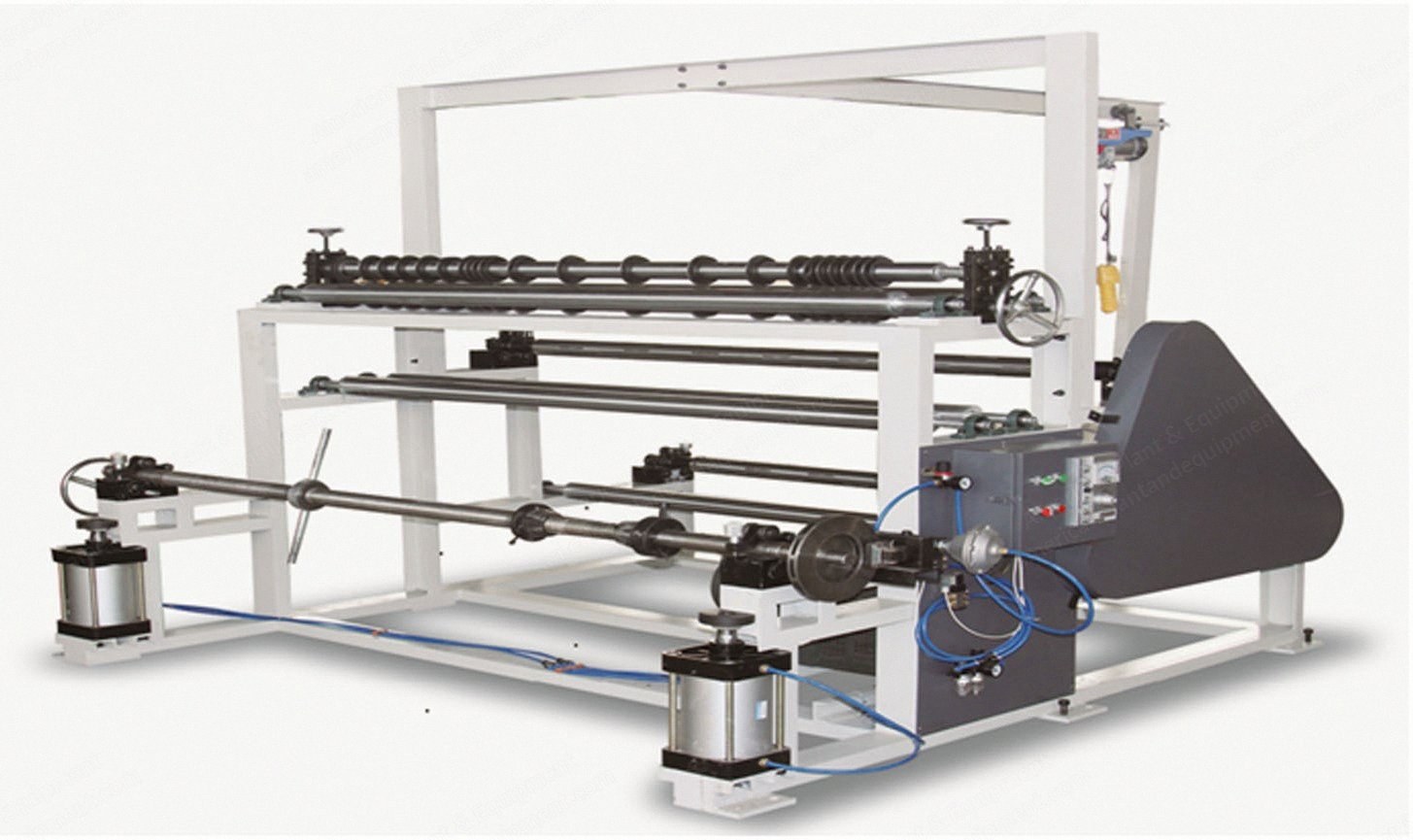

NovaStar, SR101, Slitter Rewinder, 1600mm Width, 5.5kW (New)

NovaStar, SR101, Slitter Rewinder, 1600mm Width, 5.5kW

Description

  1. Overview
    1. Width of base paper: 1600 mm
    2. Diameter of base paper: Φ1200 mm
    3. Diameter of rewinder: Φ750 mm
    4. Slitting width: >30 mm
    5. Slitting capability: 80 to 600 g
    6. Slitting knife: 18 sets
    7. Rewinding way: gas up outside the closed
    8. Speed of adjust and control: magnetic force
    9. Speed of slitting: 1000 to 150000 mm/min
    10. Mainframe wheeling speed: 1400 r/min
    11. Transmission mode: the belt
    12. Rewinding roll: gas rose axis
    13. Rewinding of double air rising shaft: double cutter division
  2. Specifications
    1. Motor power: 5.5 kW
    2. Power input: 220 V / 60 Hz
    3. Main motor: Yongshun from Hengshui
    4. Bearing: Haerbin
    5. Charging: pneumatic
    6. Blanking: electric
    7. Tension adjust: pneumatic brake
    8. Application tools: pneumatic runner, allen wrench, air tap 2
  3. Dimensions and Weight
    1. Unwinding machine L x W x H: 2600 x 2500 x 2200 mm
    2. Upper slitter specifications: 2 x 105 x 75 mm
    3. Bottom slitter specifications: 2 x 105 x 75 mm
    4. Total weight: 1310 kg
  4. Operator Requirements
    1. Operator: 1
