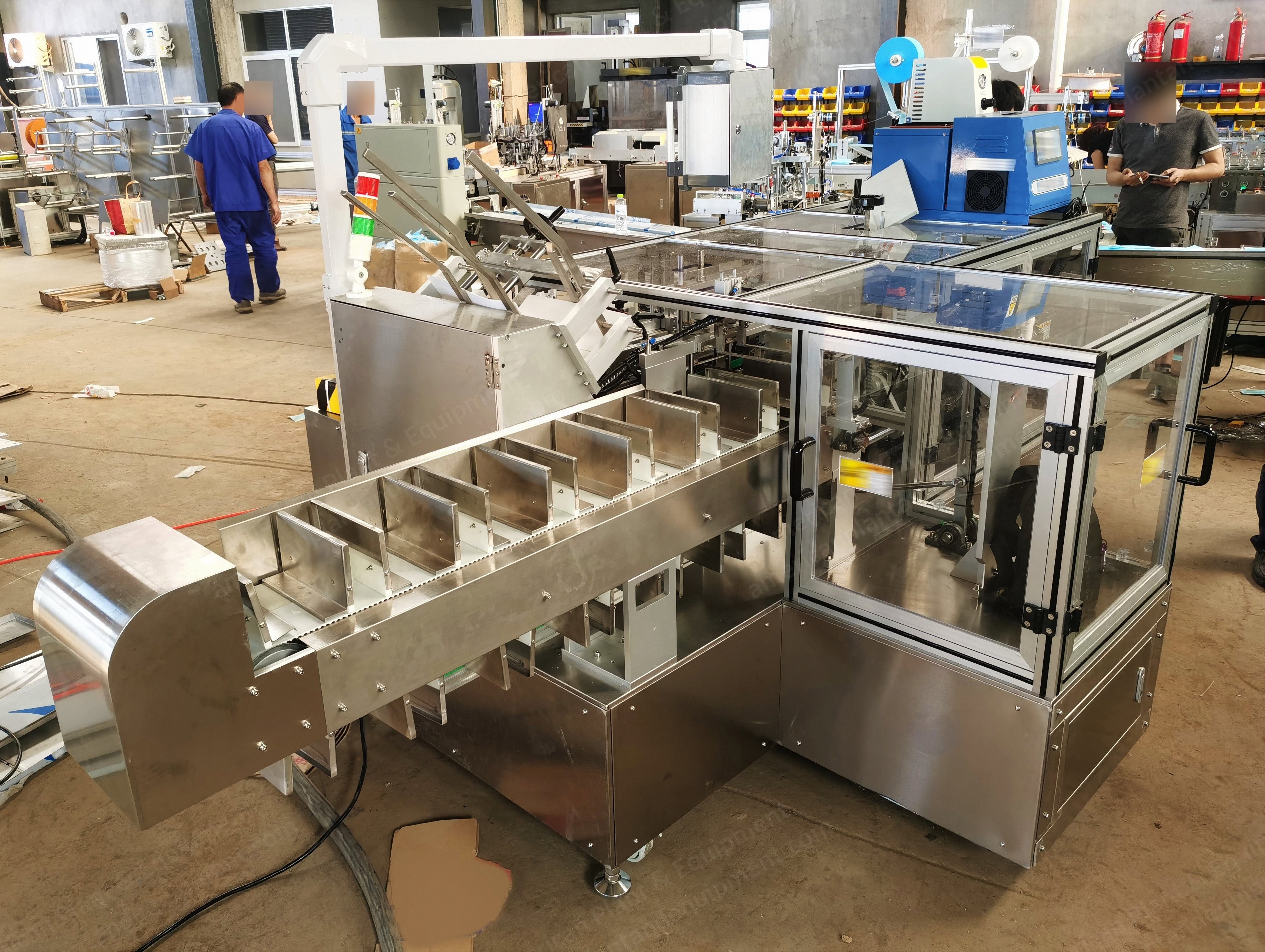

NovaStar, CC105, Automatic Paper Box Packing Machine, 30 to 40 Boxes/Min, 3500x1700x3500mm (New)

NovaStar, CC105, Automatic Paper Box Packing Machine, 30 to 40 Boxes/Min, 3500x1700x3500mm

Description

  1. Overview
    1. With box opening, loading, folding, spraying and sealing
    2. Suitable for multi-variety and multi-standard carton packaging machines
    3. Equipped with automatic high-speed hot melt machine with 2 spray guns
    4. Controlled by PLC microcomputer with automatic alarm and fault prompt
  2. Specifications
    1. Automatic feeding of boxes to the machine
    2. Masks per box: 20 or 50 pieces, depending on box dimensions
  3. Features
    1. PLC microcomputer automatic control
    2. Incorporates special interface operating system which automatically displays parameters for cartoning speed, quantity, and cause of failure
    3. Self-lubricating system
    4. Machine frame constructed with high-quality stainless steel and aluminum
    5. Manual and automatic conversion function
    6. Optional hot melt adhesive machine
  4. Technical Parameters
    1. Packing form: horizontal cartoning
    2. Packing speed: 30 to 40 boxes per minute
    3. Process requirements: automatic box opening, packing, glue spraying, box sealing
    4. Incoming direction: from left to right
    5. Voltage: 220 volts, 50/60 Hz (or as per customer)
    6. The indentation of the carton is generally 0.4 mm deep, and the carton needs to have a pre-folded effect. If the box is opened manually, it cannot be formed, and the machine cannot open the box.
