NovaStar, Pillow Filling Production Line, 4 Nozzles, 350 to 550kg/h, 28.8kW
Scroll to zoom
100%
Description
Overview
Four-nozzle pillow filling machine suitable for opening and processing fiber raw material, filling pillow core and cushion.
Characteristics: less investment, high efficiency, simple operation, with frequency conversion device.
Raw material requirements: fibers above 0.78 denier, can be opened at one time.
Specifications
Overall dimensions: automatic cotton feeding part 5000 x 1100 x 2350 mm, opening part 2400 x 1500 x 1350 mm, feeding part 1100 x 600 x 1000 mm, material box part 1800 x 1250 x 180 mm, filling nozzle 1000 x 600 x 1000 mm, control box 800 x 600 x 1260 mm.
Power: 28.8 kW.
Voltage: 220 V / 60 Hz.
Output: 350 to 550 kg/h.
Net weight: 3200 kg.

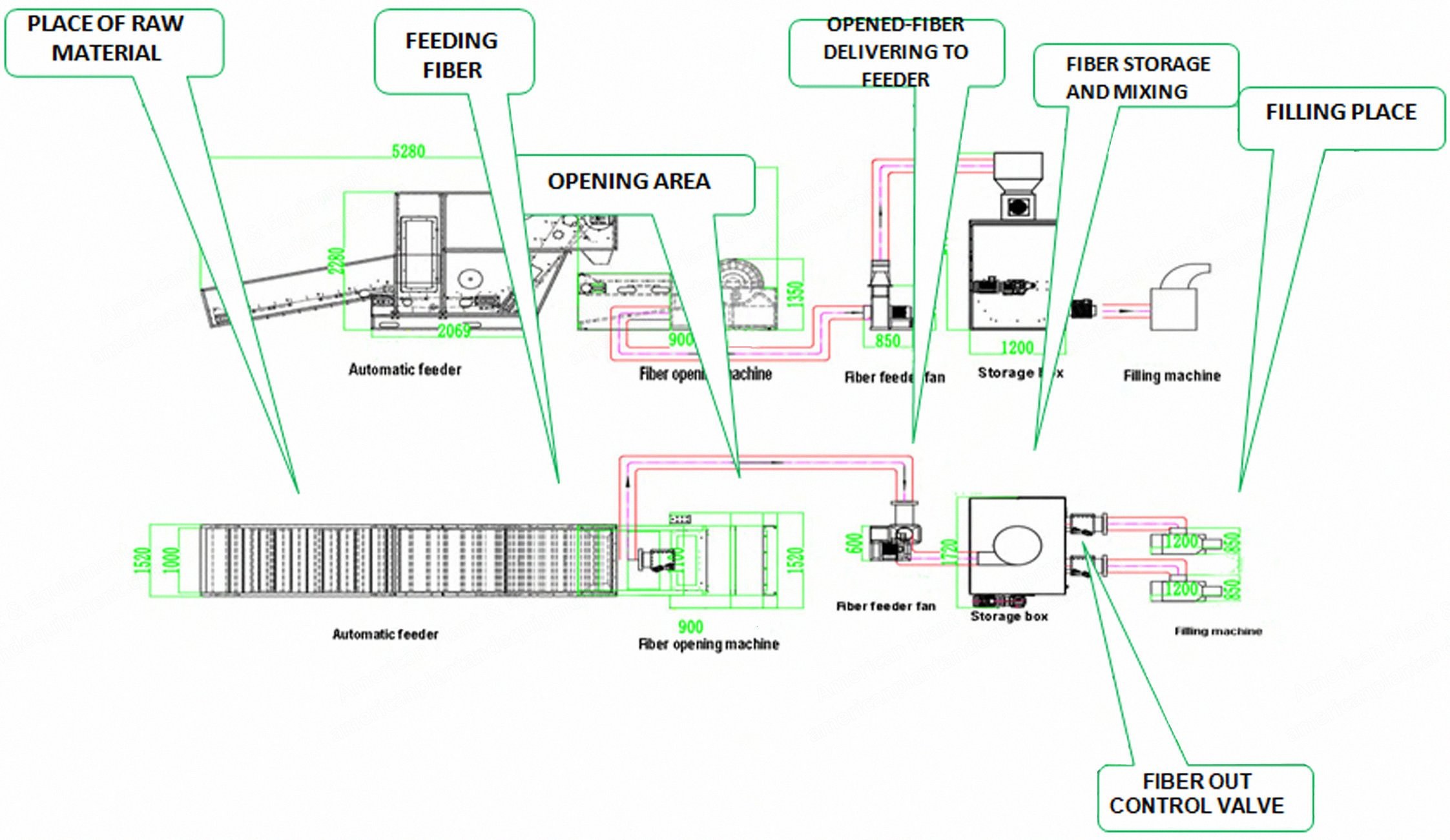

Technological Process
Put the whole package of fiber raw material into the automatic cotton feeder, feed that into the opener at a constant speed, and send the opened chemical fiber cotton into the fiber box for manual filling.
