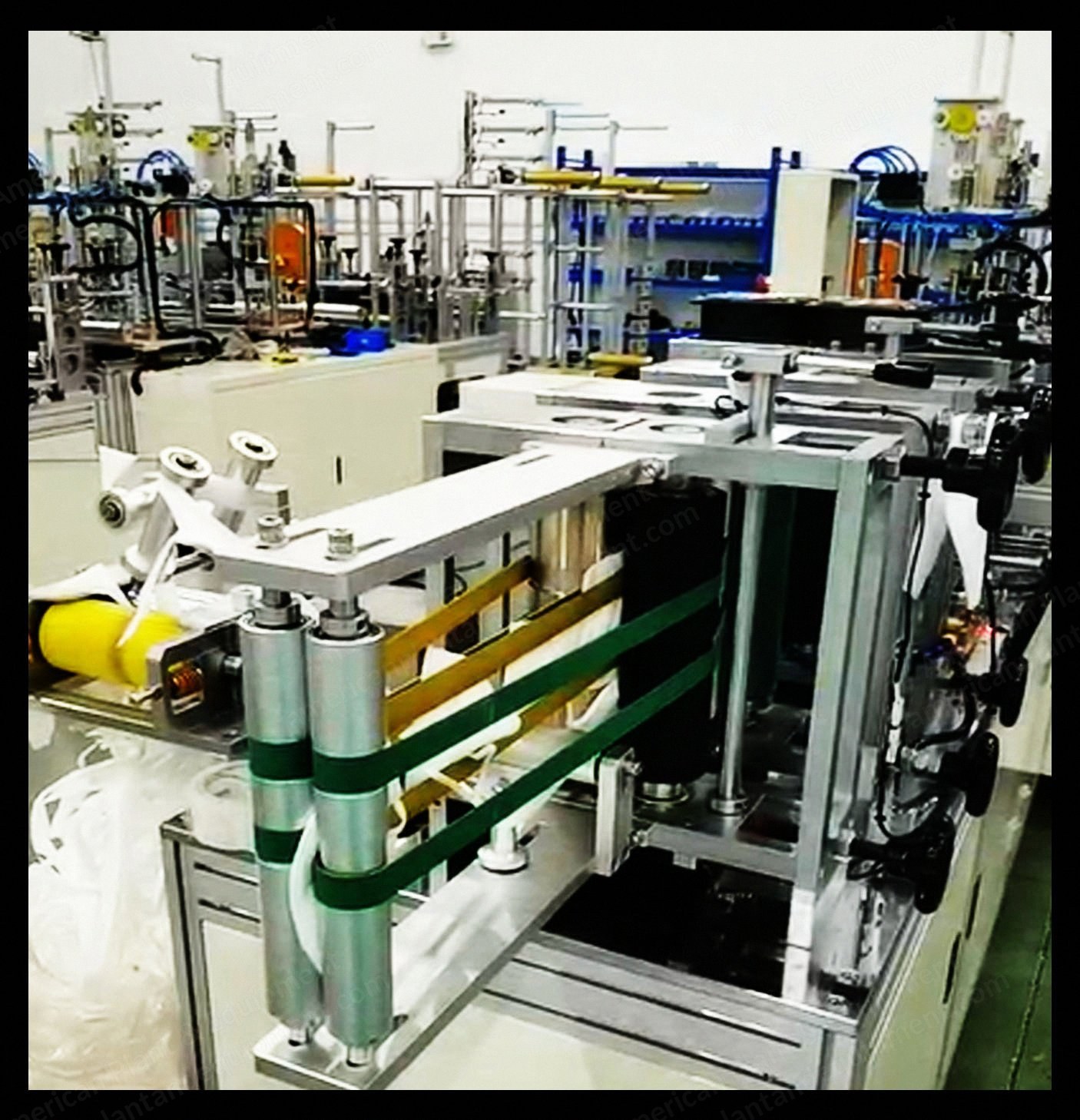

NovaStar, FM146, Automatic FM146 Mask Machine Line, Duck Bill Type, 40 to 45 pcs/min, 4 Ultrasonic Generators (New)

NovaStar, FM146, Automatic FM146 Mask Machine Line, Duck Bill Type, 40 to 45 pcs/min, 4 Ultrasonic Generators

Description

  1. Overview
    1. Capacity: 40 to 45 pieces per minute
    2. Four ultrasonic generators
  2. Specifications
    1. Equipment weight: ≤6000 kg, ground bearing: ≤500 kg/m²
    2. Working power supply: equipment 220 V / 60 Hz, rated power is about 17 kW; the whole line is 12 kW
    3. Compressed air: 0.5 to 0.7 MPa, the flow rate is about 300 L/min
    4. Operating environment: temperature 10 to 35 °C, humidity 5 to 35% HR, no flammable, corrosive gas, no dust (the cleanliness is not less than 100,000 grades)
  3. Dimensions
    1. Film machine x 1 set: 1450 x 920 x 1350 mm
    2. Ear strap machine x 3 sets: 850 x 550 x 1400 mm each
    3. Banding machine x 2 sets: 980 x 430 x 1100 mm each
    4. Feeding material frame x 1 set: 3500 x 2050 x 950 mm
  4. Weight
    1. Total volume weight: 2128 to 2300 t
