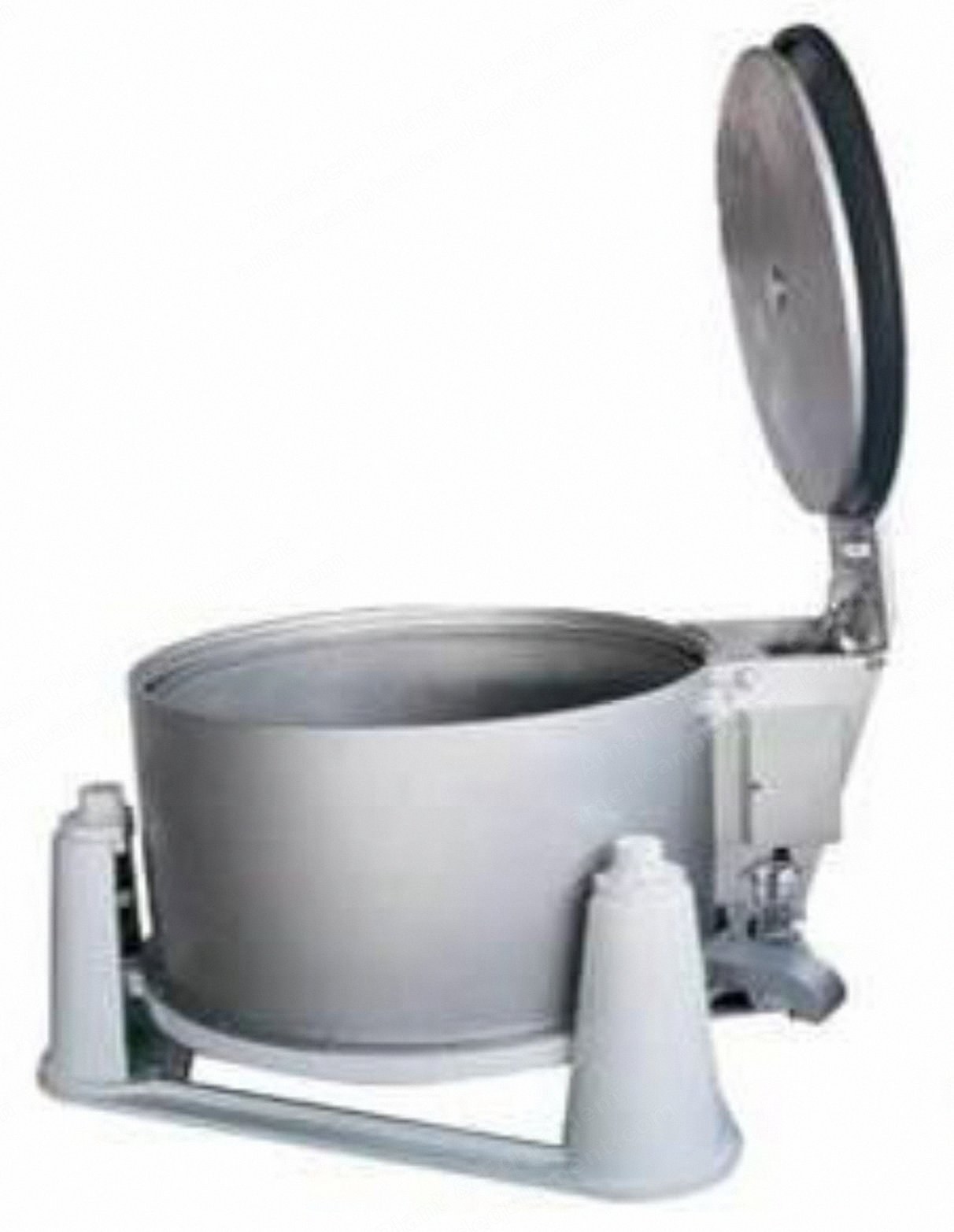

Centrifugal extractor used to predry all kinds of fibers after dyeing

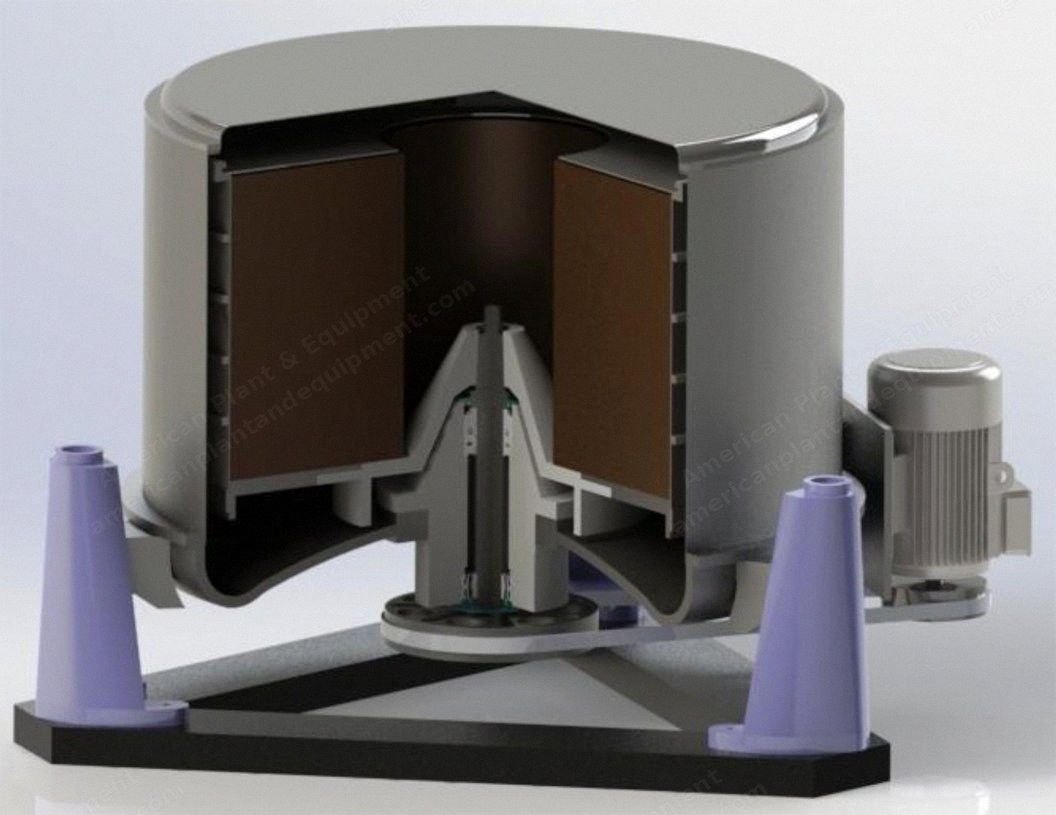

Modular structure
Specifications
Basket diameter: Ø500 to Ø1800 mm
Basket depth: 750 mm
Rolling basket: Aisi304l stainless perforated steel
External basket: Aisi304l stainless steel
Basket thickness: 4 mm
Outer basket thickness: 4 mm
Drive motor: W/h speed 1500 rpm
Strength circle (used to increase the strength of the inner basket rotating part): 20 x 20 Aisi304l stainless plate (4 pieces)
Bearing block: 3 pieces, Skf/Fag bearing
Speed control: Inverter control
Breaking: Inverter control external breaking system
Machine Description
Machine rests on hardened swing joints and steel springs on three legs
Incorporates two mechanical and dynamic balance switches; if unbalance occurs, the machine reduces its speed and gives an alarm

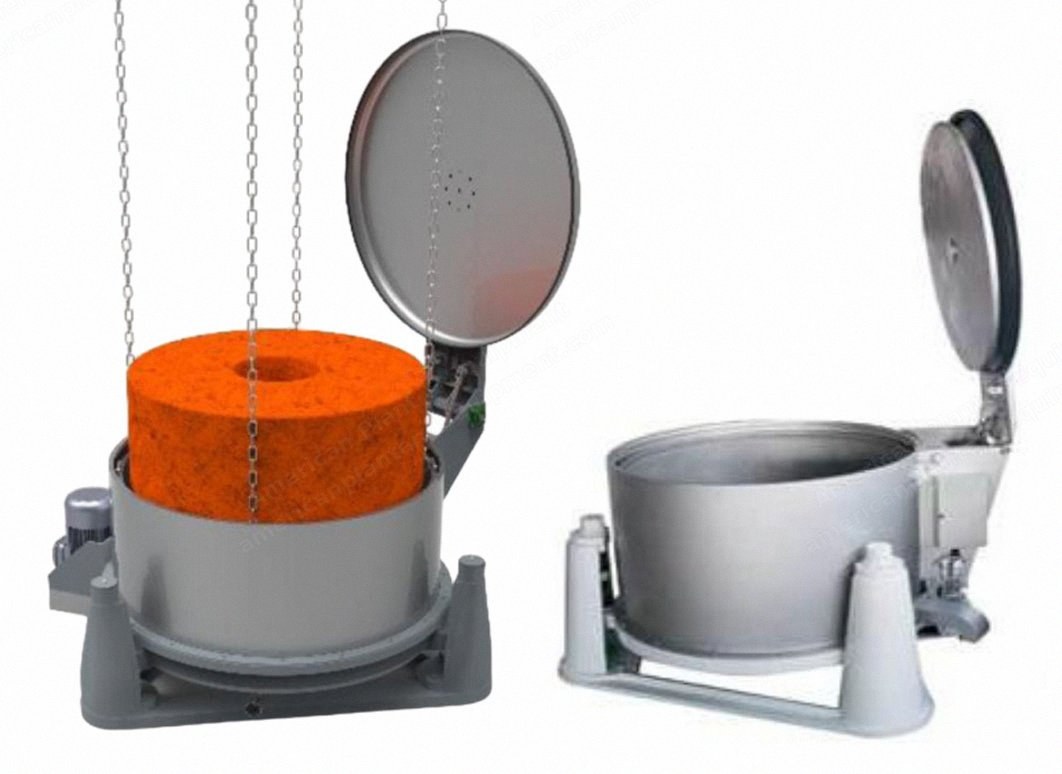

When machine is loaded, the cover can be opened and closed manually
It brakes automatically after squeezing and the cover is opened pneumatically
The working time of the machine can be adjusted to the desired values from the control panel
Machine operation performs the operations fully automatically, equipped with various operator alerts
Control panel is made of ground stainless steel
External basket is made of stainless steel; it can be mounted and disassembled on the bottom table
Inner basket is made of stainless steel material, drilled in suitable diameter and pitches
Machine legs: the legs on which the machine body is mounted are suspended with specially designed springs and have the ability to absorb vibrations that occur; foot shaft and materials are made of specially processed high strength steel
Covers: made of stainless steel; they automatically open and close with a pneumatic piston; the machine cannot operate unless the cover is closed and the cover cannot be opened before the machine stops
Safety systems: it has a vibration sensor and a safety system to prevent excessive vibrations
Electro Pneumatic Control Panel
Power control equipment with motor protection by magneto-thermal switches
Low-power auxiliary circuits
Electro valves and pneumatic control apparatus
Construction is made of stainless steel
Process control and buttons, signaling lamps and summary display
