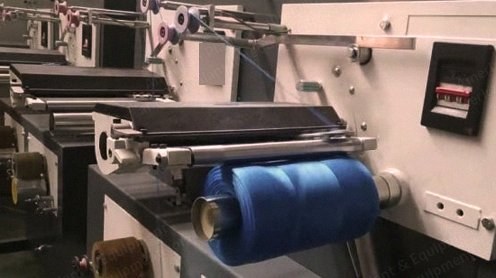

This machine is suitable for all kinds of ropes, ribbons, and wires.
It is used with lace machines, high-speed knitting machines, and similar equipment.
Variable frequency speed range is 200 to 4800 rpm, allowing speed selection according to the product.
Specifications
Model WN105: frequency changer, head speed 2/4800, size 1100 x 800 x 700 mm, power 0.55 kW, bobbin size L30 to 142 mm and D35 to 48 mm, weight 140 kgs, voltage 220V.
Model P 80/90-2: frequency changer and lifting function, head speed 2/4800, size 1200 x 900 x 700 mm, power 0.55 kW, bobbin size L30 to 142 mm and D35 to 48 mm, weight 150 kgs, voltage 220V.
Model P 110/130-3: frequency changer, head speed 2/4800, size 1200 x 1000 x 800 mm, power 0.55 kW, bobbin size L170 to 215 mm and D55 to 75 mm, weight 155 kgs, voltage 220V.
Model P 110/130-4: frequency changer and lifting function, head speed 2/4800, size 1300 x 1000 x 800 mm, power 0.55 kW, bobbin size L170 to 215 mm and D55 to 75 mm, weight 165 kgs, voltage 220V.
