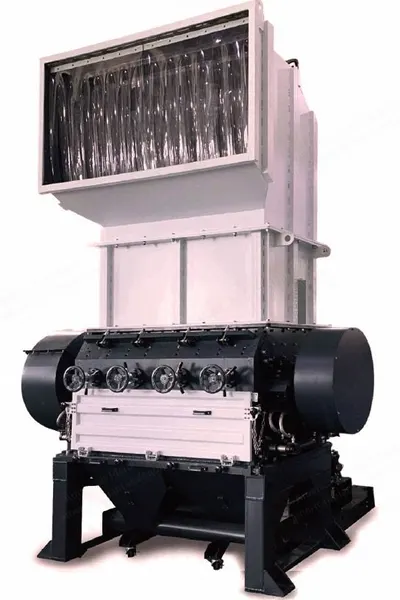

NovaStar, SG101, Wet Crushing Granulator, 1500 to 4000 kg/hr Capacity, 90 to 250 kW Power (New)

NovaStar, SG101, Wet Crushing Granulator, 1500 to 4000 kg/hr Capacity, 90 to 250 kW Power

Description

  1. Features
    1. Capable of wet crushing which causes friction washing to PET flakes; water flushing cools down granulator blades and reduces the temperature of granulator chamber and blade abrasion, reduces PET powder and the loss of PET flakes; this process creates better condition for PET flakes hot washing

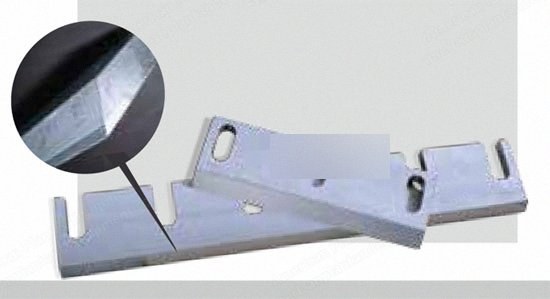

    2. Granulator chamber is made of steel of high hardness; convenient for daily maintenance
    3. Incorporates the latest V-shaped cutting technology; shaft rotation transports PET bottles to the center of granulator chamber, increasing the service life of granulator chamber by reducing abrasion
    4. A safety curtain is equipped on the inlet hopper of granulator, preventing PET flakes from splashing out when the granulator is under operation
    5. Granulator pulley is connected to the drive shaft through a V-shaped belt
    6. Feeding hopper and screen frame are operated by hydraulic device
  2. Specifications
    1. Model 100: power 90 kW, 5 x 2 rotary blades, 3 x 2 fixed blades, chamber size 700 x 1000 mm, capacity 1500 kg per hour
    2. Model 150: power 110 kW, 5 x 2 rotary blades, 3 x 2 fixed blades, chamber size 700 x 1500 mm, capacity 2500 kg per hour
    3. Model 160: power 200 kW, 5 x 2 rotary blades, 3 x 2 fixed blades, chamber size 900 x 1600 mm, capacity 3500 kg per hour
    4. Model 200: power 250 kW, 5 x 2 rotary blades, 3 x 2 fixed blades, chamber size 900 x 2000 mm, capacity 4000 kg per hour
