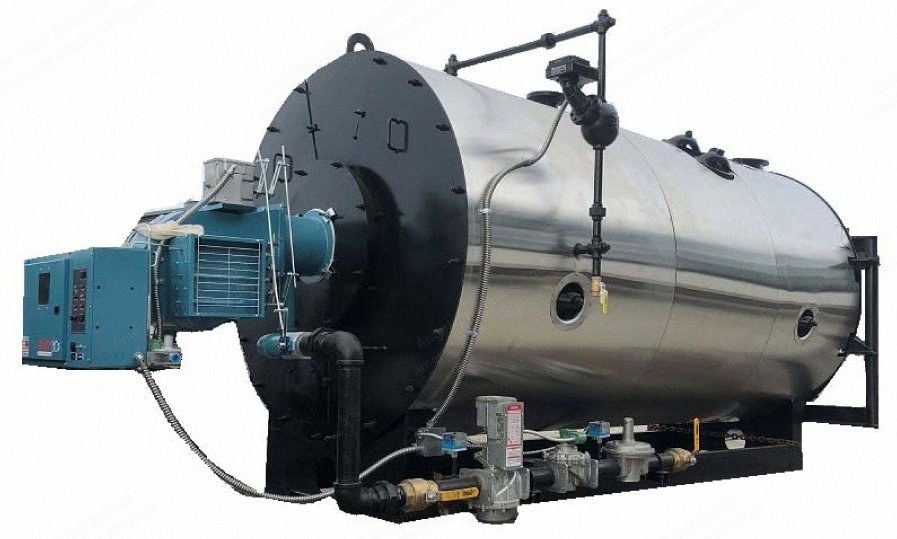

York-Shipley, YS5-200-150ST, 200 HP, 150 PSI, 3-Pass Dryback Steam Boiler (New)

York-Shipley, YS5-200-150ST, 200 HP, 150 PSI, 3-Pass Dryback Steam Boiler

Description

  1. Overview
    1. Design: High efficiency 3-pass dryback
    2. Capacity: 200 boiler hp
    3. Heating surface: 5 square ft. per boiler hp
    4. Max. output: 3,129 kgs per hour
  2. Specifications
    1. Pressure: 150 psi steam
    2. Gas input (cfh): 8,400 max
    3. Electrical: All voltages, 3-phase
    4. Length: 227 inches
    5. Width: 78 inches
    6. Height: 87 inches
  3. Burner and Controls
    1. Burner models: Webster JB series
    2. Burner listing: UL and CSD-1
    3. Modulation: Full modulation
    4. Flame control: Honeywell RM7800
    5. Primary lwco: MM 157-SRL
    6. Aux lwco: MM RS-1-BR-1
    7. Lwco relay: Warrick 26MB1A0E
  4. Casing
    1. Polished stainless
  5. Connection Sizes
    1. Steam: 4” 300# flange
    2. Stack: 14.5” flange
    3. Blowdown/drain: 1.5” npt
    4. Feedwater: 1.5” npt
    5. Surface blow: 1.5” npt
