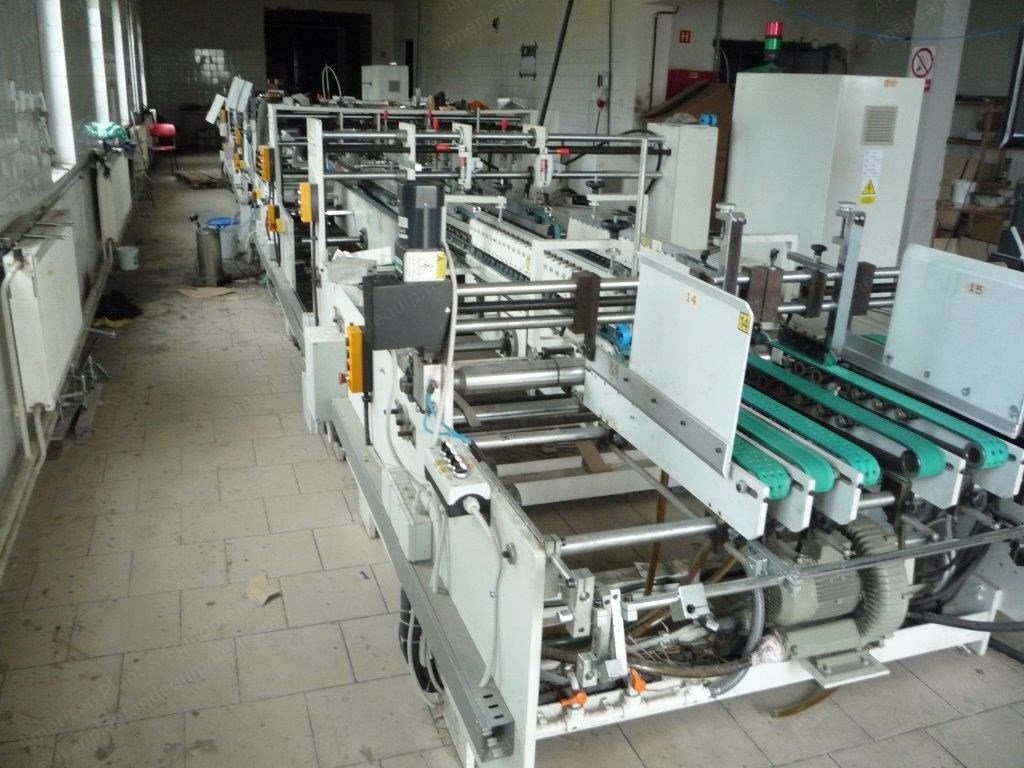

Anden, 1350 FS, 2012, Width 1350mm, 200 to 500 GSM, 4+6 Point Gluing, Speed 200 m/min

Anden, 1350 FS, 2012, Width 1350mm, 200 to 500 GSM, 4+6 Point Gluing, Speed 200 m/min

Description

  1. Overview
    1. Year 2012
    2. Maximum blank width 1350 mm
    3. Material - 200 to 500 gsm board and e, c, b corrugated
    4. Speed 200 m/min
    5. Servo motor
  2. Loading and Feeder
    1. 7 feeding belts
    2. 2 feeding guides
    3. 2 side plates
  3. Gluing and Folding Capabilities
    1. One point, two point (patent bottom), three point, 4+6 point gluing (crashlock-bottom)
    2. Double wall boxes
    3. 4 wheels top glue system (2 lower and 2 upper gluing wheels)
    4. Pre-break station
    5. Folding station
    6. Plasma surface processor – 1 gun
    7. Cold glue system Robatech (Swiss made)
    8. Doublesheet control
  4. Delivery and Controls
    1. Counter and dispenser in delivery
    2. Apple iPod remote control, videocamera by gluing up to pressing section
