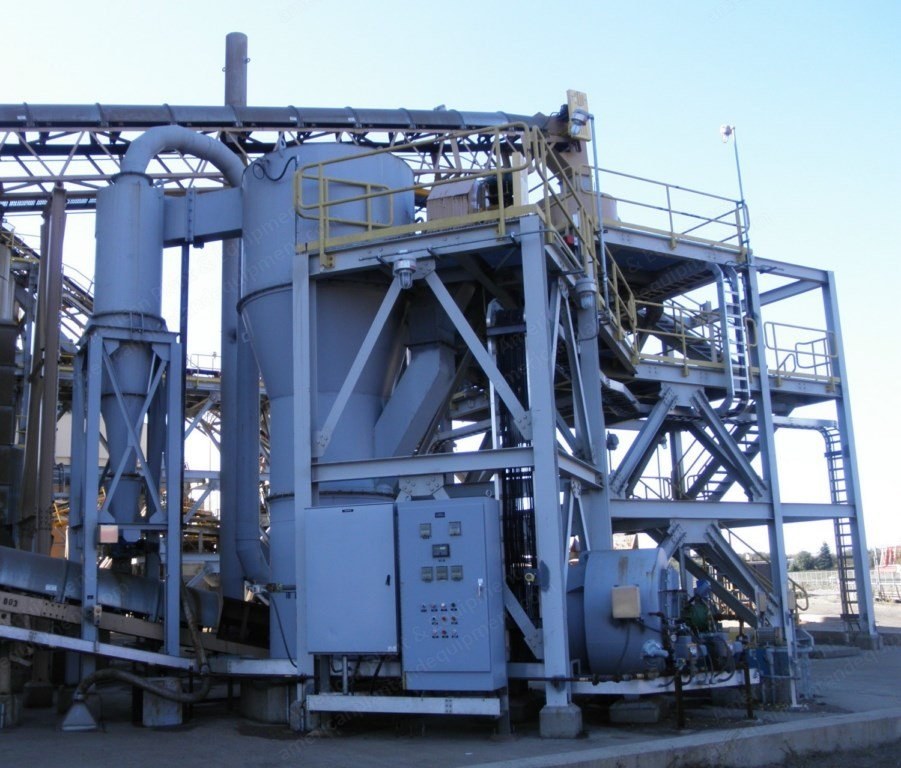

Description Overview Fluid bed dryer system 5 ft diameter x 25 ft overall height Rated for 5 tons/hr Drying system was commissioned and never put into service Very good condition Burner Assembly Includes Hauck model number BBG2104 natural gas burner assembly With Maxon shut off valves Fans Dryer includes Twin City 3 hp combustion air fan 40 hp fluidizing air fan Cyclone and Scrubber Dryer is connected to 36 in diameter x 20 ft overall height cyclone with bottom rotary airlock valve Top of cyclone is connected to Sly, model number 140 "impinjet" wet scrubber with 20 hp exhaust fan Feed System Dryer is fed by Meco belt conveyor, 18 in wide x approx. 85 ft long, with covers Feeds product to Columbian Tectank bin, measuring 6 ft diameter x 4 ft high 130 cf capacity dry material, drops through Outotec rotary table feeder to belt conveyor Meco conveyor, 18 in wide x approx. 45 ft long inclined belt conveyor, with covers Conveyor feeds to bucket elevator, 97 ft high, 12 in x 32 in bolted housing, belt driven with steel buckets
