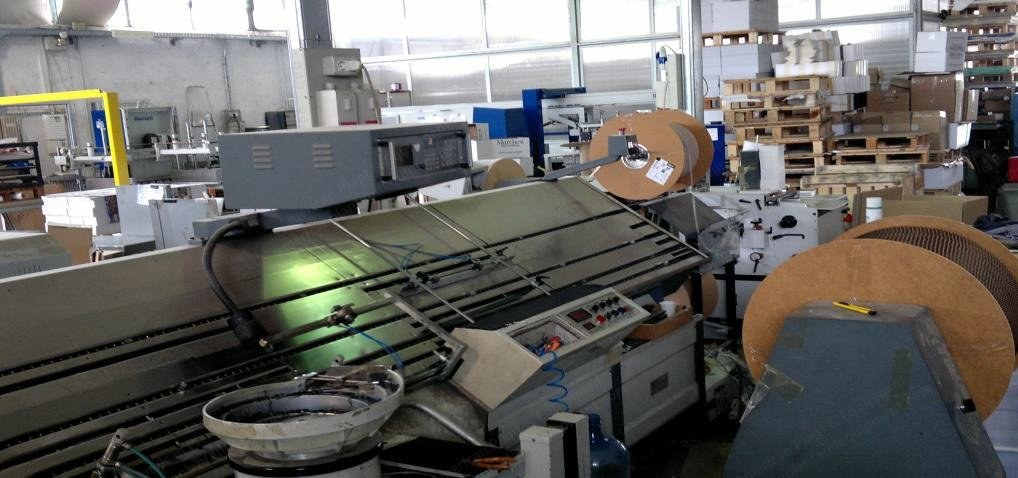

Description Overview Automatic punch bind machine for calendar Year 2001 Uses wires on spools Can be programmed for continuous binding Two pieces hanger Can be connected to any kind of collator Specifications Maximum binding size: 600 x 700 mm Minimum binding size: 120 x 100 mm Maximum punching thickness per stroke is 4.5 mm, depending on pitch, materials and width of calendars Standard binding diameters: 1/4 in and 5/16 in Standard pitch: 3:1 in Speed variable 500 to 2300 pieces/hour depending on size, thickness and quality of materials Automatic hanger feeder for 70 mm hangers Automatic device for hangers from 100 mm to 450 mm or for 100 mm to 300 mm Power supply: 400 V 3-phase 50/60 Hz + N Power drive: 9 kW Compressed air supply: 6 atm – 10 mc/hour Dimensions Height: 1300 mm Diameter: 2400 mm Length: 4500 mm
