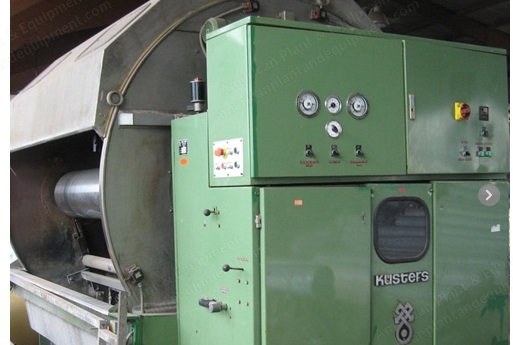

Kuesters, Jumbo 133, 1991, 2200mm Working Width, Simplex Continuous Tumbler Dryer, 600kg Capacity (New)

Kuesters, Jumbo 133, 1991, 2200mm Working Width, Simplex Continuous Tumbler Dryer, 600kg Capacity

Description

  1. Overview
    1. Kuesters jigger-jumbo 133 dyeing machine
    2. Continuous tumbler dryer machine simplex
    3. Automatic dyeing machine jumbo 133 268.17
    4. Manufacturer: Kuesters, Krefeld, Deutschland
    5. Model: Jumbo 133 and Simplex
    6. Year: 1991
    7. Category: Dryer finishing
  2. Specifications
    1. Filling weight: 600 kg (1322.4 lb)
    2. Roller width: 2400 mm
    3. Working width: 2200 mm
    4. Automatic way of dyeing
    5. Preparing dyes and dye staffs in separate box with pump for pumping in box for dyeing
    6. Max diameter of fabric winding of shaft: 1250 mm
    7. Average weight of winding fabric: 600 kg
    8. Volume of box: approx. 2000 L
    9. Box is closed by cover
    10. The machine is started by electromotor through belts on working rollers
    11. Year of production: 1989
    12. Producer: Kuesters, Krefeld, Deutschland
    13. Continuous tumbler dryer machine type "Simplex"
    14. Roller width: 2800 mm
    15. Capacity: 150 kg/h H2O
    16. Working temperature: 160/170 °C
    17. Compressed air: 0.36 Nm3/h
  3. Condition
    1. State: like new
    2. At local norms: yes
