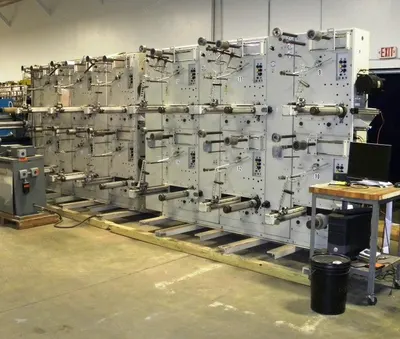

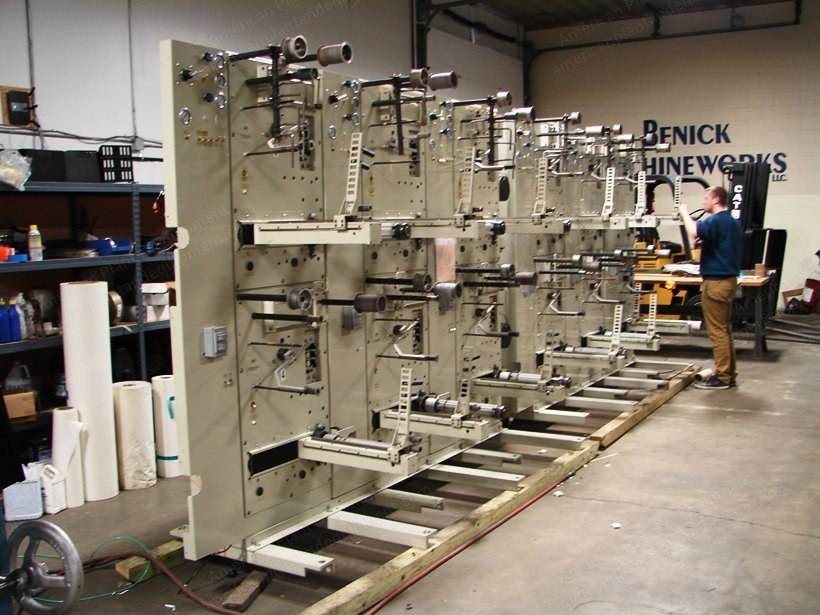

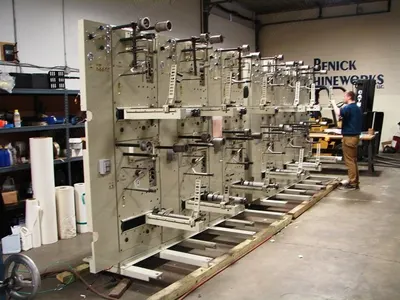

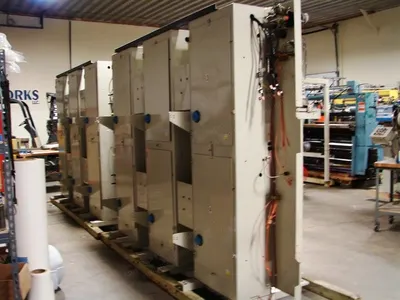

Leesona Spooling Line, 42 Heads, 1524mm Width, 2004

Description

Overview
1. Maker: Leesona
2. Width: 1524 mm
3. Year rebuilt with new controls: 2004
Specifications
1. 16 in wide x 24 in rewind diameter
2. Maximum slit width of 1.5 in
3. Maximum line speed is 1000 fpm
4. Rewind spooler heads come with packer rolls
5. Drives are Eurotherm/Parker AC vector
Rewind Tension Control
1. Rewind tension is controlled with a pivot type compensator control system to incorporate pneumatic, mechanical and electronic systems to precisely match winding speed of take-up winder with slitter supply speed
Traverse Control
1. Traverse control is achieved with individual microprocessor controlled micro-stepping drive/motor paired with a precision long life reversing ball screw device for controlling all traverse motions
2. Exact tape positioning accomplished via closed loop control system with encoder that automatically adapts through impulse-scanning to the pre-set wind ratios based on winding speed
Winding Patterns
1. Parallel
2. Step
3. Precision crosswind
4. Taper-biconical single or dual sided and pancake

Dimensions	1524mm width
Maximum Slit Width	1.5 inches
