Babcock, 5000, 1992, 2000mm Working Width, 8 Chambers, Gas Heated, with Mahlo Weftstraightener

Babcock, 5000, 1992, 2000mm Working Width, 8 Chambers, Gas Heated, with Mahlo Weftstraightener

Description

  1. Overview

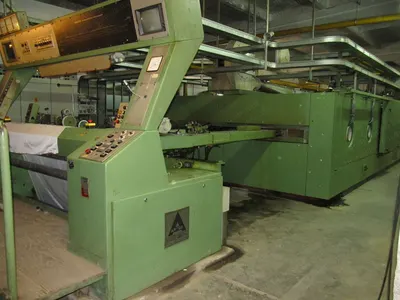

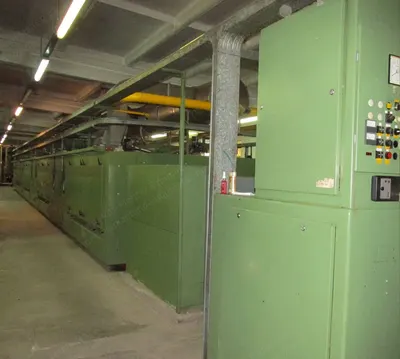

    1. Babcock stenter frame model 5000
    2. Year of manufacture: 1992
    3. Working width: 2000 mm

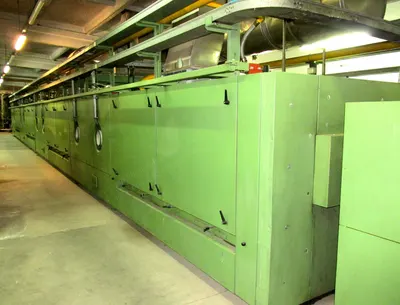

    4. 8 chambers
    5. Total length of drying section: 24000 mm
    6. Horizontal pin chain
    7. Conical input field length: 3500 mm
    8. Total overfeeding for needle chain (+ 50 %)
    9. Entry with E&L conical regulators KR 40
    10. With photocell FR 1501 feeler group
    11. Jet-star blowers with air circuit circulation
    12. Type: Econ-Air
    13. Possibility to adjust air flow independently upper and below

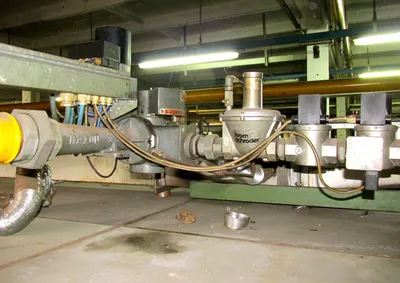

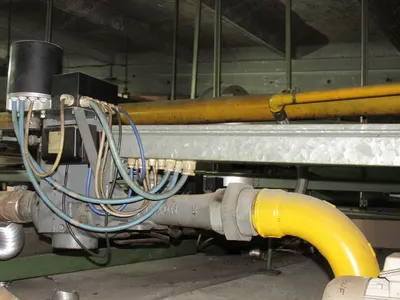

    14. Gas-heating with Maxon burners controlled by Baelz heatsetting

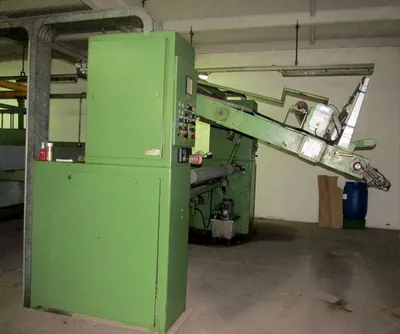

    15. Exit: big roll arm device for fabric output on A-frame trolleys
    16. Speed adjustable from 7.5 to 150 m/min

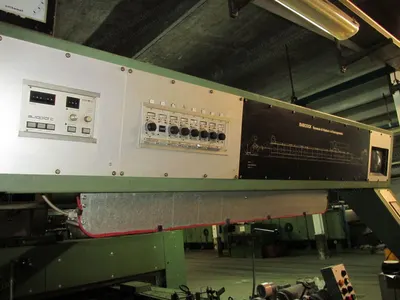

    17. Autopilot C automation device
    18. Pleva moisture control device

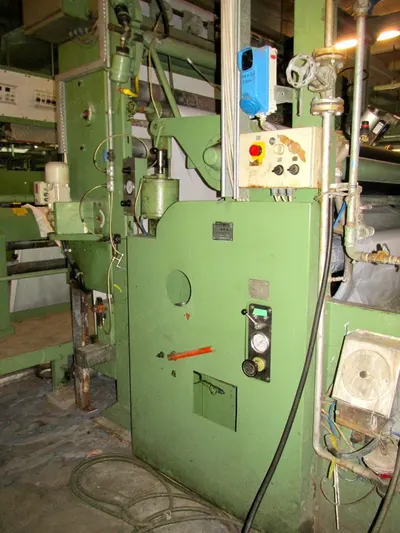

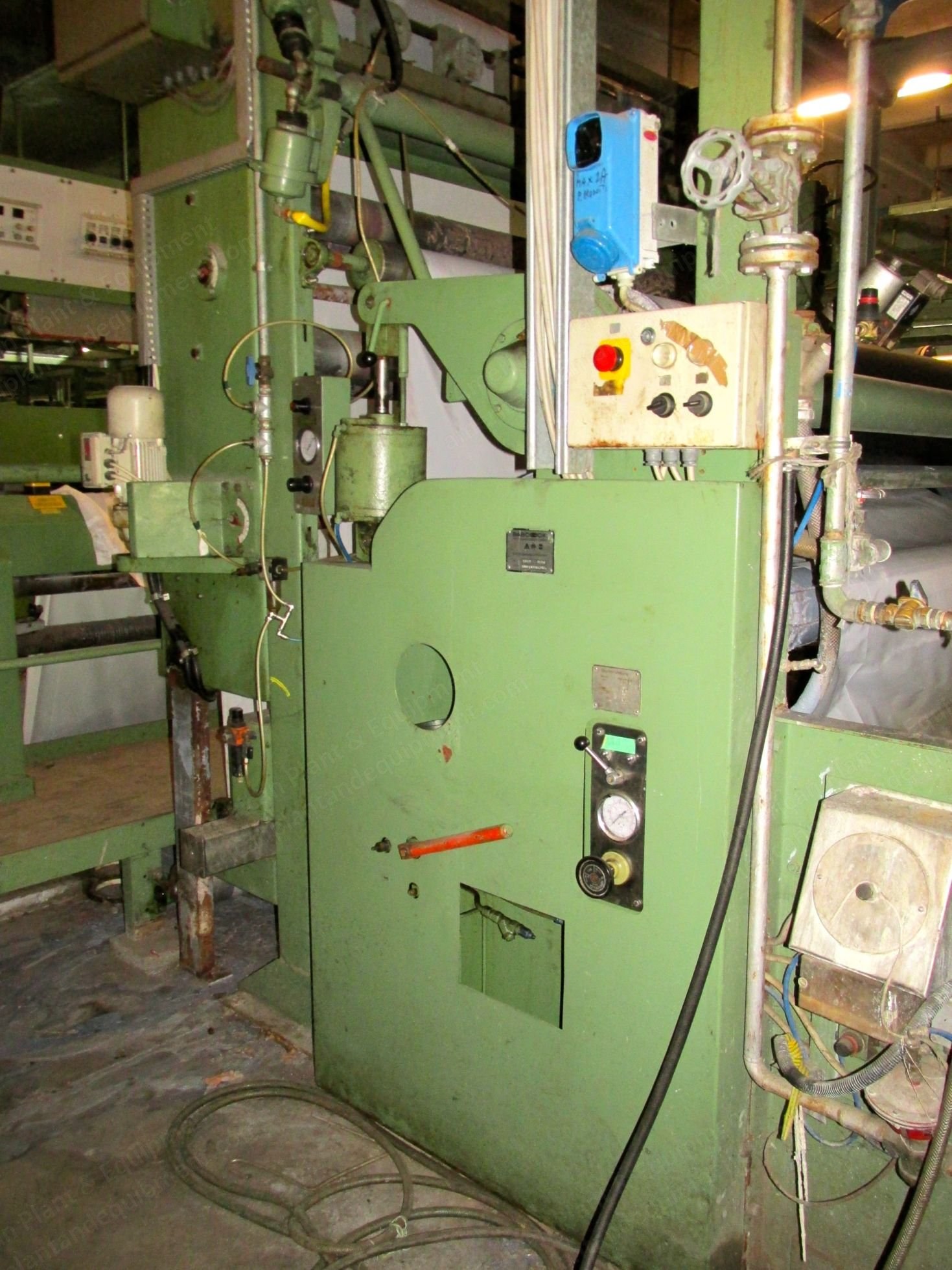

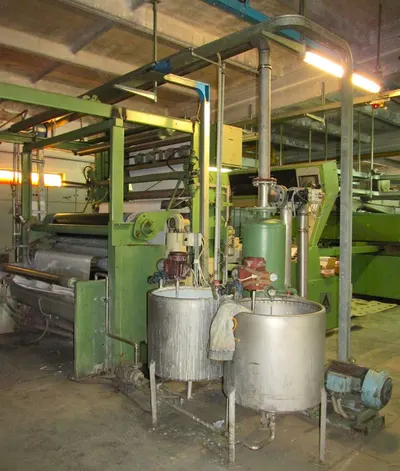

  2. Babcock Impregnating/Squeezing Padder
    1. Type: 5805
    2. 2 cylinders
    3. Roller width: 2000 mm
    4. Working width: 1850 mm
    5. Stainless steel impregnation trough
    6. 2 stainless steel external tanks with mixer
    7. D.C. drive with synchronization
  3. Mahlo Weftstraightener
    1. Type: RFMC
    2. 4 optical heads

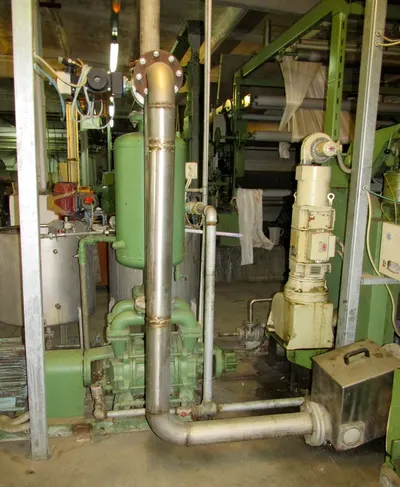

  4. Vacuum Extractor With Filter And Water Recovery
    1. Vacuum pump with 15 kW power
    2. To extract water from delicate fabric bypassing the squeezing padder
