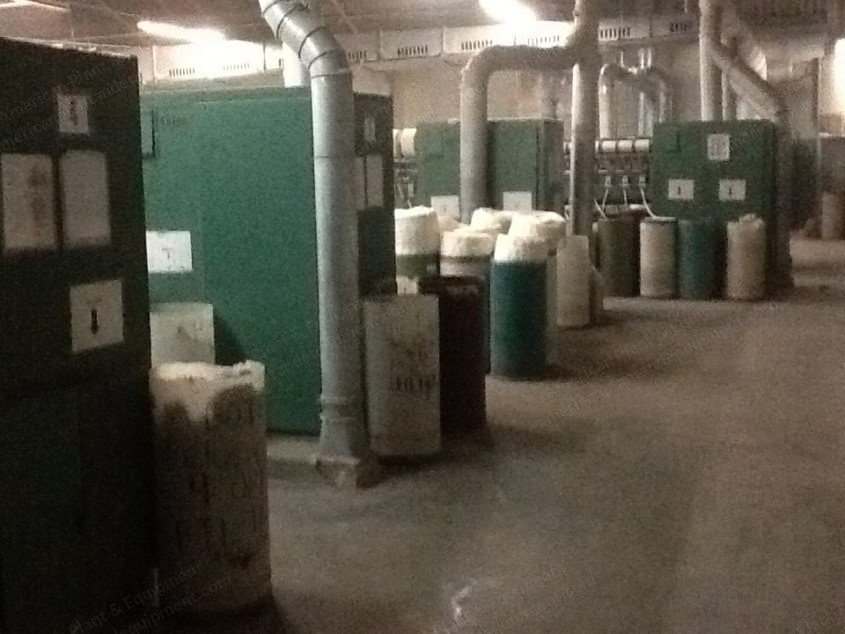

Elitex, BD-SD, 1996, 192 Positions, 440V

Elitex, BD-SD, 1996, 192 Positions, 440V

Description

  1. Overview
    1. Elitex model BD-SD
    2. 192 positions
    3. Year: 1996 to 1998
    4. Working at 95% efficiencies
  2. Machine Dimensions
    1. Machine length: 23040 mm
    2. Pitch of spinning unit: 200 mm
    3. Number of spinning units in one section: 16
    4. Number of machine sections: 12
  3. Bobbin Specifications
    1. Bobbin length: 170 mm
    2. Bobbin diameter out / diameter in: (3) machines 58/54-44 (plined)
    3. Bobbin diameter out / diameter in: (1) machine 58/54
    4. Bobbin diameter out / diameter in: (1) machine 58/50
  4. Rotor Specifications
    1. Rotor diameter: (3) machines 43 mm
    2. Rotor diameter: (1) machine 54 mm
    3. Rotor diameter: (1) machine 66 mm
  5. Processing Components
    1. Combing roller type: OK 61 mixtures
    2. Navel type: R7006 mixtures
  6. Silver Can Specifications
    1. Silver can diameter: 400 mm (16 inches)
    2. Silver can height: 914 mm (36 inches)
  7. Power Requirements
