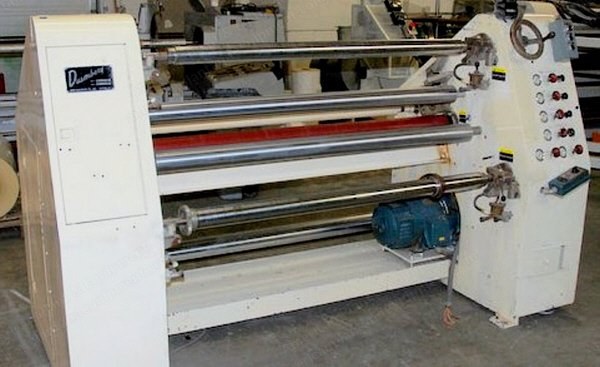

Description Overview Model 635 Width: 76 in Available as either a level 3 or level 4 rebuild Rewind Specifications Maximum rewind diameter of 24 in without lay-on rolls 21 in rewind diameter with lay-on rolls Rewind is slip core differential tension control using spaces between the rewind cores This feature allows different diameter rolls to be wound at the same time Equipped with 4 zone rewind tension control Footage counter will automatically stop the machine at a predetermined footage Web Handling and Slitting Pull rolls and idler rolls are covered with rubberized cork covering for good web traction and no web scratching Slitting is razor in air with a driven support roll Benick can add any method of slitting Drive System Two motor drive: one main and one rewind motor Rewind mandrel slow down control to keep the shafts from overheating at 1000 fpm Unwind Stand Dusenbery model 863 Shaft type with a 3 in air expand unwind shaft Comes with a Fife P-50 edge only automatic edge guide with +/- 3 in travel Unwind is off the machine in case you would require to add either a print station or web perforating unit Unwind tension control is through an air cooled brake Maximum unwind diameter of 40 in Maximum roll weight of 2750 lbs
