Fehrer, V 21 K 12, 1992, Airlay Nonwoven Line, 2200mm Working Width, with Temafa Chute Feeder, Fehrer NL 9 S Needle Loom

Fehrer, V 21 K 12, 1992, Airlay Nonwoven Line, 2200mm Working Width, with Temafa Chute Feeder, Fehrer NL 9 S Needle Loom

Description

  1. Overview
    1. Three separate airlay nonwoven lines are offered: a Fehrer V 21 K 12 line, a Fehrer K 12 random carding machine line, and a Rolando / Fehrer V21/K12 airlay line.
    2. All lines are second-hand and sold as one lot.
  2. Line 1: Fehrer V 21 K 12 Airlay Nonwoven Line
    1. Working width: 2200 mm.
    2. Year of construction: 1992.

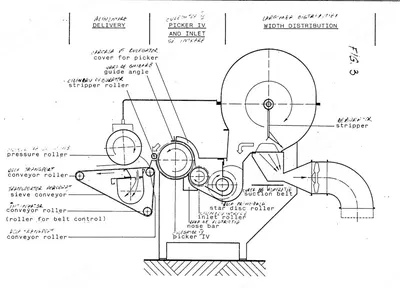

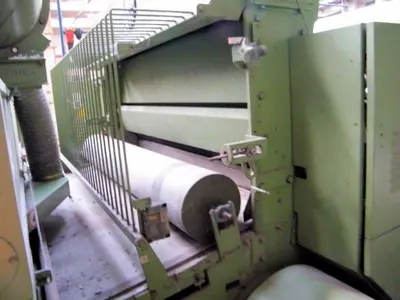

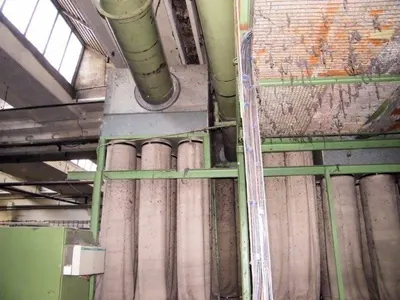

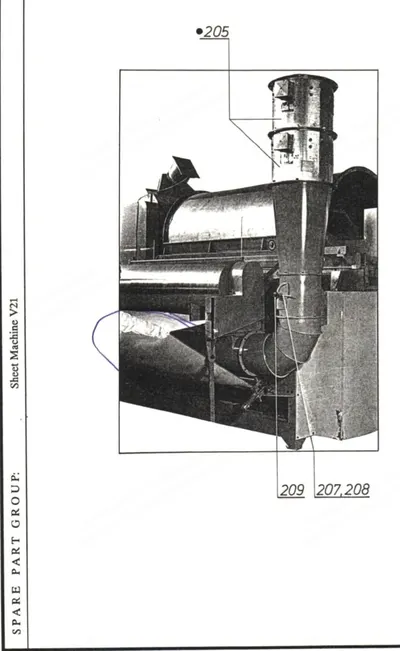

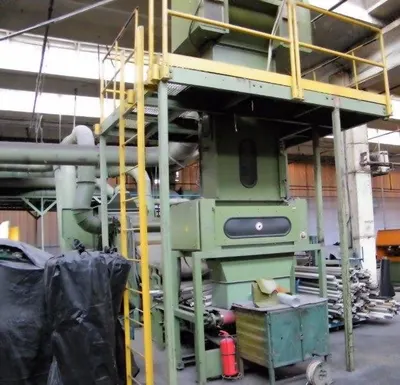

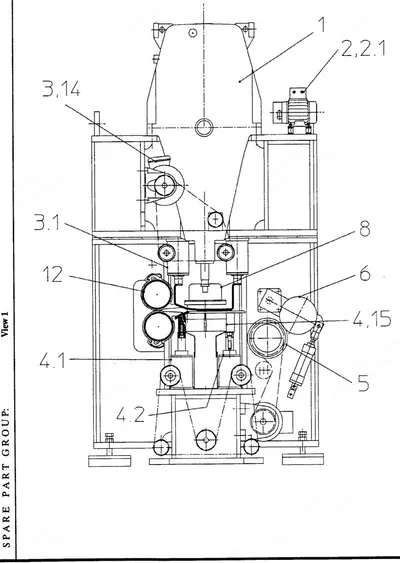

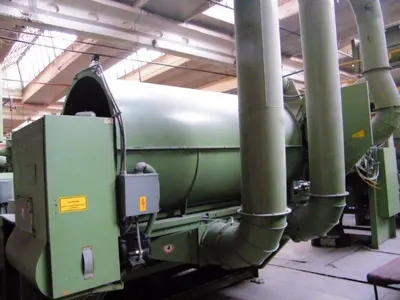

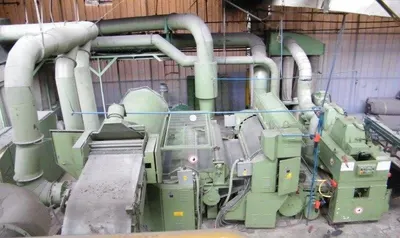

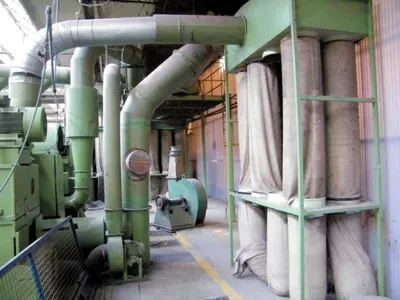

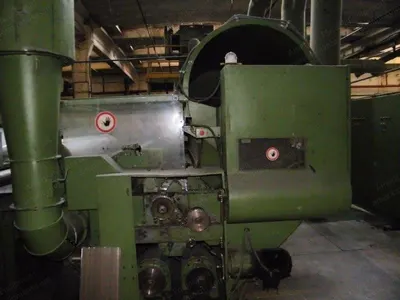

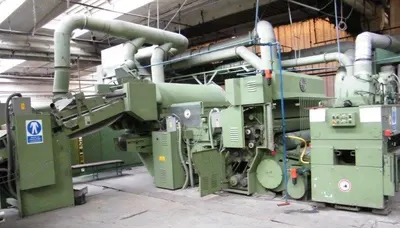

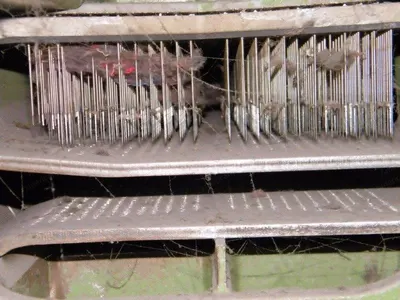

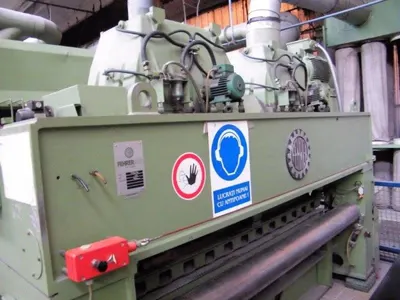

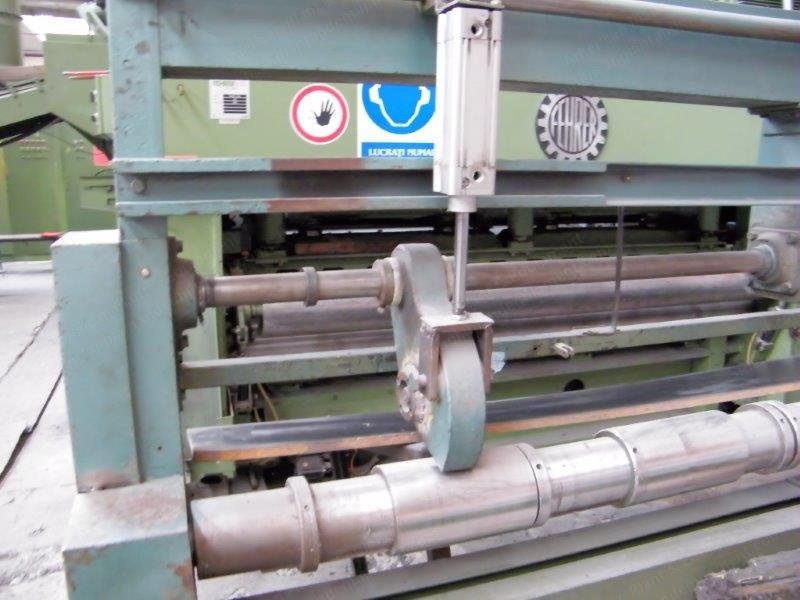

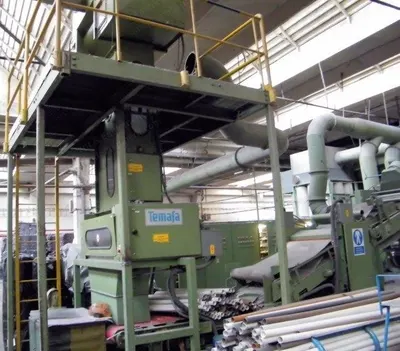

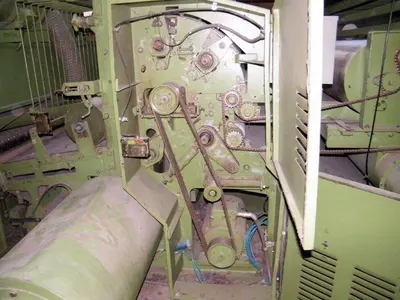

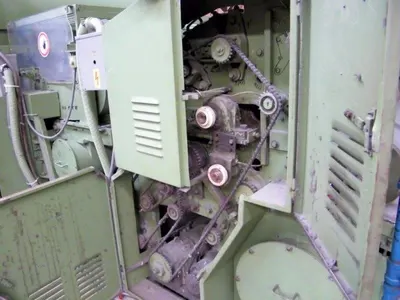

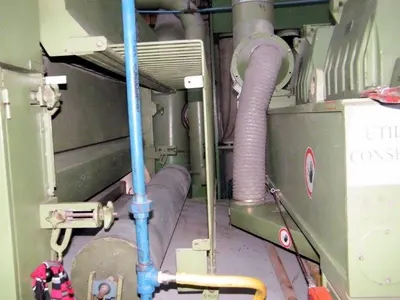

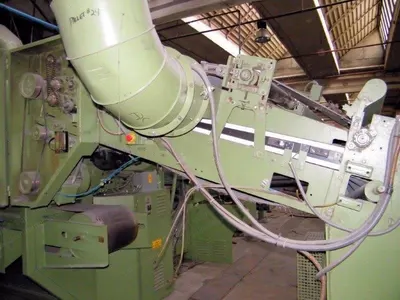

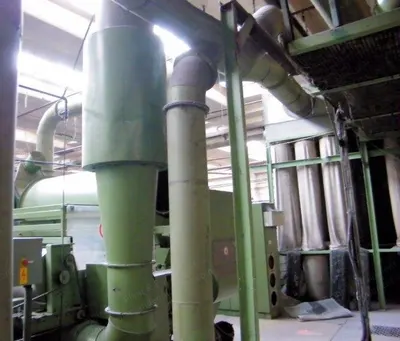

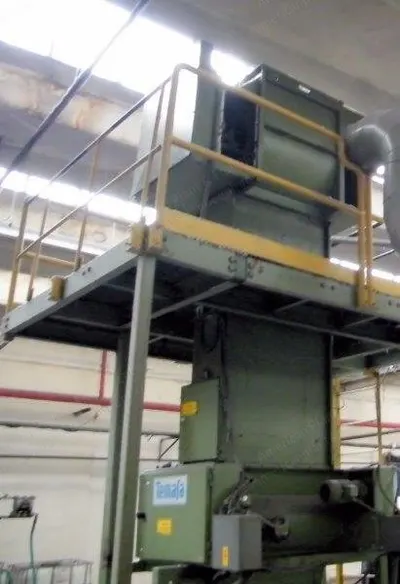

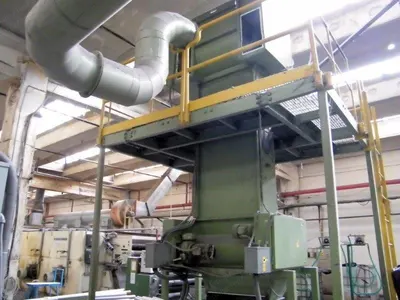

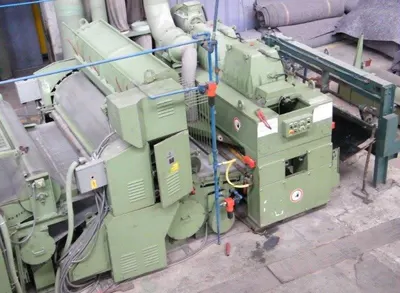

    3. Consists of: chute feeder Temafa with condenser, weighting unit Kukla with continuous belt, feeding unit continuous belt type Fehrer - feeding V 21, web forming unit Fehrer V 21 (2200 mm working width), aerodynamic card Fehrer K 12 (2200 mm working width), needle loom Fehrer NL 9 S (2200 mm working width, single board down stroke machine, 3000 needles/m, max. 1500 strokes/min with outlet rollers), winder with longitudinal cutter (no cross cutter available), and complete dust collection unit.
    4. Suitable for a weight range of approximately 400 to 2000 gr/sqm and a capacity of up to 600 kg/h, depending on fibers.

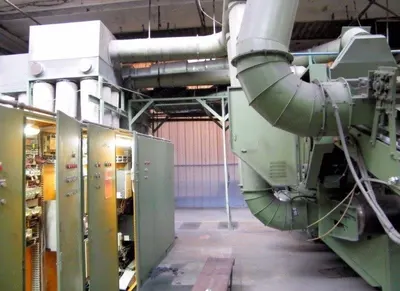

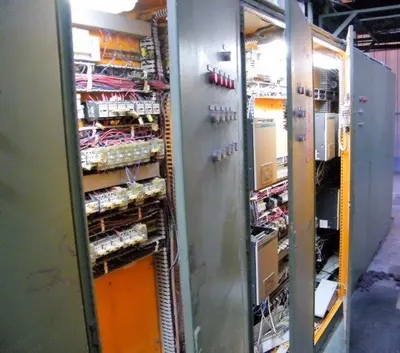

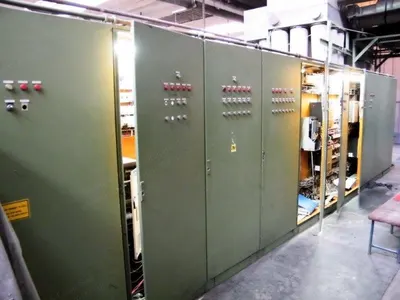

    5. Control panels, filters, etc. are in good condition.
  3. Line 2: Fehrer K 12 Random Carding Machine Line
    1. Reference number: 2133817.
    2. Working width: 2300 mm.
    3. Year of construction: unfortunately not known.
    4. Includes: opening machine K 12, one Asselin needle loom model 169 (stroke height 0-30 mm, 2800 mm working width), one Fehrer needle loom NL 12 (1200 strokes/min, 60 mm stroke height, 2400 mm working width), and cutting and rolling section.
    5. Line consists of K 12 section only; V 21 section is not included.
    6. Previously used for 200 to 2000 gr/sqm (minimum 200 gr/sqm), mainly to produce high quality mattress material in a sqm-range of 300-1200 g/sqm made from jute fibres.
    7. In general, almost all types of fibers can be processed; it is a good machine for natural fibers.
  4. Line 3: Rolando / Fehrer V21/K12 Airlay Line
    1. Reference number: 2226950.
    2. Working width: 4400 mm.
    3. Consists of: hopper feeder Rolando (casting iron), cheminee feeder with automatic regulated feeding Rolando, square meter measuring unit and control system made by Fehrer type E-PW, opener Fehrer V 21 (4400 mm working width), and random carding machine Fehrer K 12 (4400 mm working width).
    4. Has worked on 1000 gr/sqm and up.
  5. Condition
    1. All lines are second-hand.
    2. Control panels, filters, etc. on the Fehrer V 21 K 12 line are in good condition.
  6. Included Items
    1. No oven is included.
