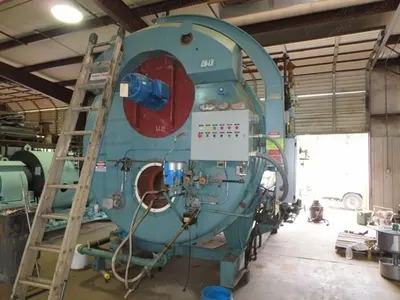

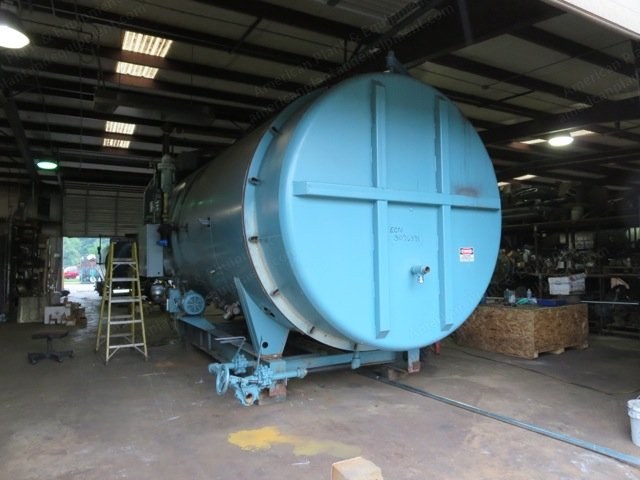

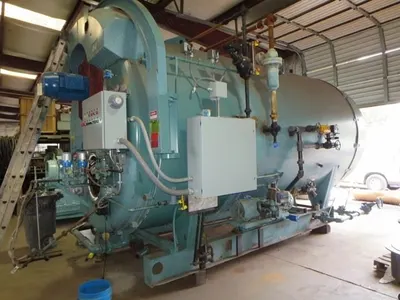

Cleaver-Brooks, 500 HP, 2008, 150 PSI, 4-Pass Dry Back, Gas/Oil Fired

Cleaver-Brooks, 500 HP, 2008, 150 PSI, 4-Pass Dry Back, Gas/Oil Fired

Description

  1. Overview
    1. One 2008 500 HP Cleaver Brooks boiler
    2. 4 pass dry back design
    3. 150 PSI design pressure
    4. Fired by natural gas and No. 2 oil
    5. 30 PPM NOx emissions
  2. Condition and Work Completed
    1. Partially completed
    2. Cleaned on the fireside, waterside, and outside
    3. Hydrostatically tested
    4. Will be painted
    5. Will undergo a final mechanical and electrical check to ensure all systems are functional
    6. Pressure vessel and tubes are guaranteed to be in good condition
    7. Will pass a hydrostatic test at the time of startup
  3. New Parts Installed
    1. New Cleaver Brooks OEM fan
    2. New Cleaver Brooks OEM motor
    3. New flue gas recirculation damper
    4. Miscellaneous OEM parts to meet 30 PPM NOx emissions
    5. New Honeywell 7800L Flame Safeguard Controls
    6. New Honeywell high limit with manual reset
    7. New Honeywell operating limit steam pressure control
    8. New Honeywell modulating limit steam pressure control

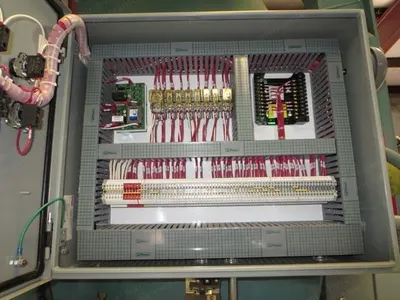

    9. New control and electrical panels
    10. All new wiring
  4. Controls and Configuration
    1. Presently configured for pneumatic modulating feed water control
    2. Can be changed to ON/OFF controls if required
  5. Warranty
    1. One year parts replacement warranty on controls
