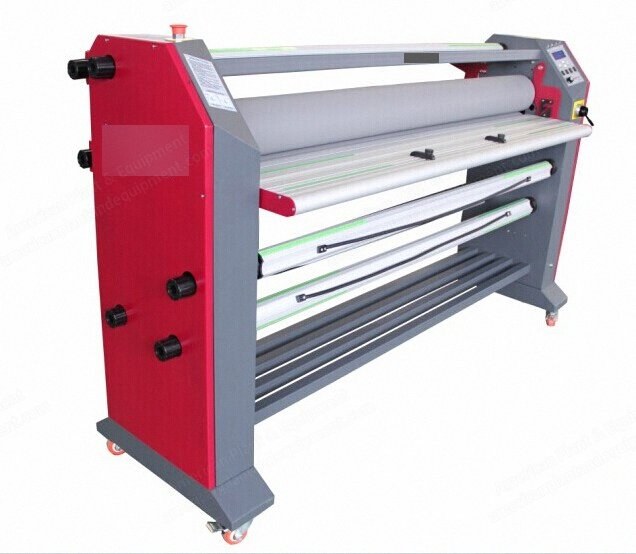

Description Overview Automatic multifunctional pneumatic heat press laminator Model: LC103 (double-sided) Specifications Max width: 1600 mm Max thickness: 25 mm Speed: 0 to 8 m/min Temperature range: room temp to 120 °C Lifting way: pneumatic/by air Heating way: infrared heating Preheating time: 10 to 15 min Rated input power: 4100 W Power: 0.9 to 1.8 kW/h Rated input voltage: 110/220 V Weight: 296/256 kg Packing size: 2150 x 800 x 1370 mm Components 90 W retarding moment motor Turn-over aluminium alloy front working platform 150 mm-diameter high-temperature resisting silica gel upper-roller 150 mm-diameter anti-adhesive silica gel lower-roller Automatic product rolling structure Crinkle-resistant and anti-slided paper advancing structure (initiative) Unilateral balanced voltage controlled hand wheel Non-contact infrared temp-measuring system Pedal switch
