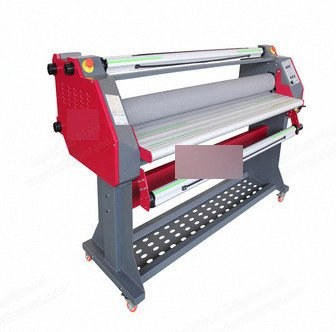

NovaStar, LC108, Width 1600mm, Max Thickness 25mm, Speed 0-8m/min, Infrared Heating (New)

NovaStar, LC108, Width 1600mm, Max Thickness 25mm, Speed 0-8m/min, Infrared Heating

Description

  1. Overview
    1. Automatic laminating machine / vinyl laminating machine
    2. Model: LC108
    3. Width: 1600 mm
    4. Max thickness: 25 mm
    5. Speed: 0 to 8 m/min
    6. Temperature range: room temp to 120 °C
    7. Lifting way: pneumatic
    8. Heating way: infrared heating
    9. Preheating time: 5 to 10 min
  2. Specifications
    1. Rated input power: 2200 W
    2. Power: 0.8 to 1 kW/h
    3. Rated input voltage: 110/220 V
    4. Weight: 225/265 kg
    5. Packing size: 2150 x 800 x 740 mm
    6. 60 W retarding moment motor
  3. Included Components
    1. Turn-over aluminium alloy front working platform
    2. 130 mm-diameter high-temperature resisting silica gel upper-roller
    3. 110 mm-diameter anti-adhesive silica gel lower-roller
    4. Automatic product rolling structure
    5. Crinkle-resistant and anti-slided paper advancing structure (initiative)
    6. Unilateral balanced voltage controlled hand wheel
    7. Non-contact infrared temp-measuring system
    8. Pedal switch
