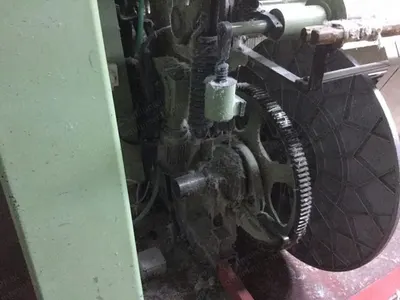

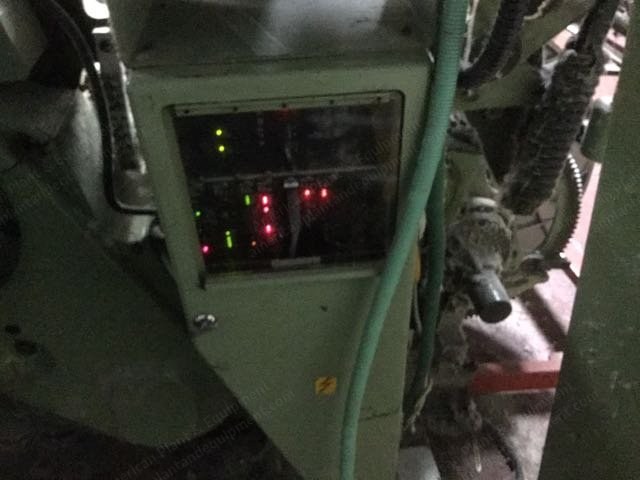

Sulzer Ruti, P7100 B390 F4 EP J D1, 1992, 3900mm Working Width, Staubli Electronic Jacquard, 4 Colors

Sulzer Ruti, P7100 B390 F4 EP J D1, 1992, 3900mm Working Width, Staubli Electronic Jacquard, 4 Colors Sold

Description

  1. Overview
    1. Sulzer Ruti projectile terry weaving machine
    2. Model: P7100 B390 F4 EP J D1
    3. Working width: 3900 mm
    4. Year: 1992
    5. 4 colors installed
    6. Split beam execution
    7. Side tuckers only; no center tuckers included (offered separately)
  2. Specifications

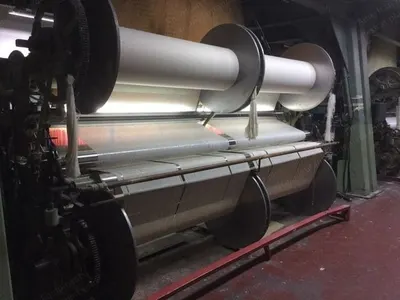

    1. Bottom ground warp beam: 940 mm flange diameter
    2. Top pile warp beam: 940 mm flange diameter
    3. 3 bottom ground warp beams
    4. 3 top pile warp beams
    5. 3 filling feeders
    6. 1 feeder stand
    7. 1 yarn creel
    8. 1 warp stop motion with droppers as fitted
    9. 1 lietty gantry
    10. 1 jacquard harness
  3. Jacquard
    1. Staubli electronic jacquard heads
    2. Year: 2008
    3. Model: LX-1602, 3072 hook capable
    4. JC6 controller
