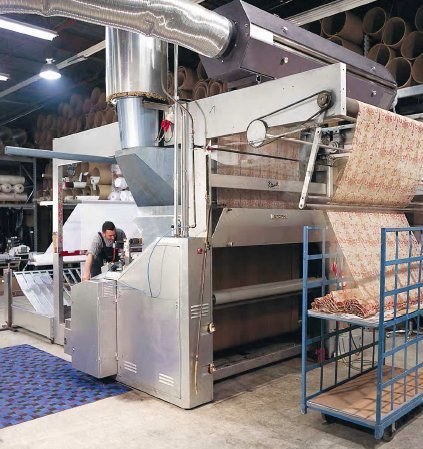

Description Overview Stork TC 131 thermo-oil heat transfer machine Used for the heat transfer of designs from heat-transfer paper to a large variety of textiles Year: 1980 Specifications Material width: 1800 mm Textile width (max): 1800 mm / 71 inches Diameter textile roll (max): 300 mm / 12 inches Transfer paper width (max): 1820 mm / 71.7 inches Machine speed (min): 2 m / 2.2 yards per minute Machine speed (max): 7 m / 7.6 yards per minute Heated drum temperature (max): 240 °C / 464 °F Electrical connection: 380 V, 3 ph, 50 Hz Thermo-oil total capacity: 400 litres / 104 gallons (US) Dimensions and Weight Calender dimension – length: 2115 mm / 83 inches Calender dimension – width: 2860 mm / 112.7 inches Calender dimension – height: 2105 mm / 83 inches Weight of equipment: 4000 kgs / 8800 pounds
