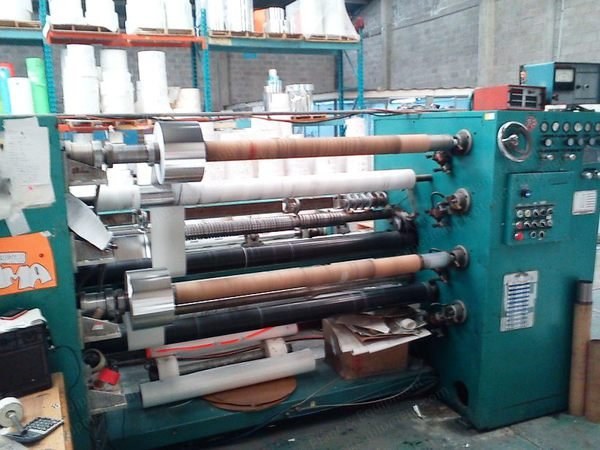

Dusenbery, 865, Duplex Slitter Rewinder, 62" Width, 4 Rewind Shafts

Dusenbery, 865, Duplex Slitter Rewinder, 62" Width, 4 Rewind Shafts

Description

  1. Overview
    1. Dusenbery duplex slitter rewinder
    2. Width: 62"
    3. Model: 865
  2. Rewind Specifications
    1. Four rewind shafts
    2. While rewinding on two shafts, you can unload the second set of rewind shafts while the machine is still running
    3. Maximum rewind diameter when running four shafts: 16"
    4. Two shafts can be removed for running rewind diameter: 24"
    5. Currently the machine has one set (4) of 3" od rewind shafts
  3. Slitting
    1. Slitting is shear cutting with individual male knife holders
  4. Unwind Stand
    1. Dusenbery model 863 shaft type unwind stand
    2. Equipped with a model 61 automatic unwind tension control system tied to a Wichita pneumatic air cooled converter brake
    3. Automatic edge guiding with a Fife P-50 edge only system
    4. Maximum unwind diameter is 40" and a 3" unwind shaft is included
    5. Dusenbery's baggie edge control is included on the unwind
