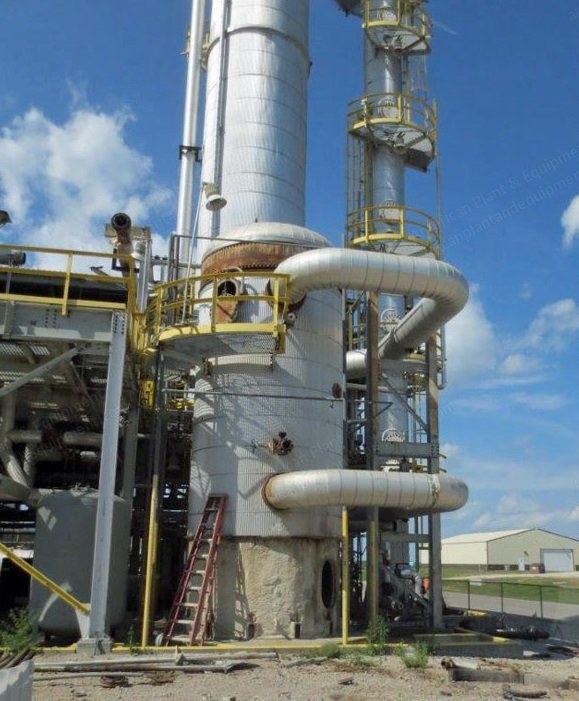

DWE, 3116-EA-505-5B, 1985, Column Reboiler, 10567 Gallons, Carbon Steel Shell, 1888 SS304 Tubes

DWE, 3116-EA-505-5B, 1985, Column Reboiler, 10567 Gallons, Carbon Steel Shell, 1888 SS304 Tubes

Description

  1. Overview

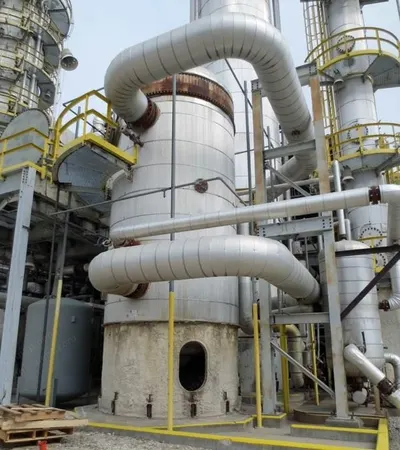

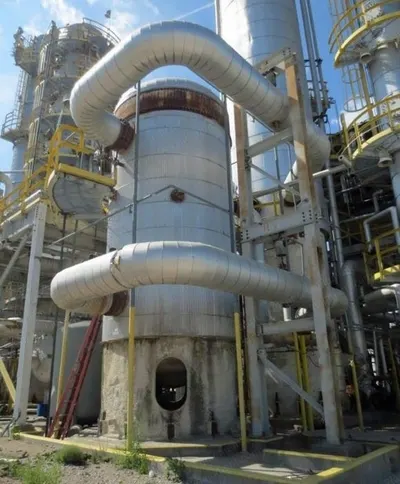

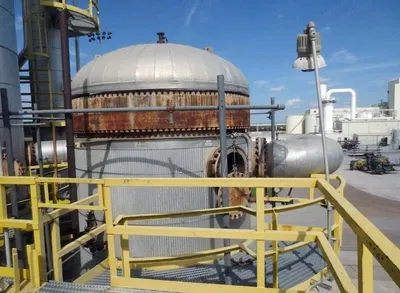

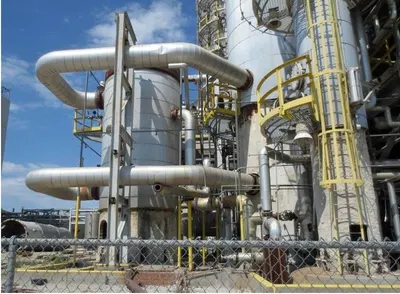

    1. Column reboiler
    2. Manufacturer: DWE
    3. Model: 3116-EA-505-5B
    4. Year: 1985
    5. Was last used as a dehy column reboiler distillation
  2. Specifications
    1. Capacity: 10,567 gallons
    2. Carbon steel shell

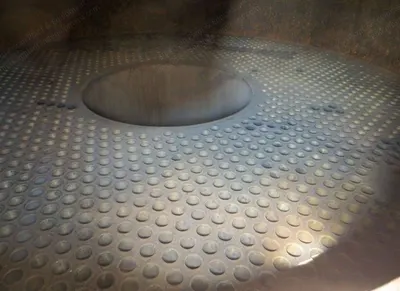

    3. With 1,888 SS304 tubes

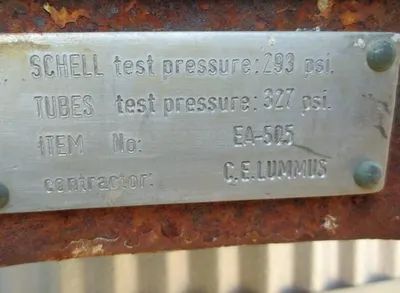

    4. ASME national board 171
    5. Mawp shell: 195 psi @ 410°F
    6. Tubes: 217 psi at 350°F
    7. Capacity shell: 3,117 gallons
    8. Size is approximately 3,180 mm diameter x 9,062 mm OAH
    9. Wall thickness: 27 mm (1 inch)
    10. Heat transfer area: 1,412 sq. ft
  3. Condition
    1. Weight empty/dry is 95,681 pounds overall
    2. SS tubes and tube sheets are 15,100 pounds of that overall weight
    3. Shipping dimensions are 11'-10" wide x 11'8" tall x 29'-8" long
    4. Weight: 100,465 pounds
