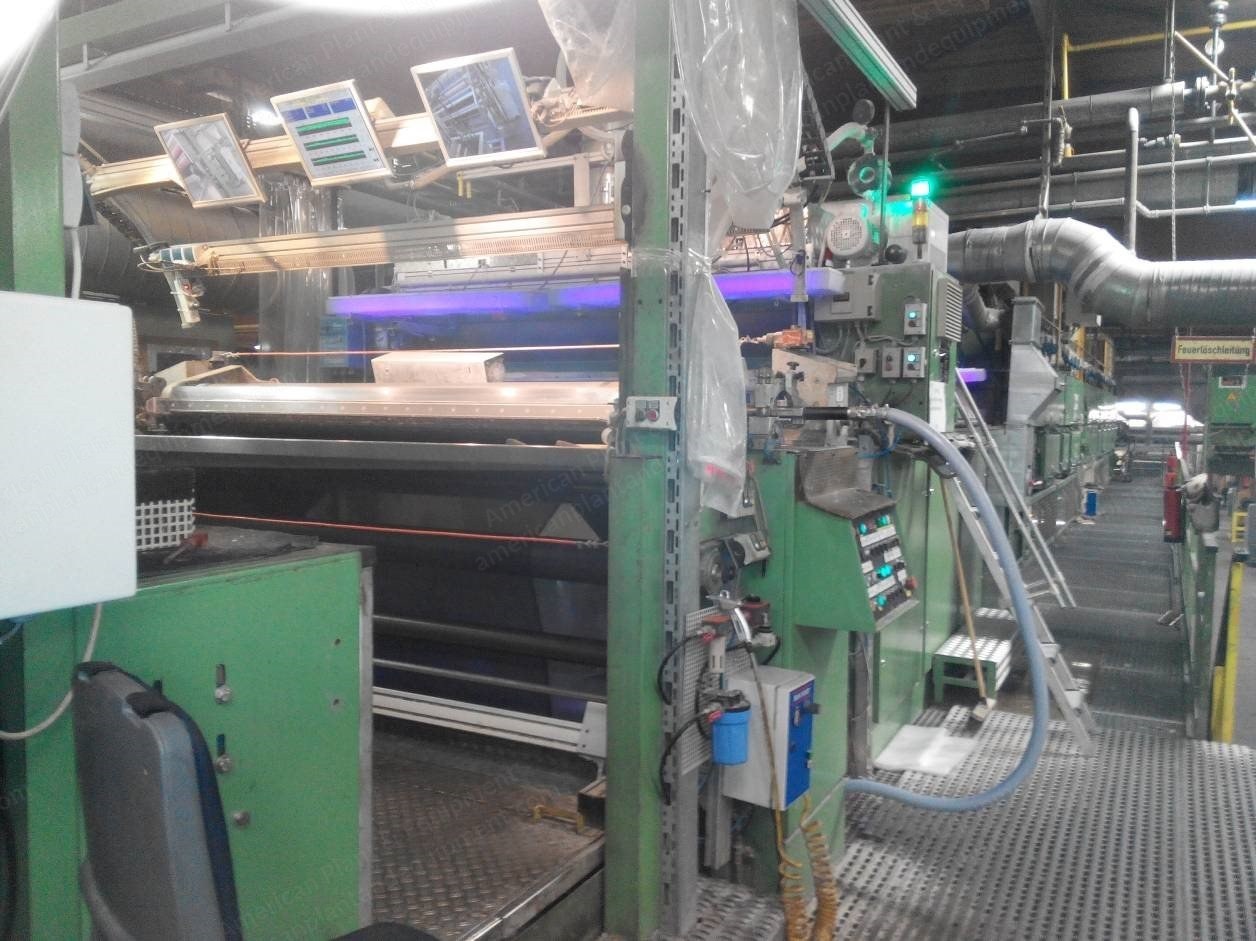

Caratsch, Double Dot Coating Machine, 1978, 2000mm Working Width, Zimmer Paste Dot Coating Line, 15m Oven

Caratsch, Double Dot Coating Machine, 1978, 2000mm Working Width, Zimmer Paste Dot Coating Line, 15m Oven

Description

  1. Overview
    1. Caratsch double dot coating machine
    2. Year: 1978, continuously modernized with latest modernization in 2010
    3. Consisting of center winder
    4. Enema dancers
    5. Surfaces weight measuring system, make Betacontrol
  2. Paste Dot Coating Line
    1. Make: Zimme-r
    2. Type: Paste dot coating line magnetic blade system Magnoroll
    3. Year: 1990
    4. Total furnace chamber: 64 m³
    5. Oven temperature: max. 200 °C
    6. Furnace length: 15 m
    7. Fresh air exchange: 4.6 x / min
    8. Exhaust air volume of 14000 Nm³ / hr
    9. Heating medium gas
    10. Exhaust piping
    11. Infrared heating
    12. 2x 42.75 = 85.5 kW
    13. Mechanical velocity 6 - 80 m / min
    14. Web width 2000 mm
  3. Control and Additional Equipment
    1. Control make Gefiss
    2. 2 center winder
    3. Cooling tower make Schaetti
    4. Samples punching device make Mahlo, type Samplecut FSC 12
    5. Online viscosity measurement make Prorheo, year 2012
