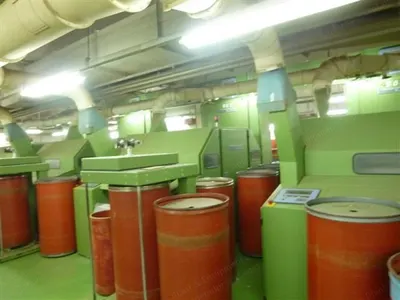

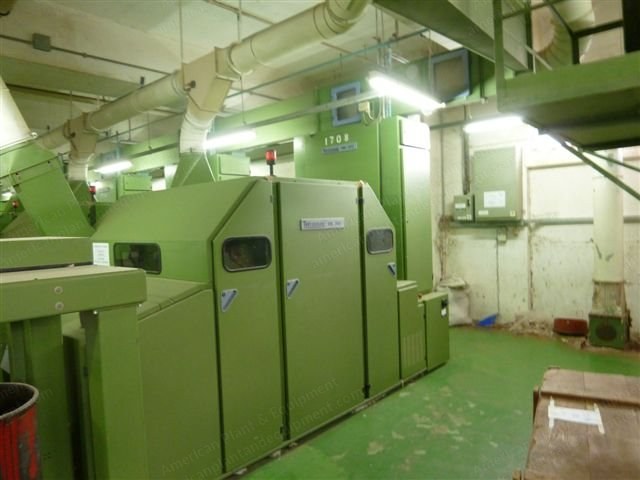

Description Overview Trutzschler DK760 high-production card Year: 1995 Sliver can size: 30 inches diameter x 48 inches height System Components Tuft feeder FBK-533 Double chute system for the utmost regularity Closed air circulation Continuous material flow due to drive control Auto-leveling system in line with the card sliver regulation concept High-production card DK760 New web doffing for carding with virtually no sliver breaks With Trutzschler webclean system High-speed coiler KH Universally applicable Designed for 300 meters/min Precise depositing of the sliver for trouble-free operation at the draw frames Features Extremely low maintenance Perfected suction system for consistently good cleaning Low maintenance flat drive Aluminum flat bars Short and long-term levelling for total conformance to nominal count Reduction in amount of seed coat fragments Quick adjustment of the amount of waste extracted Maintenance-free AC servo drives for optimum sliver regularity No waste deposits in the area underneath the card Microcomputer control for quality and production data management Electronic braking of the cylinder Technical Specifications Yarn to be carded: cotton 100% Inner frame width: 1055 mm Feed roll diameter: 100 mm Taker-in diameter / rotation speed: 250 mm / 600 to 240 rpm Cylinder diameter / rotation speed: 1290 mm / 260 to 600 rpm Doffer diameter / rotation speed: 700 mm / 0 to 96 rpm Flat speed: 80 to 360 mm/min Travel direction opposite to direction of cylinder rotation Included Spare Parts Graf carding cloth Trutzschler carding cloth Toothed belts V-shaped belts Flat tops Bearings Card cloth replacement set Flat tops wire replacement set, knife, cover, springs, etc.
